ENGINE
CS-600
63

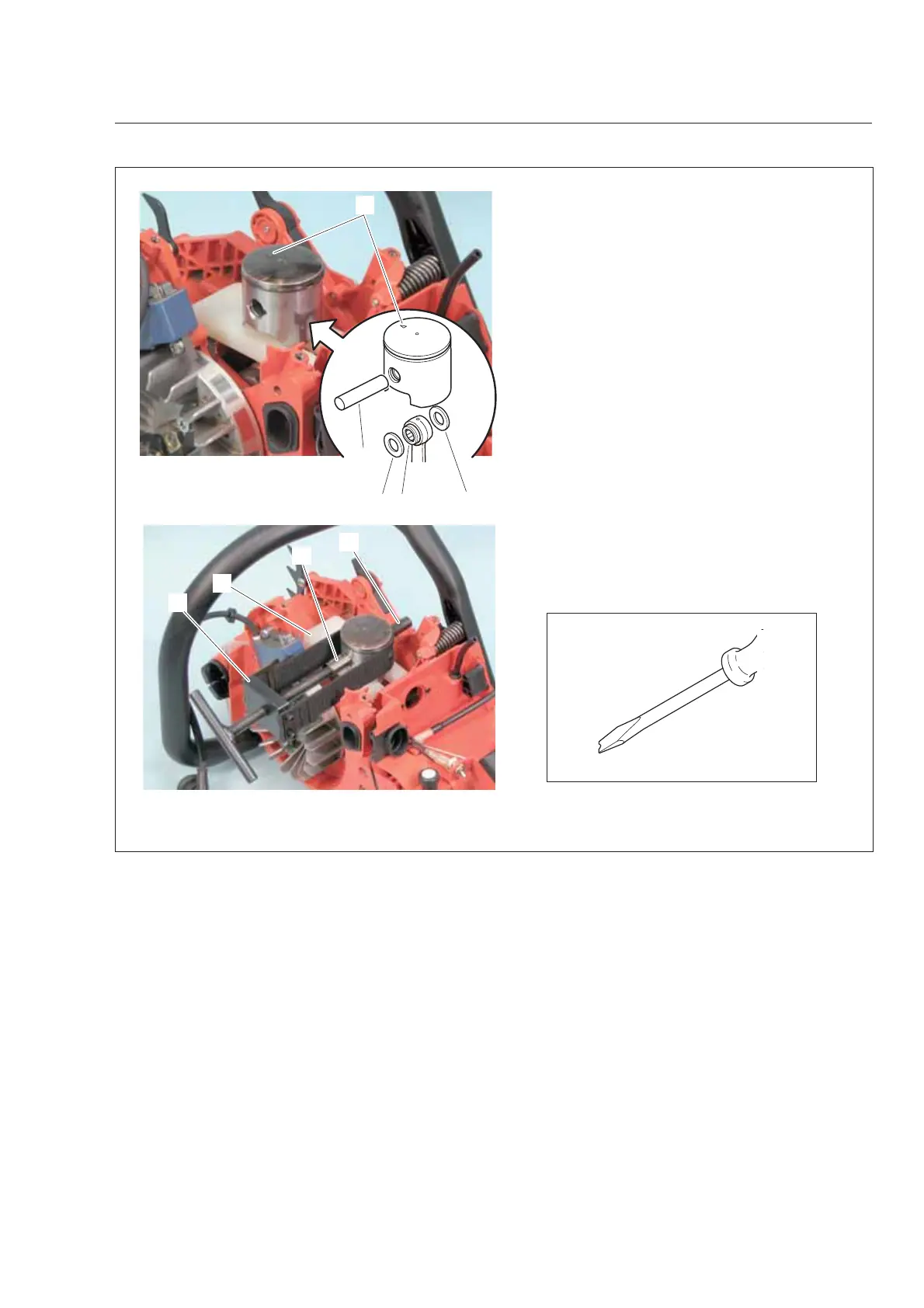

8-11 Installing piston
1. Place piston over the small end of connecting
rod, so that the arrow mark (A) on piston points
front as shown.
2. Insert piston pin guide (B) stamped “11”, through
piston, washers (C) and needle bearing (D) in con-
necting rod as shown.
NOTE:
Piston pin guide (B) is included in Piston
pin tool 897702-30131.
3. Insert piston pin (E) in piston pushing out piston
pin guide (B) using Piston pin tool 897702-30131
(G) and Piston holder 897719-02830 (F).
4. Install new snap rings to piston using small
screwdriver and be sure that they are correctly
seated in the grooves.
NOTE:
If it is hard to install snap rings, modify
screwdriver end as shown to hook snap ring.
A
CD
C
B
B
F
G
E
To Next Page
