SAW CHAIN LUBRICATION SYSTEM
CS-600
51

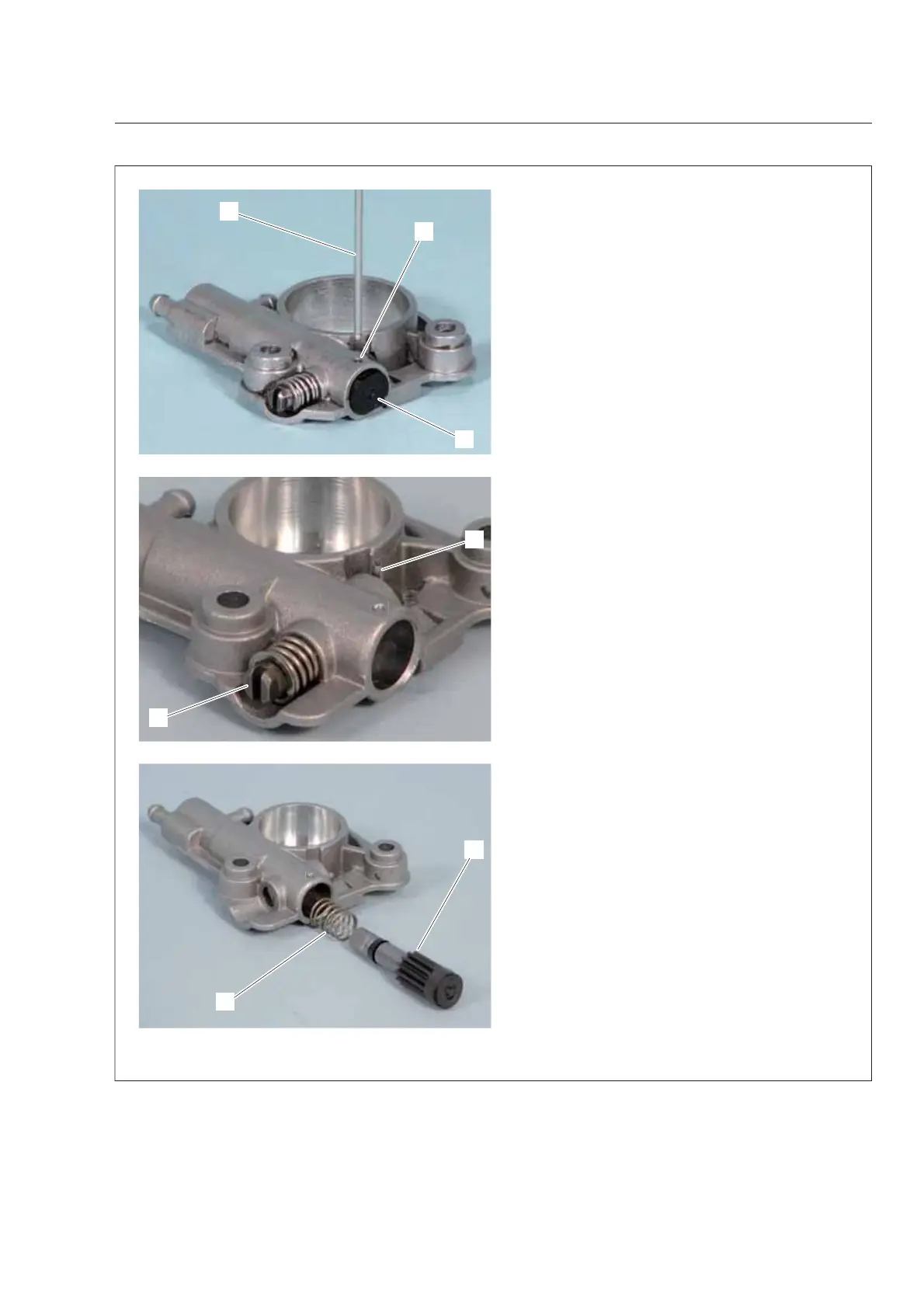

7-5 Disassembling auto-oiler assembly
1. Remove auto-oiler assembly from the unit.
2. Using a tool of approx. 1.5 mm (0.06 in) dia. (A),
push side wall of plug (B) through hole (C) to re-
move plug.
NOTE:
Plug may suddenly spring out of auto-oiler
assembly body.
3. Pull out spring pin (D) from adjuster needle (E)
with pliers.
4. Pull out adjuster needle (E) from auto-oiler body.
5. Remove plunger (F) and spring (G).
6. Check plunger if worn or broken, and spring if
fatigued or broken.
D
E
A
B
C
F
G
