GUIDE BAR MOUNTING SYSTEM
CS-600
71

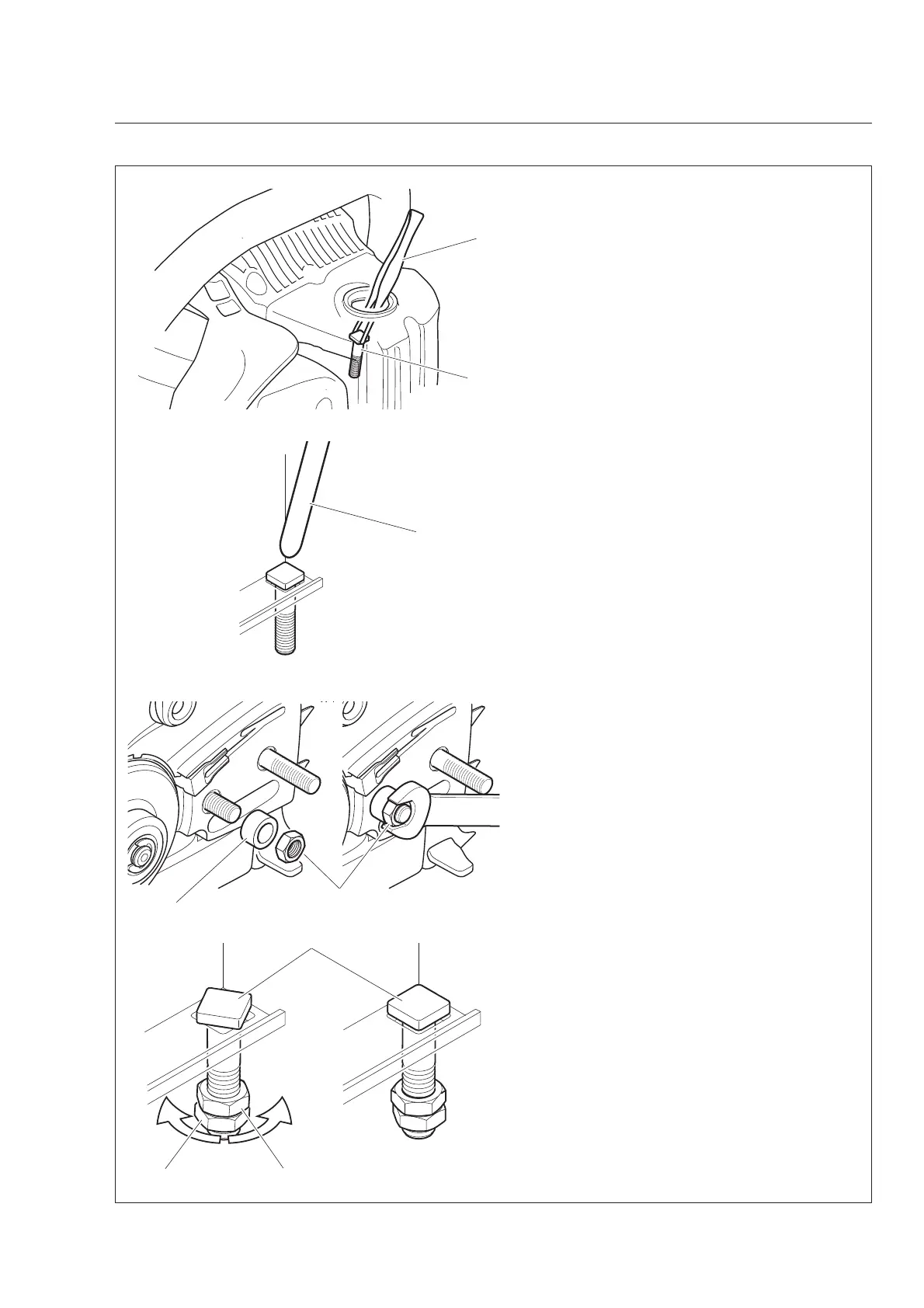

10-3 Installing guide bar stud
1. Apply adhesive (Loctite #609, ThreeBond 1373
or equivalent) to un-threaded part (A) of new guide
bar stud.
2. Install new stud to the stud-hole of oil tank using
a pair of tweezers (B).
3. Lightly tap square head of stud with long bar tool
(C) and hammer.
4. Install spacer [Bore: 8 to 10 mm (0.32 to 0.39
in), Height: 10 to 12 mm (0.39 to 0.47 in)] (D).
Thread M8 nut (E) clockwise onto stud. Turn nut
clockwise to pull stud through oil tank mounting
hole. The square head of the stud should seat
against the oil tank wall parallel with inner ribs.
5. Look into oil tank and check if square head (F)
of the stud is properly seated inside crankcase. If
not, install two nuts to the stud and secure them
against each other.
6. Turn nut (G) clockwise or nut (H) anticlockwise
to correct the position of the square head.
7. Repeat step 4 to seat the stud correctly in
square hollow inside oil tank.
8. Install all removed parts.
A
B
F
G
H
D
E
C
