8-5 Inspecting cylinder
1. Remove carburettor from the unit (Refer to “4-5
Replacing fuel line”).
2. Remove collar (A; metal) from intake bellows (B).
3. Remove muffl er with muffl er gasket (Refer to “8-3
Inspecting muffl er and exhaust port”).

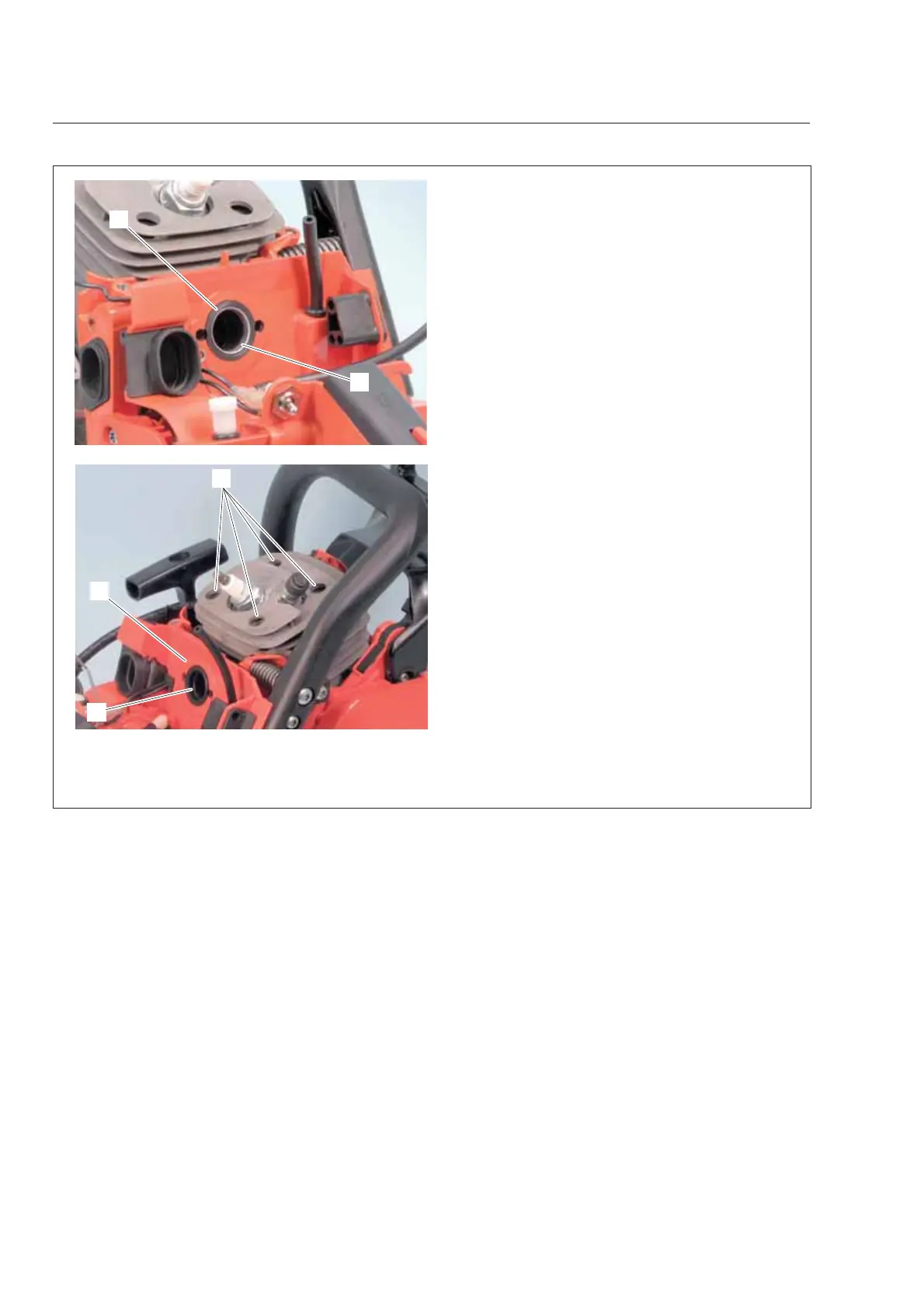

4. Remove 4 bolts from cylinder base through
holes (C).
5. Pull out cylinder upward, pushing intake bellows
(B) through the wall (D).
6. Inspect cylinder combustion chamber and clean
with a plastic or wooden scraper if carbon is found.
NOTE:
Do not use metal tools, or damage to cylin-
der wall may result.
7. Inspect cylinder wall and replace with new one if
plating is worn, peeled away, scored or exposing
cylinder base metal.
C
D
A
B
B
