4-7 Air shutter
When it is cold weather and acceleration is poor,
release air shutter.

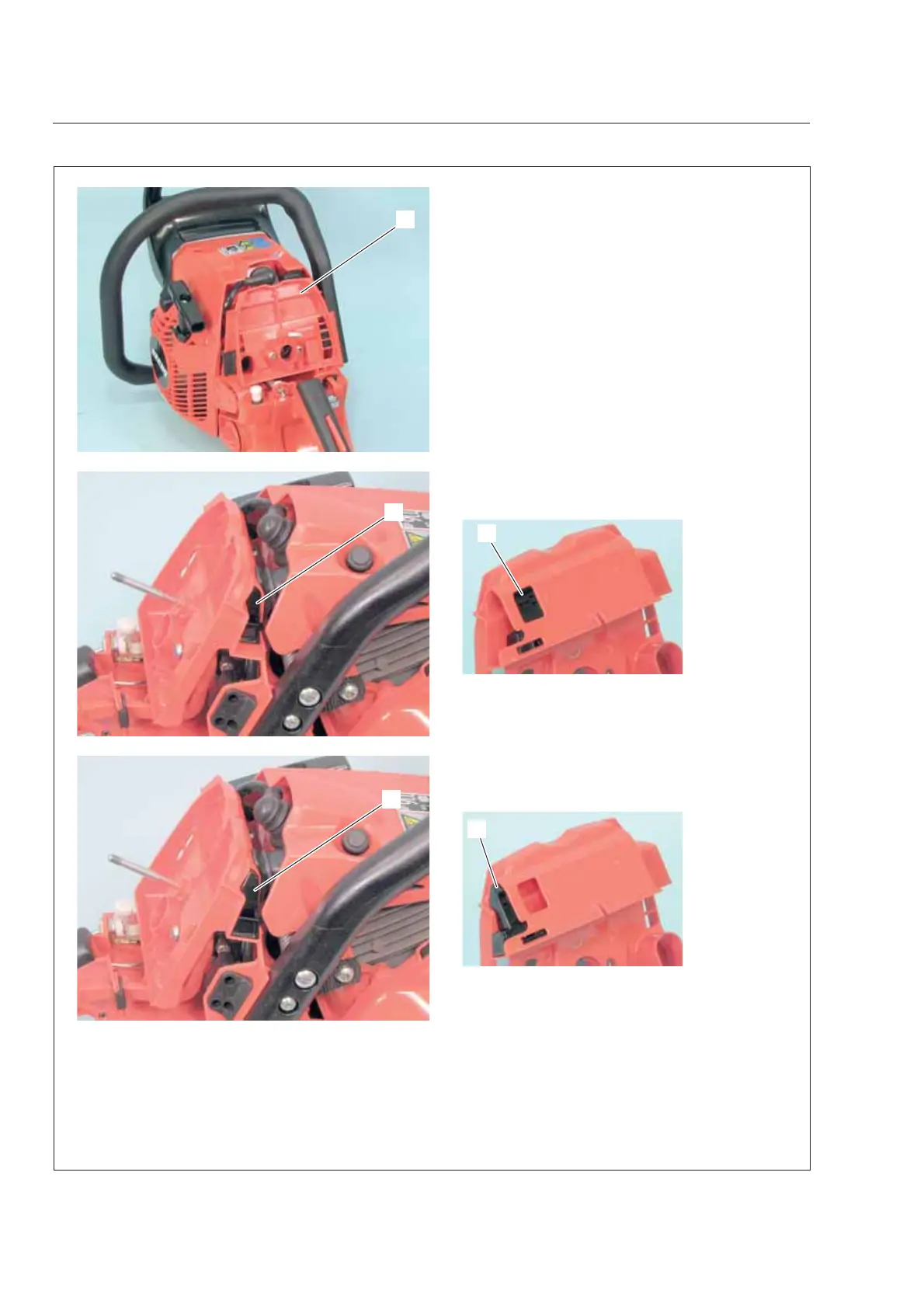

1. Air shutter is located in cleaner case (A).
2. Picture shows normal position of air shutter (B).
rear view
3. Slide air shutter (B) to open air duct and intro-
duce warm air from cylinder side to carburettor
box.
rear view
NOTE:
In order to avoid carburettor vapor lock,
return air shutter to normal position when tempera-
ture is above freezing.
