The 24h display is divided into three time ranges of 8 hours each that can be displayed alternating between
0:00 to 7:00, 8:00 to 15:00 and 16:00 to 23:00 using the buttons on the bottom left edge of the screen. The 8:00
to 15:00 time range is the default while the other time ranges are zoomed out. Tap any of the corresponding
buttons to zoom in to the time range.
4 Menu 4 - Configuration System
All entries are limited to plausible values; incorrect entries are prevented or marked red if necessary and any
saving is not possible. The desired configuration can be saved using the "Save" button if the input is plausible.
Any response is then only displayed if saving is not possible.
The submenu for configuration of the system is called using this button. All E*LDS components of
the system can be configured in the submenus.

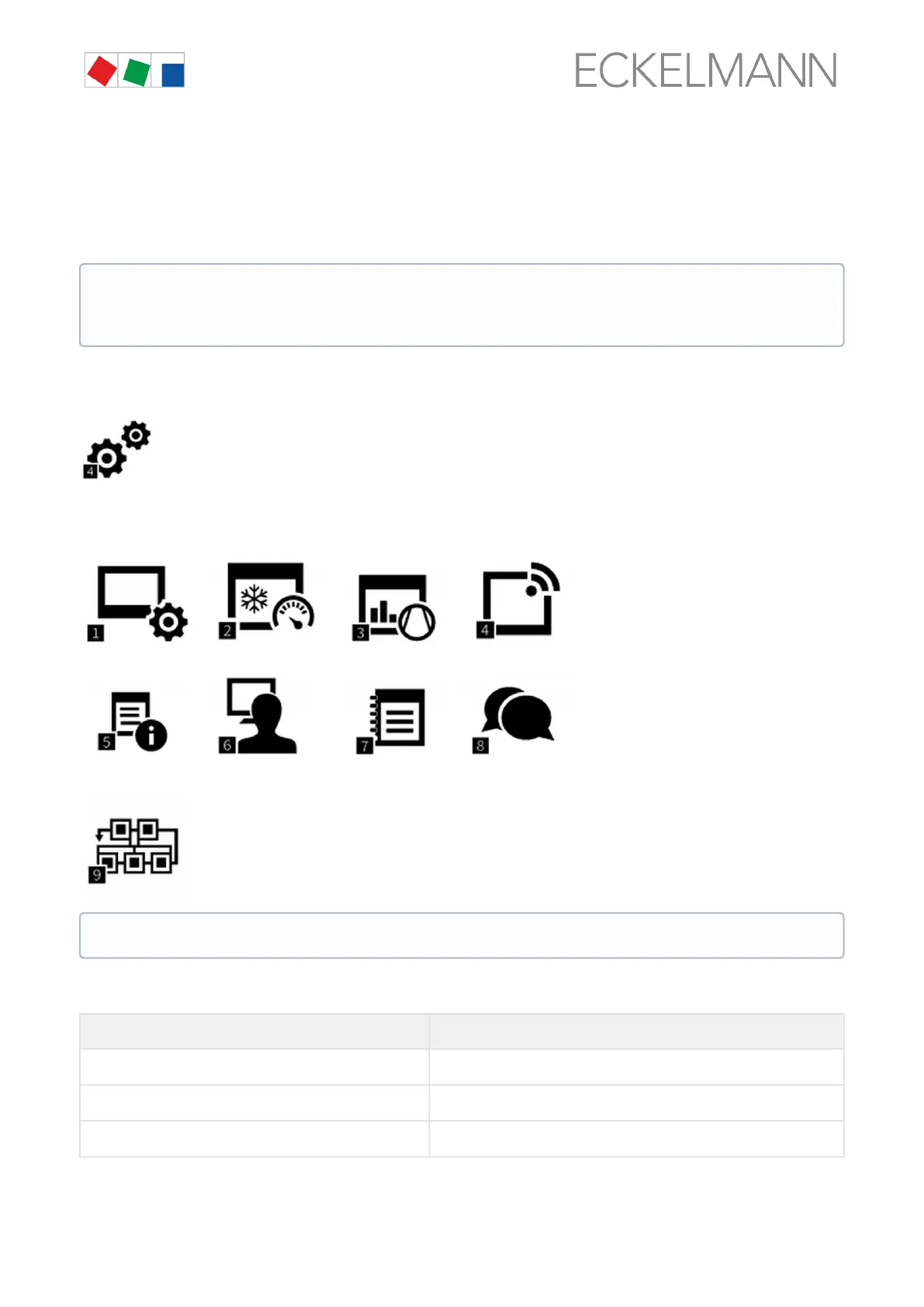

The submenu contains the following buttons, here the buttons 1..8 in the first menu screen:
Button 9 in the second menu screen:
Brief description of the buttons
4 - Configuration System
1 System centre Configuration of the system centre
2 Case controllers Configuration of all case controllers
3 Pack controllers Configuration of all pack controllers
Calling this submenu is only possible if the user has the necessary user rights for it. Otherwise, the
"Configuration" button is greyed out. Further information is contained in the chapter Login to the
system centre (unlocking) .
The two views can be alternated by swiping left / right or by tapping the left / right buttons.
