10.4 Controls and Indicators
10.4.1 Electrical Switches

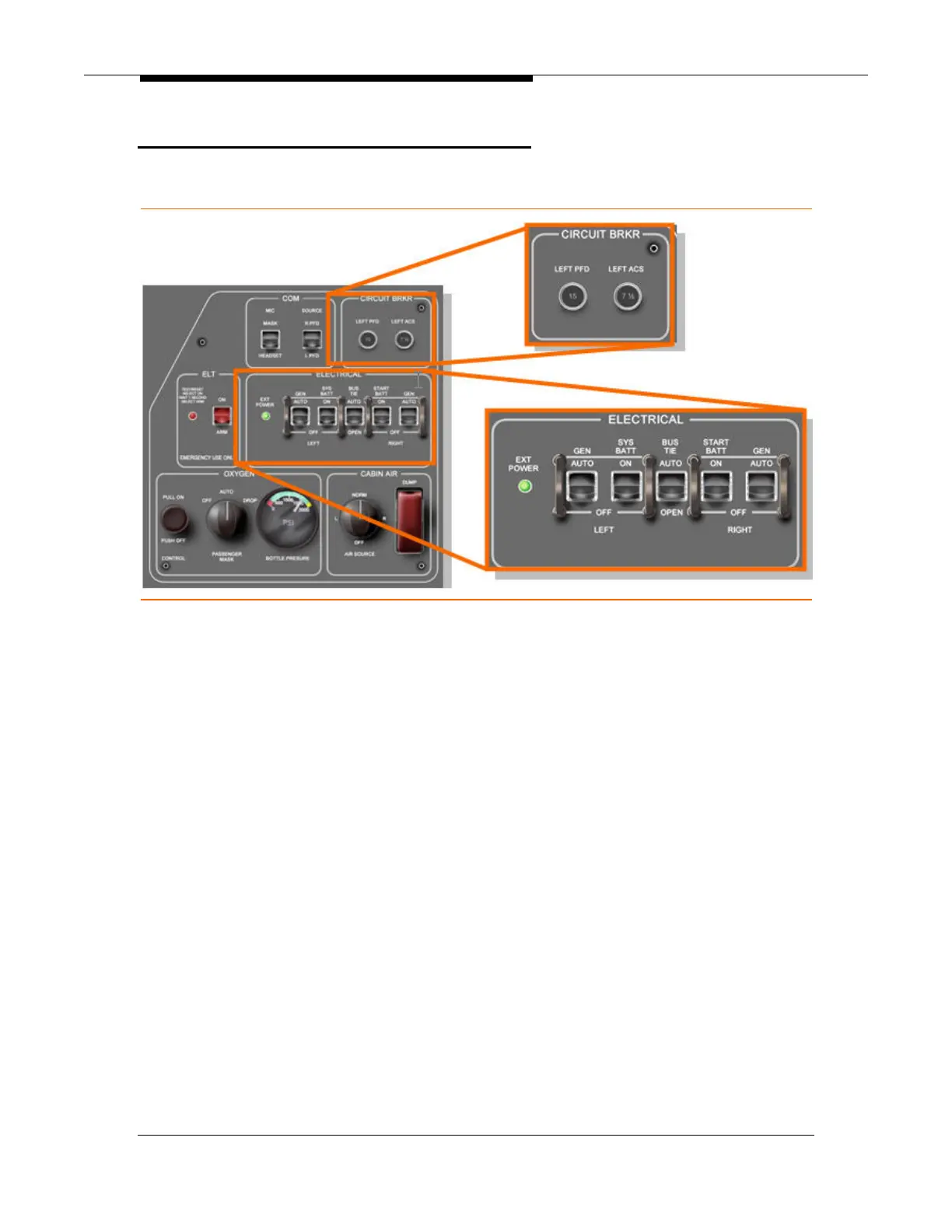

Figure 139. Electrical Switches
LEFT GEN
AUTO........................................................ Left generator contactor ACS controlled
OFF........................................................................... Left generator contactor open
RIGHT GEN
AUTO......................................................Right generator contactor ACS controlled
OFF.........................................................................Right generator contactor open
SYS BATT
ON ...................................................................... Systems battery contactor closed
OFF........................................................................Systems battery contactor open
START BATT
ON .............................................................................Start battery contactor closed
OFF.............................................................................. Start battery contactor open
BUS TIE
AUTO.............................................................. Bus tie contactor under ACS control
OPEN....................................................................................Bus tie contactor open
EXT POWER.....................................................Green LED indicates external power is
connected and voltage is the correct
polarity and within limits.
LEFT PFD ......................................................... Mechanical circuit breaker for left PFD
LEFT ACS ......................................................... Mechanical circuit breaker for left ACS
