Eclipse UDC2500 Limit - Figure 2-12 Auxiliary Output and Digital Inputs Option Connections

Installation
24 UDC2500 Universal Digital Limit ControllerProduct Manual 8/05
12
13
+
_
A
uxiliary
Load
0 - 1000
Ω
Connect shield
to ground at one
end only.
Auxiliary Output
10
11
+
_
Digital
Input #1
Connect shield
to ground at one
end only.
Digital Inputs
12
13
xxxx

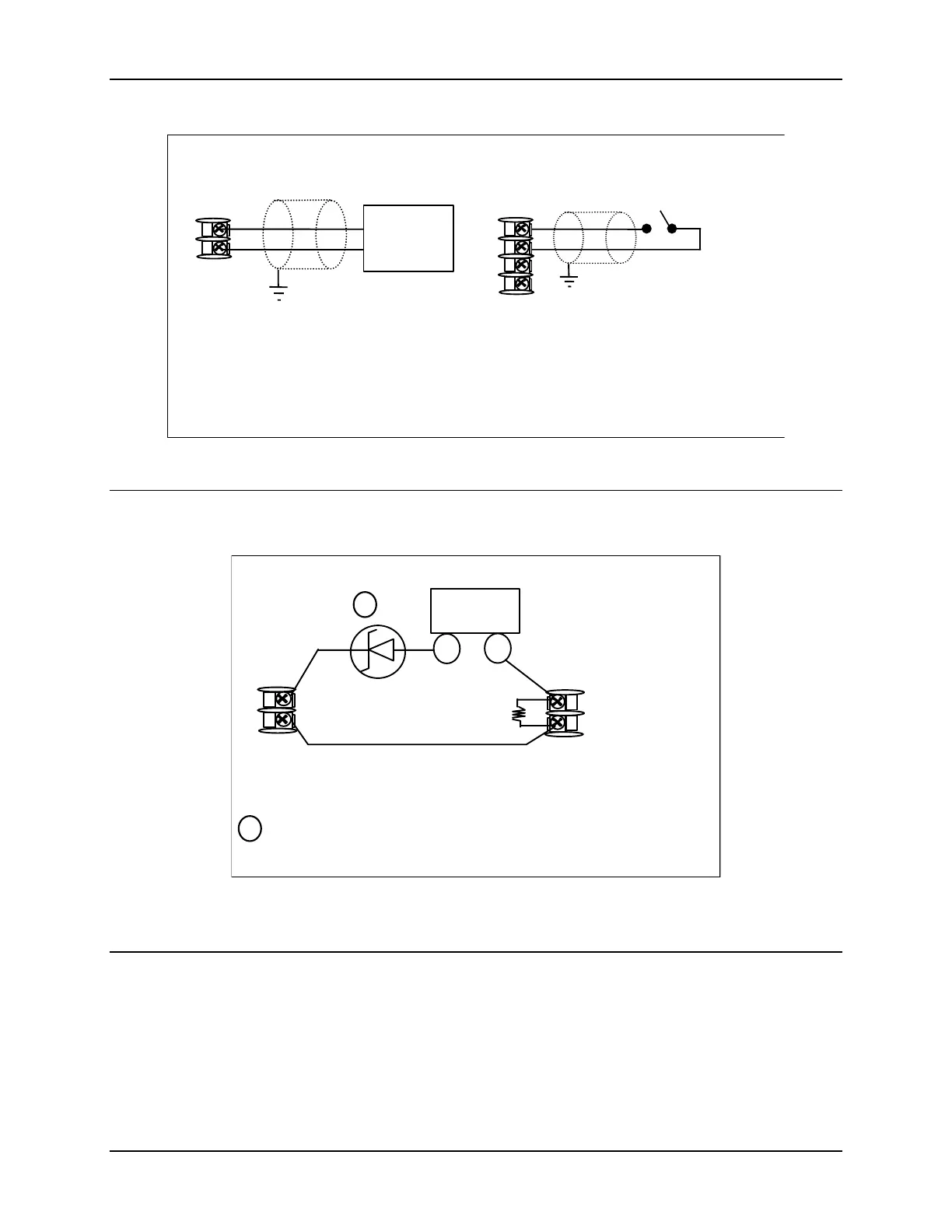

Figure 2-12 Auxiliary Output and Digital Inputs Option Connections
Configure:
A
2S1TY = NONE
A
2S2TY = NONE
2 Wire Transmitter
_
+
INPUT 1OUTPUT 3
250
Ω
xxxx
26 +
27 -
5 +
6 -
If necessary, install a zener diode here to reduce voltage at the
transmitter. A 1N4733 will reduce the voltage at the transmitter to
approximately 25 Vdc.
1
1
Figure 2-13 Transmitter Power for 4-20 mA — 2 wire Transmitter Using Open
Collector Alarm 2 Output
