ECOCLIM AC134HD - Refrigerant Charge Stage; Hoses Refrigerant Recovery Cycle; Refrigerant Transfer

EN_
810G20 - Version V5 – Juillet 2020 P. 65
Traduction de la notice originale
9.2.3. Refrigerant charge stage
Before the refrigerant charge starts, the unit initializes the scales and
checks that the measurement is stable. If the unit is subject to
movements, this stabilisation may take some time due to the sloshing of
the liquid in the tank.
Throughout the process, the unit displays the pressure in the tank and
the quantity of refrigerant injected.
9.2.4. Hoses refrigerant recovery cycle
Once the ECS circuit is charged with refrigerant, the unit beeps and
displays an information message. Press ENTER to confirm.

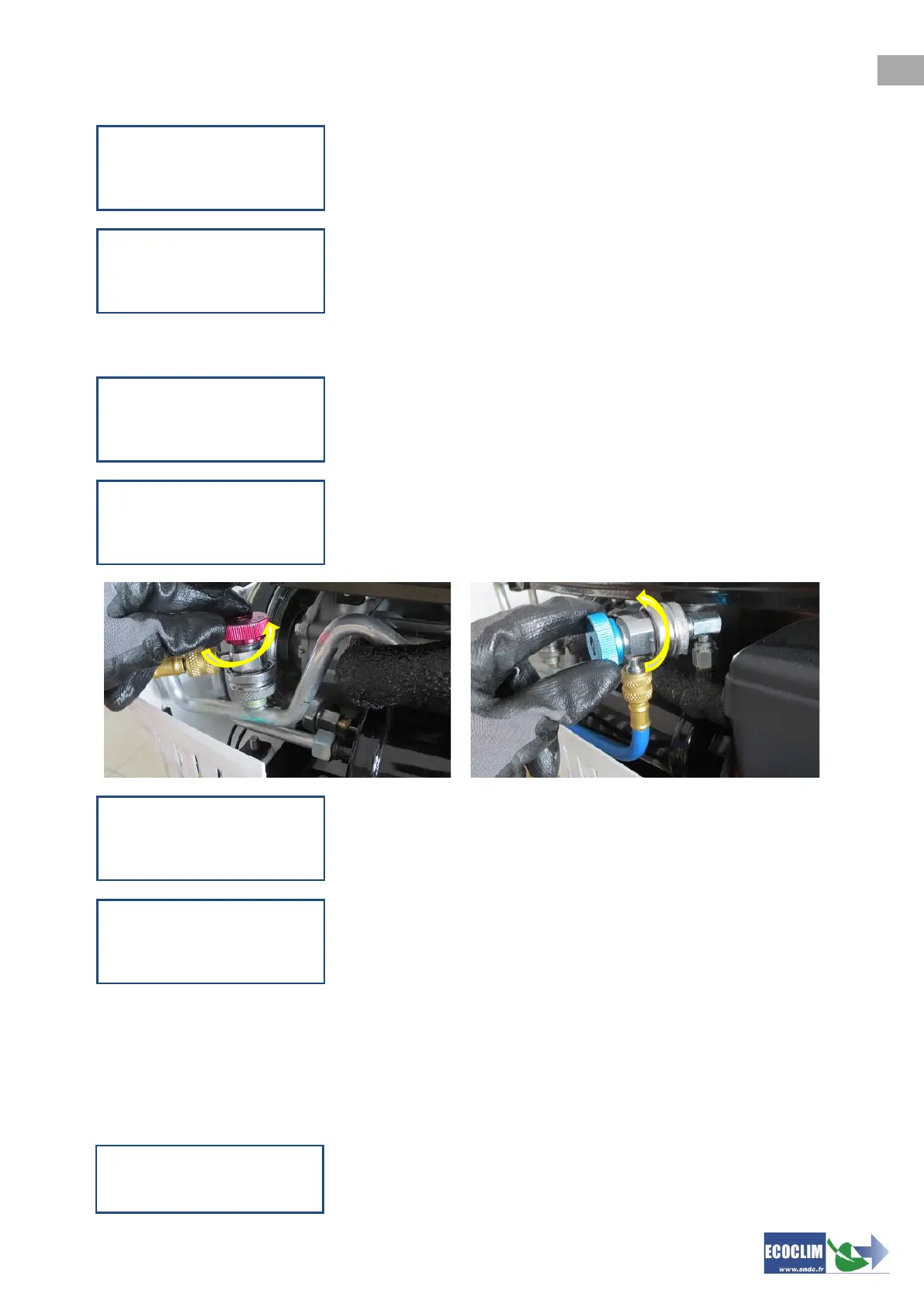

Unscrew the HP and LP coupler caps to disconnect the hoses from the
ECS circuit. Then, Press ENTER to confirm.
The unit recovers the remaining refrigerant from the two hoses.
The cycle is completed. The unit will print a cycle summary receipt, the
screen will then display the >>MAIN MENU<< again.
The hoses are empty. It is now safe for the operator to unplug the hoses from the ECS circuit. Replace the
caps on the ECS circuit pressure ports.
9.3. Refrigerant transfer
This cycle allows the operator to fill the unit's tank from a refrigerant gas cylinder.
From the homepage, access the menus by pressing ENTER.
From the >> ECS OPERATION << menu, select 1.
CHARGE: 600 g
Scale initialization
Stabilizing: 2.1
CHARGE: 600 g
Tank 8.2 bar 213 g
CHARGE: 600 g
Charge done
ENTER
CHARGE: 600 g
Hoses recovering
> Close couplers
ENTER
CHARGE: 600 g
Hoses recovering
2.78 bar
CHARGE: 600 g
Operation finished
>> ECS OPERATION <<
1.New operation
2.Refrig transfer
