5.2 Elektrische Installation
Verdrahtungsplan
optional
optional
Reiniger
Klarspül-
Temp.-Sensor
Leitfähigkeits-
Sonde
WWC-Eingangsmodul
Eingangsspannung abhängig
vom Eingangsmodultyp
Allgemein
Freigabe
Dosierung
Freigabe
Vordosierung
Freigabe
Klarspülung
Netz-
transformator
Alarm-
summer
Waschmittel-
pumpe
Klarspül-
pumpe

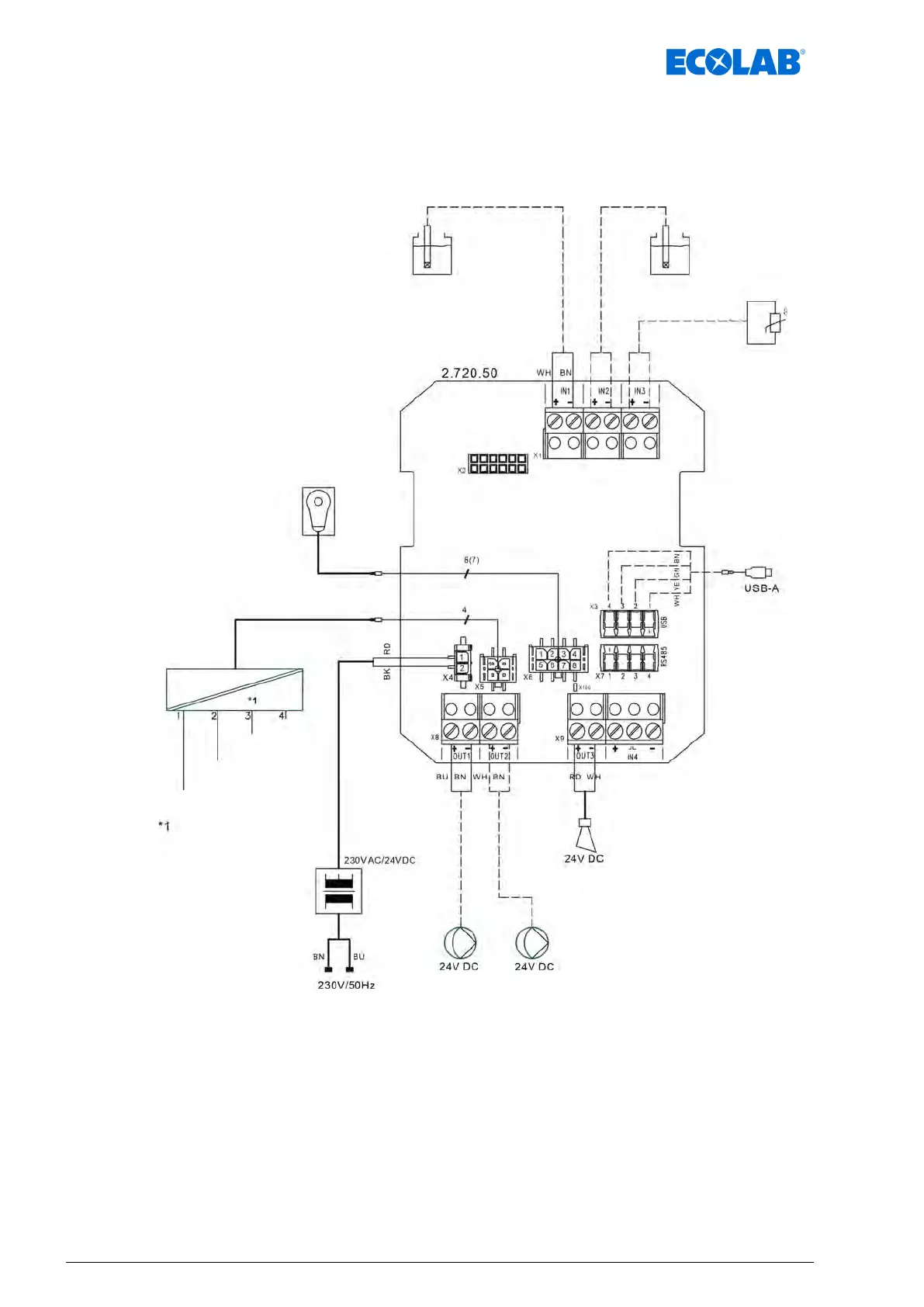

Abb. 4: Verdrahtungsplan Ecoplus EXN-II
Montage und Installation
26MAN054003, Rev. 1-02.2024
