5.2 Electrical installation
Wiring diagram
optional
optional
Detergent
Rinse temp
sensor
Conductivity
probe
Input module
WWC
Input voltage according
to used input module type
Common
Det.
metering
enable
Det.
pre
metering
Rinse aid
enable
Line
Transformator
Buzzer
Alarm
Detergent
pump
Rinse
pump

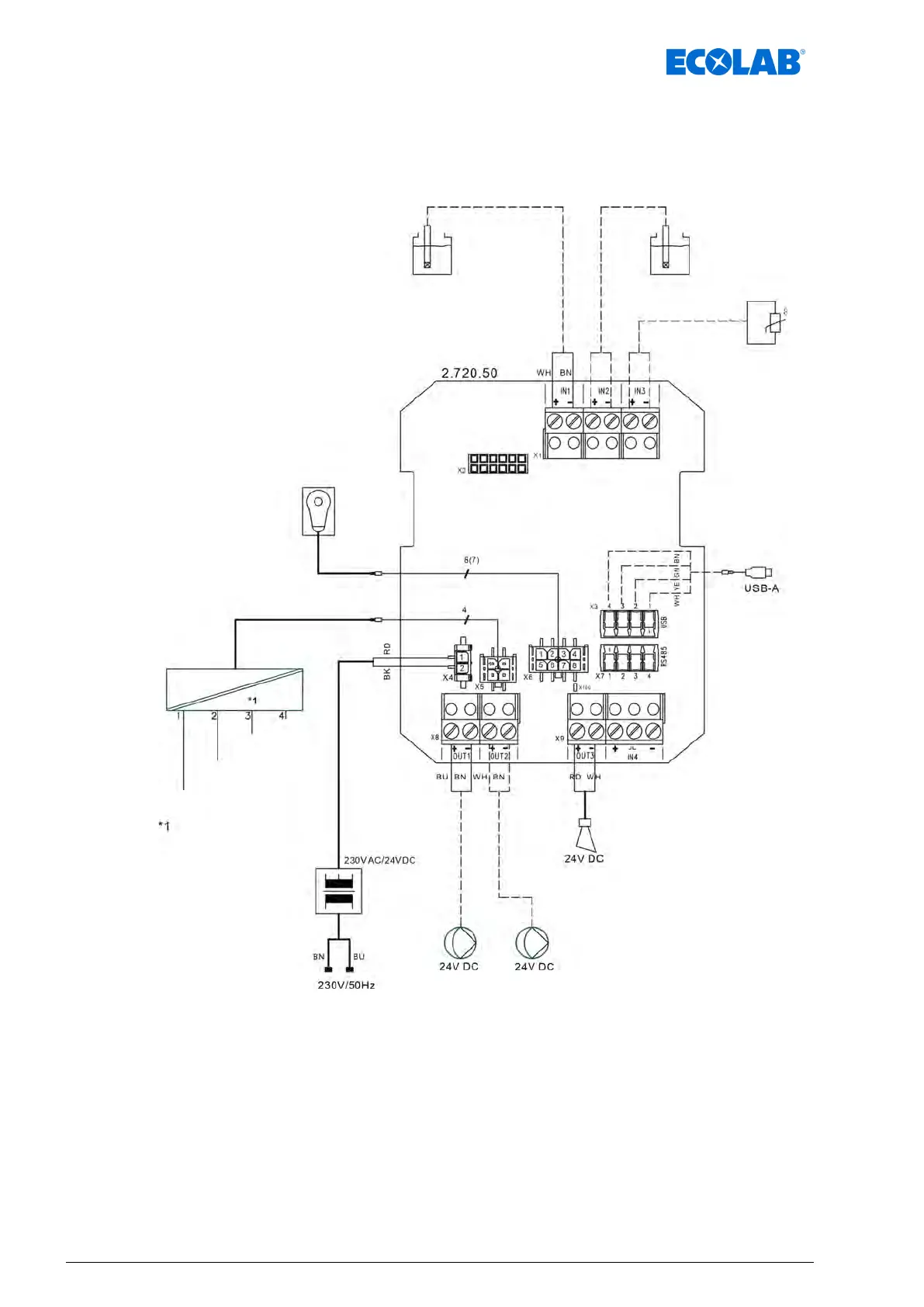

Fig. 4: Wiring diagram Ecoplus EXN-II
Assembly and connection
26MAN054003, Ver. 1-02.2024
