Ecom ST User Manual

16 ecom-ST 1.0

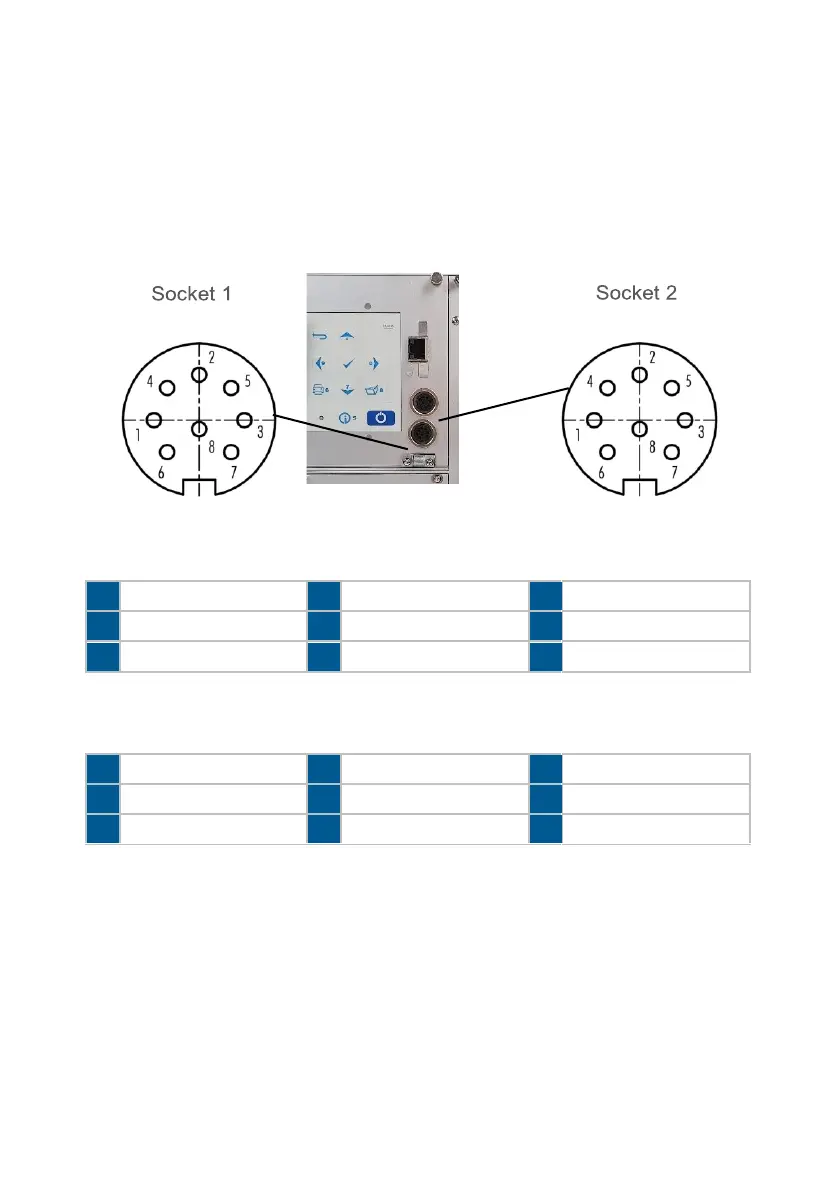

1.5 Analog outputs (option)
The device can be equipped with 8 analog outputs (4 mA - 20 mA).
Channels 1 to 4 are available at socket 1 (lower socket) (see pin
assignment socket 1). Channels 5 to 8 are available at socket 2 (upper
socket) (see pin assignment socket 2).
Pin assignment socket 1
Pin assignment socket 2
Each channel can be assigned a measurement or calculation variable
with free scaling (see chapter “Configuring the Analog outputs”).
1
GND channel 8
4
Signal channel 7
7
GND channel 5
2
Signal channel 8
5
GND channel 6
8
Signal channel 5
3
GND channel 7
6
Signal channel 6
1
GND channel 4
4
Signal channel 3
7
GND channel 1
2
Signal channel 4
5
GND channel 2
8
Signal channel 1
3
GND channel 3
6
Signal channel 2
