8.4 Removal / re-installation of modules

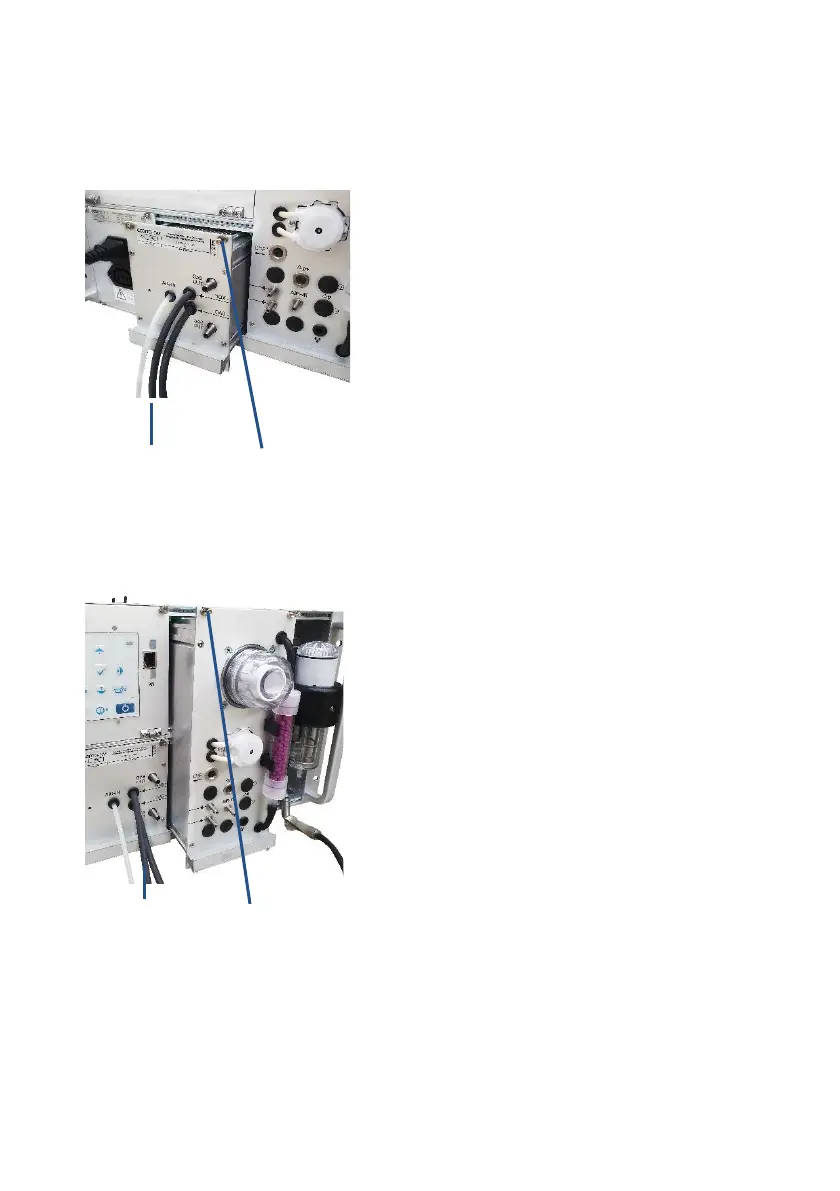

8.4.1 Gas measuring module
Removal
1. Pull off the hoses.
2. Loosen the 4 screws fixing the gas
measuring module.
3. Pull the gas measuring module out of
the device.
Reinstallation
1. Insert gas measuring module into
device.
2. Tighten the 4 screws.
3. Push the hoses onto the turned parts.
8.4.2 Gas processing module
Removal
1. Pull off the hoses.
2. Loosen the 4 screws.
3. Pull the gas processing module out
of the device.
Reinstallation
1. Insert gas processing module into
the device.
2. Tighten the 4 screws.
3. Slip the hoses over the turned parts.
Hoses
Screw
Hoses
Screw
