1 Product Description
ED-HMI2120-101C User Manual 1-14
Pin ID Pin Name
1 TX4-
2 TX4+
3 TX3-
4 TX3+
5 TX2-
6 TX2+
7 TX1-
8 TX1+

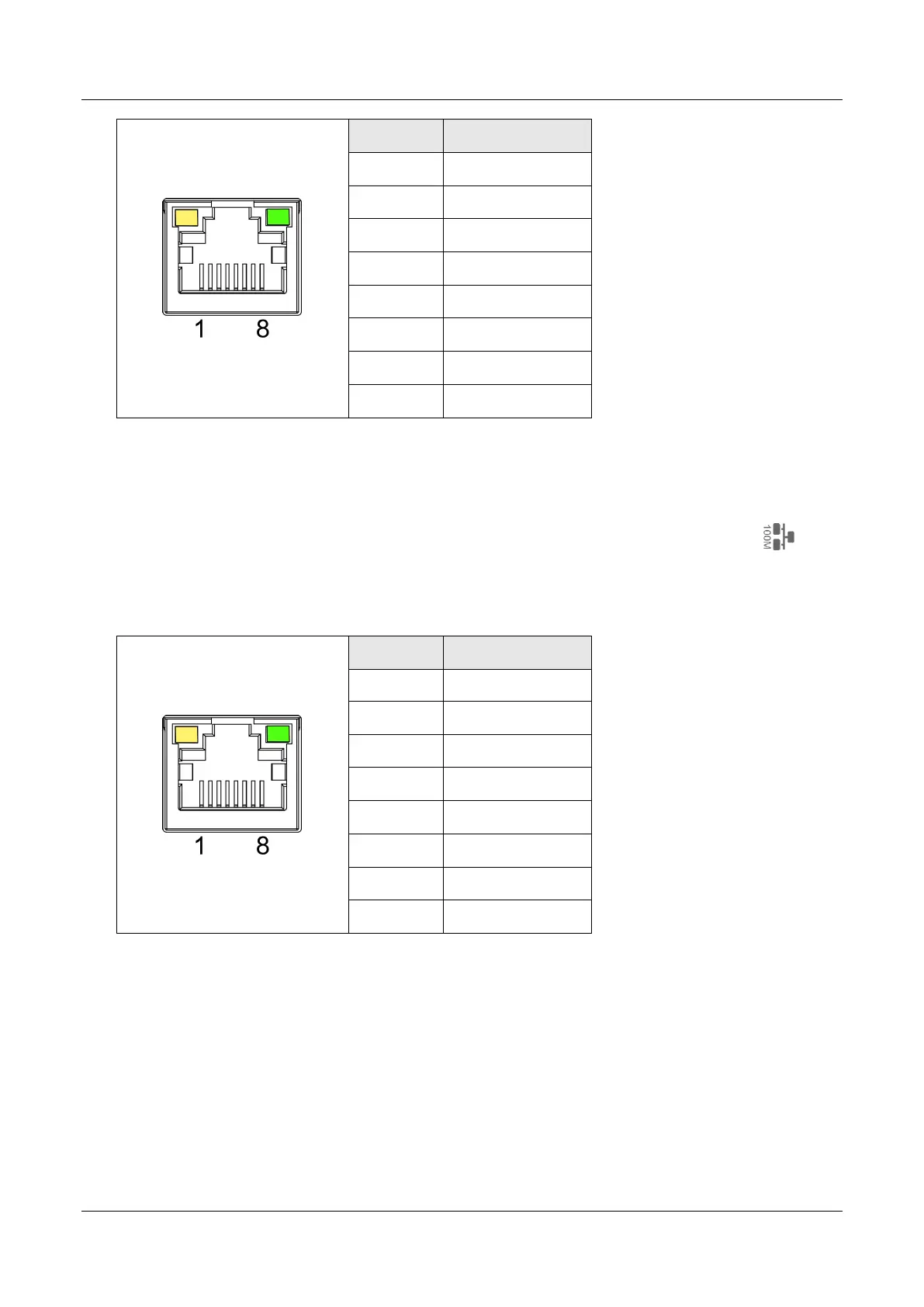

1.6.6 100M Ethernet Interface
ED-HMI2120-101C includes an adaptive 10/100M Ethernet port, and the silkscreen is " ". The
connector model is Link-PP LPJ0011BBNL, and it is recommended to use the network cable with Cat6
and above when accessing to network. The pins corresponding to the terminal are defined as follows:
Pin ID Pin Name
1 -
2 -
3 Rx-
4 -
5 -
6 Rx+
7 Rx--
8 Rx+
1.6.7 HDMI Interface
ED-HMI2120-101C includes one HDMI port, the silkscreen is "HDMI" and the connector is type A
HDMI. The terminal model is MTCONN JTHDA-19F08, which can connect to an HDMI display and
supports up to 4Kp60.
