3 Installing Device
ED-HMI2120-101C User Manual 3-4

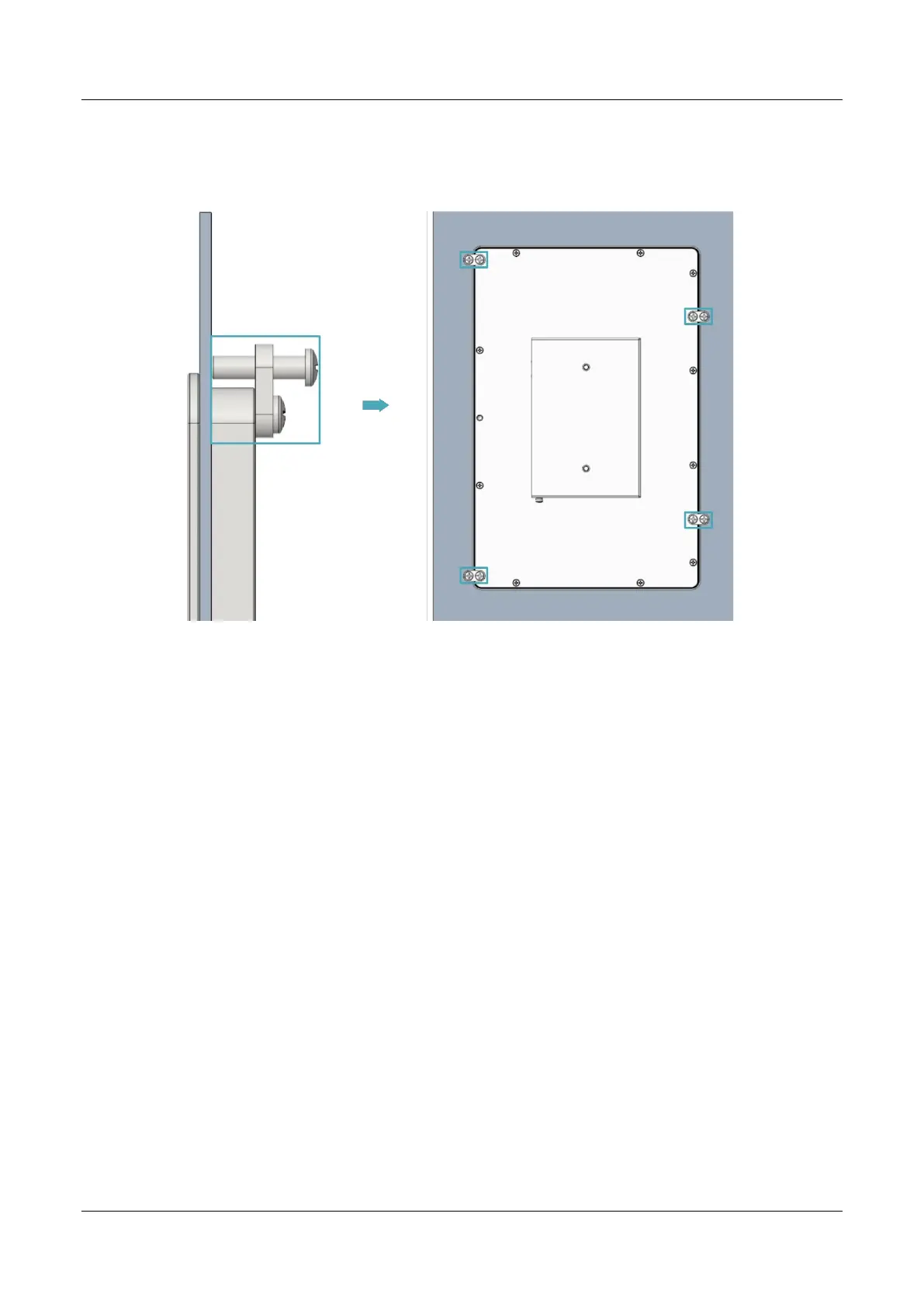

5. Use 4xM4*8 screws to tighten clockwise to fix the buckles to device, then use 4xM4*16
screws to tighten clockwise to the end through the buckles.
