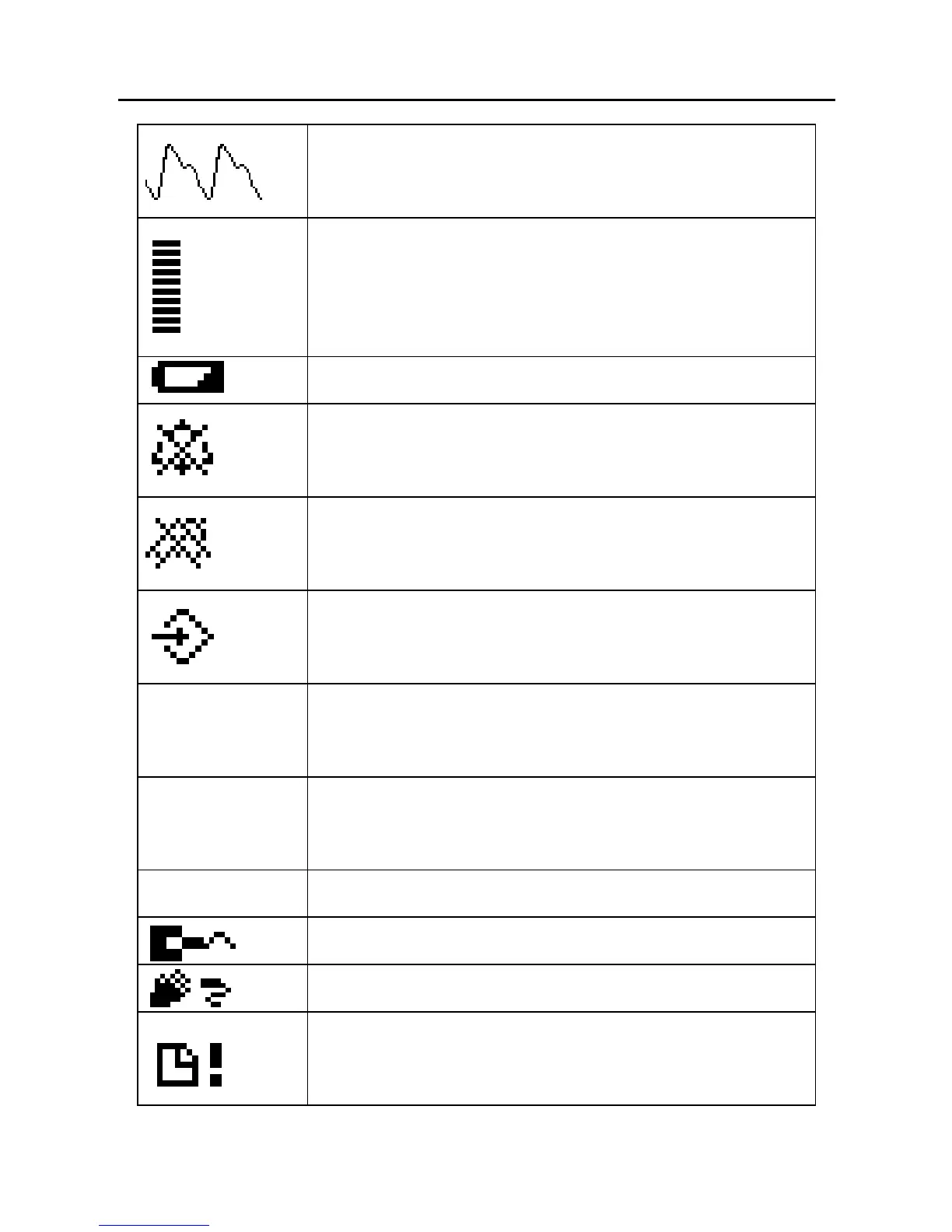

H100B Pulse Oximeter User Manual
- 17 -
SpO
2
waveform display
Pulse amplitude display
Low battery icon
Audio alarm off icon
Alarm off icon
Data storage icon
04: 59
Time display in Information area:
“hour: minute”
ADU/NEO
Patient type in Information area:
Adult or Neonate.
ID: 99
Patient ID in Information area
SpO
2
sensor unconnected icon
SpO
2
sensor off
Indicates the memory space is full
