H100B Pulse Oximeter User Manual
- 16 -

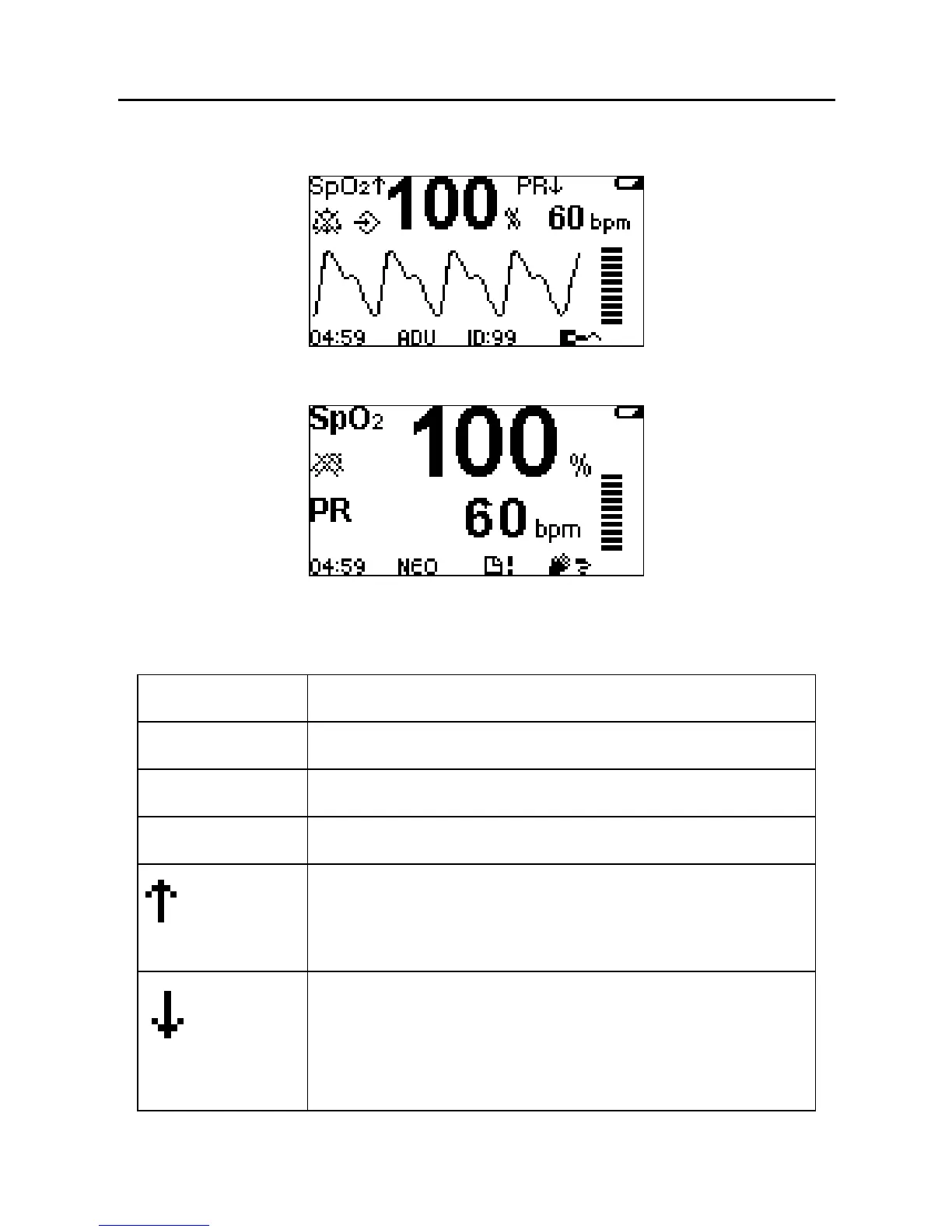

2.2.1 Symbols on Screen
Figure 2-2 Waveform Mode
Figure 2-3 Large Numeric Mode
Icons on the screen and their meanings:
SpO
2
SpO
2
value display area
100%
Measured SpO
2
%
PR
Pulse Rate value display area
60 bpm
Measured Pulse rate (bpm)
Displays when measurement value
is higher than the upper alarm limit
Displays when measurement
value is lower than the lower alarm
limit
