H100B Pulse Oximeter User Manual
- 66 -
7 Principles of Operation
H100B Pulse Oximeter adopts non-invasive double
wavelength to measure SpO
2
and PR. It can perform spot
and continuous measurement for a short time.
The system consists of Central Processing Unit, Signal
Collection, Signal Input, Data Output, Display and User
Input module, shown as follows:

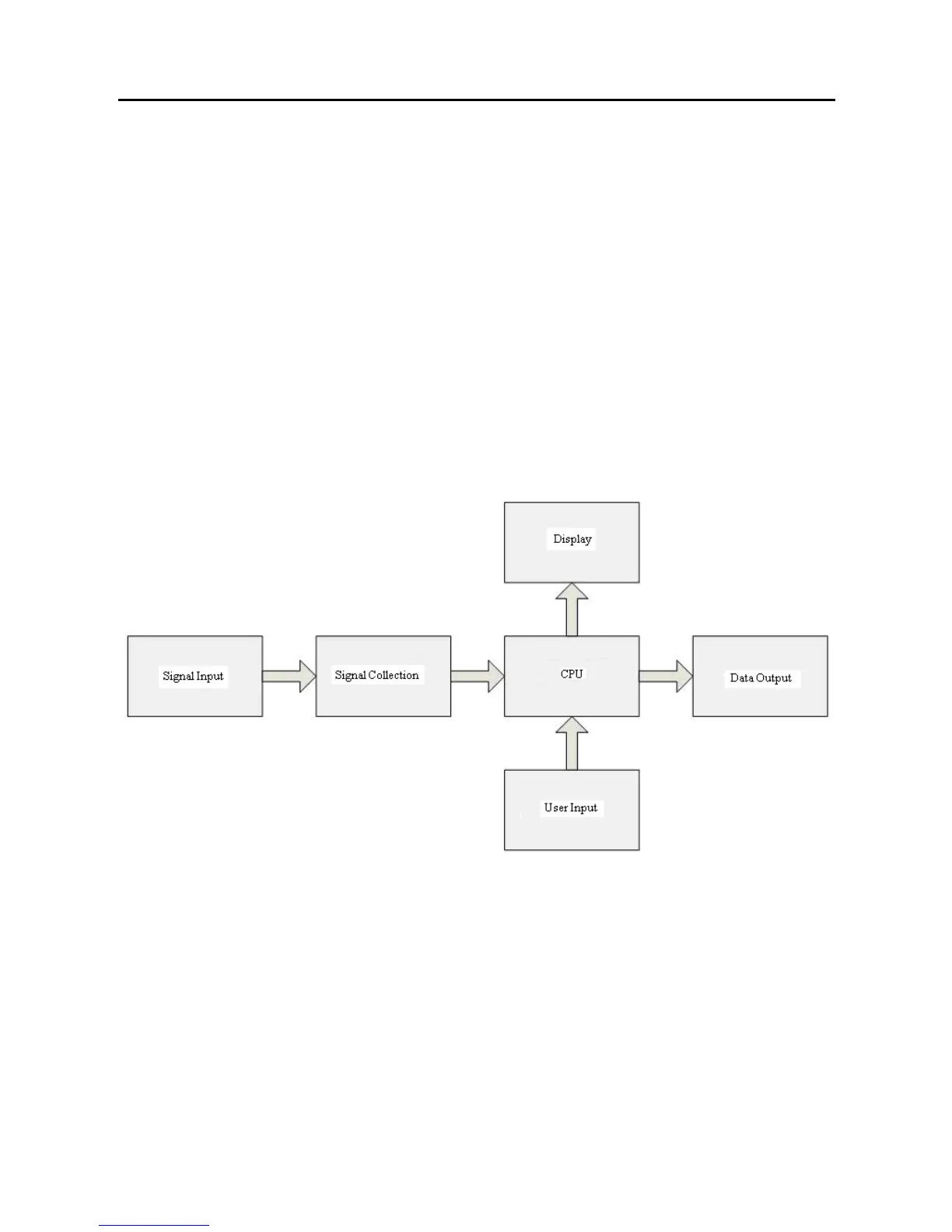

Figure 7-1 System Principle
The oximeter communicates with external devices
through RS-232 interface.
