H100B Pulse Oximeter User Manual
- 34 -
Arrow or Down Arrow button.

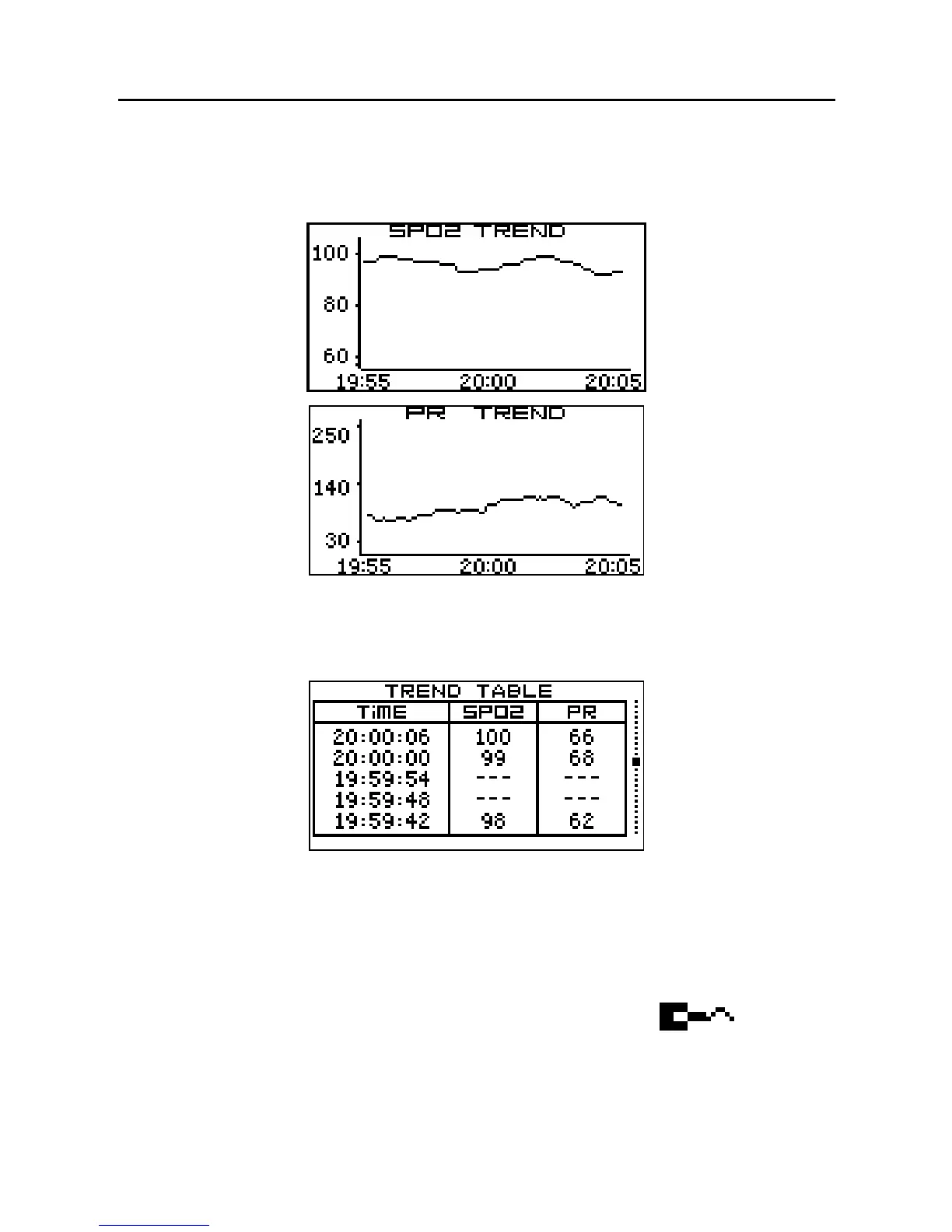

Trend graph:
Figure 3-5 Display SpO2 and PR Trend Graph
Trend table:
Figure 3-6 Display SpO2 and PR Trend Table
3.2.3 Abnormal Measurement State
If the SpO
2
sensor does not connect to the oximeter, it
will give a medium alarm, and display
in the
information area.
If the SpO
2
sensor falls off from the finger, it will give a
