SYSTEM INSTALLATION
SEASTAR POWER ASSIST

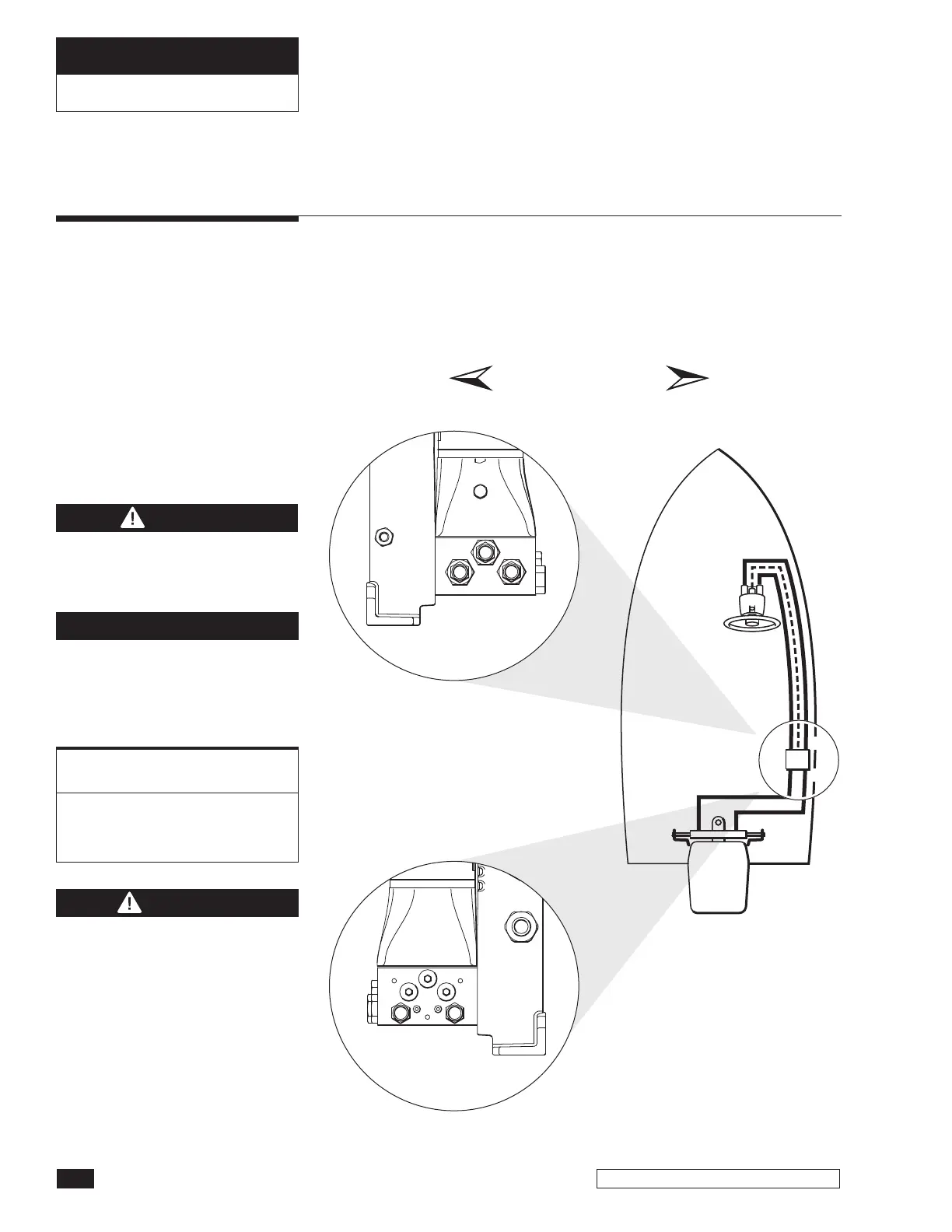

Hose connection is as follows.
• Helm to P/A = S (helm) to H1 (P/A), P (helm) to H2 (P/A), lower R
port (helm) to R (P/A).
• P/A to cylinder = C2 (P/A) to starboard side (cylinder), C1 (P/A) to
port side (cylinder).
SeaStar Outboard Front Mount
Cylinders and I/O Cylinder
Outboard Front Mount
Cylinders:
HC5345 HC5347
HC5358 HC5348
HC6751 HC6750
HC6753 HC6752
HC6755 HC6754
I/O Cylinder:
HC5332
Hoses MUST be at least 6' in
length from the power assist to
the helm pump, or, from the
power assist to the cylinder(s).
NOTICE
HELM PUMP MODEL WHEEL
& DISPLACEMENT TURNS
1.7 cu.in. per revolution 5
2.0 cu.in. per revolution 4
2.4 cu.in. per revolution 3.5
Figure 3.
CAUTION
ALL hose connections MUST be
torqued to 15 ft-lb (20.34Nm).
DO NOT run the wires or hoses
in areas where the may come
in contact with battery acid or
excessive heat, i.e. engine
exhaust, manifolds or any
other area that may damage
the wires or hoses.
WARNING
To Next Page
