Selection Guide
HF5501

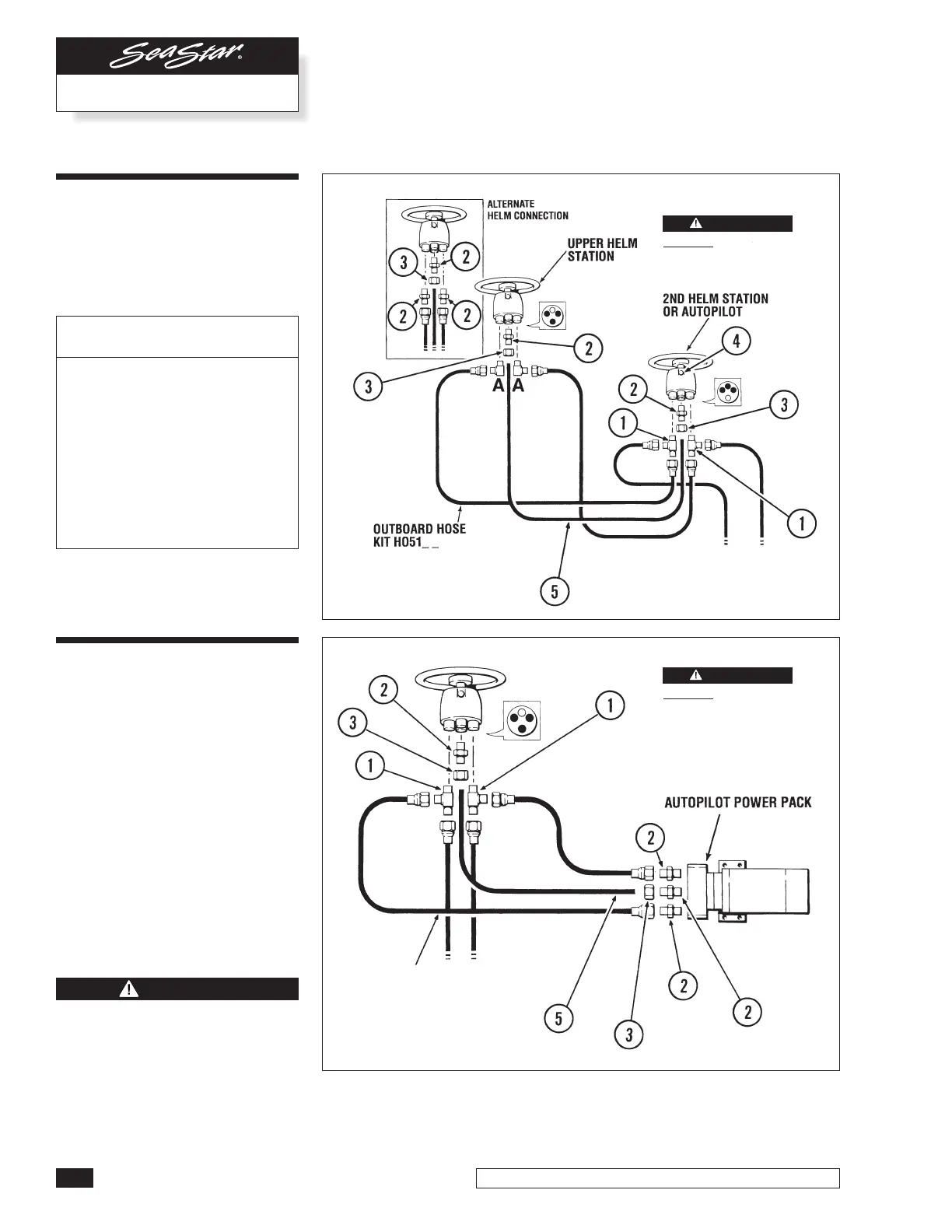

Application
Fitting kit to add a 2nd station
or autopilot to an outboard
system.
FITTING KITS
Autopilot powerpack
connection
* SUPPLIED WITH HELM PUMP.
NOTE: HF5501 FITTING KIT IS TO BE USED WHEN
THE SYSTEM HAS BEEN PLUMBED WITH SEASTAR
OUTBOARD STEERING HOSE ONLY.
ITEM
QUANTITY PART
NO. DESCRIPTION PER KIT NO.
1 Tee Fitting 2 600603
1 End – 3/8" NPT (M)
1 End – 1/4" NPT (M)
Center – 3/8" Tube (M)
2 Connector Fitting 4 600602
3/8" Tube (M) –
1/4" NPT (M)
3 Tube Nut – 3/8" Dia. 4 280327
4
Non-Vented Filler Plug
1 HA5432
5 SeaStar Nylon Tube 25ft HT5092
3/8" Dia.
A* Elbow 3/8" Tube (M) – 2
1/4" NPT (M)
NOT INCLUDED IN HF5501
FITTING KIT, HOSES ARE TO
BE PURCHASED SEPARATELY
OUTBOARD HOSE
KIT HO51_ _.
NOT INCLUDED IN HF5501
FITTING KIT, HOSES ARE TO
BE PURCHASED SEPARATELY
DO NOT cut SeaStar
Outboard Hoses
WARNING
DO NOT cut SeaStar
Outboard Hoses
WARNING
DO NOT cut SeaStar Outboard
Steering hose. Once cut there is
no means to field swage fittings
to the ends of the hoses.
CAUTION
