10-16
Selection Guide
NOTICE
Fittings for port and starboard lines
in upper station not included.

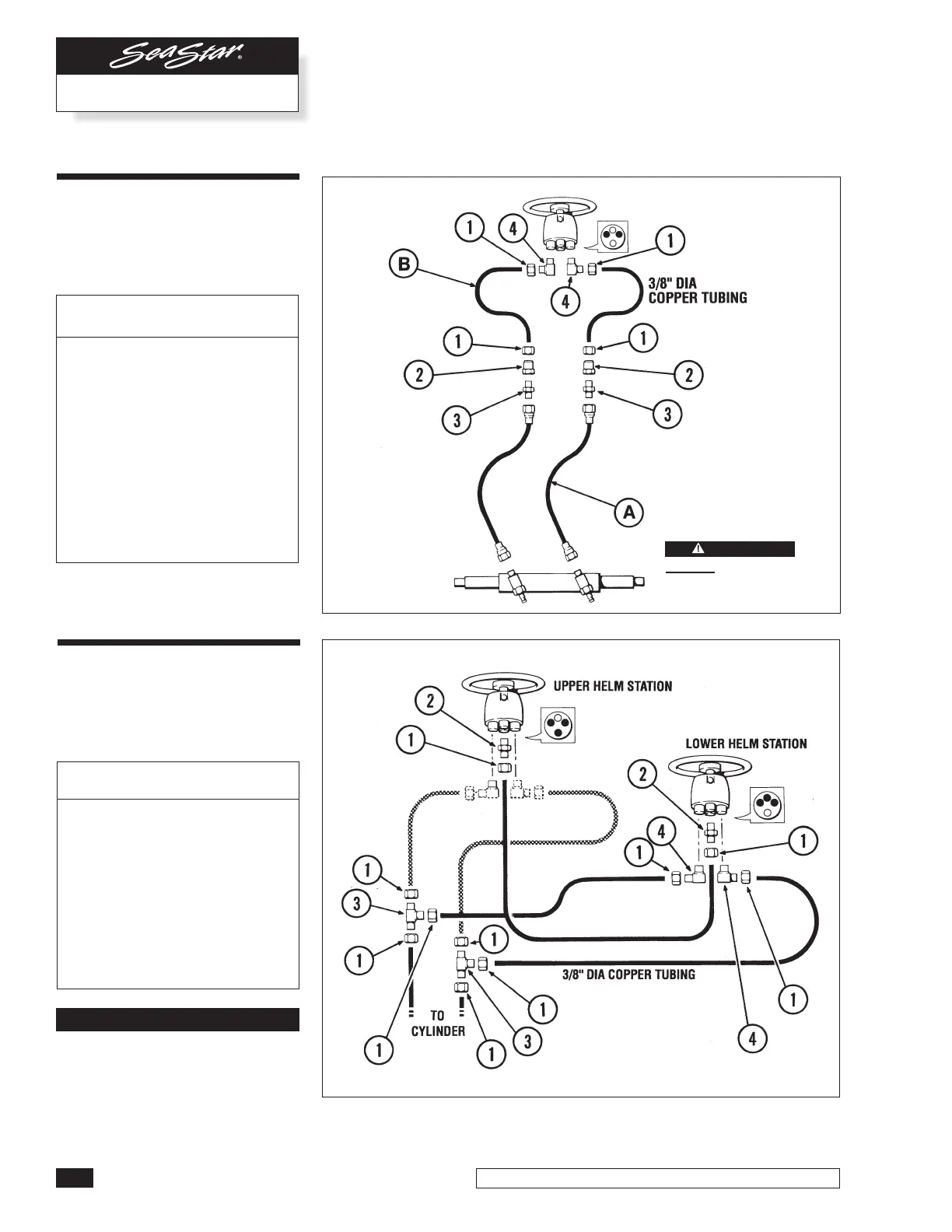

FITTING KITS
HF5581
Application
45° flare fitting connection kit
for SeaStar systems
ITEM QUANTITY PART
NO. DESCRIPTION PER KIT NO.
1 Tube Nut 4 653022
3/8" Dia. 45˚ Flare
2 Connector Fitting 2 653126
1 End – 3/8" Dia. 45˚
Flare (M)
1 End – 3/8" NPT (F)
3 Connector Fitting 2 600602
3/8" Tube (M) –
3/8" NPT (F)
4 Elbow 2 288526
1 End – 1/4" NPT (M)
1 End – 3/8" Dia. 45˚
Flare (M)
A* Outboard Hose Kit HO51__
B* Copper Tube
3/8" Dia.
* NOT SUPPLIED WITH FITTING KIT
HF5582
Application
Add a station or autopilot kit
using 3/8" 45° flare fittings
ITEM QUANTITY PART
NO. DESCRIPTION PER KIT NO.
1 Tube Nut 10 653022
3/8" Dia. 45˚ Flare
2 Connector Fitting 2 653323
1 End – 3/8" Dia. 45˚
Flare (M)
1 End – 1/4" NPT (M)
3 Tee Fitting 2 653220
Both Ends –
3/8" Dia. 45˚ Flare (M)
4 Elbow 2 288526
1 End – 1/4" NPT (M)
1 End – 3/8" Dia. 45˚
Flare (M)
DO NOT cut SeaStar
Outboard Hoses
WARNING
