SEASTAR and BAYSTAR Hydraulic Steering Systems
10-15

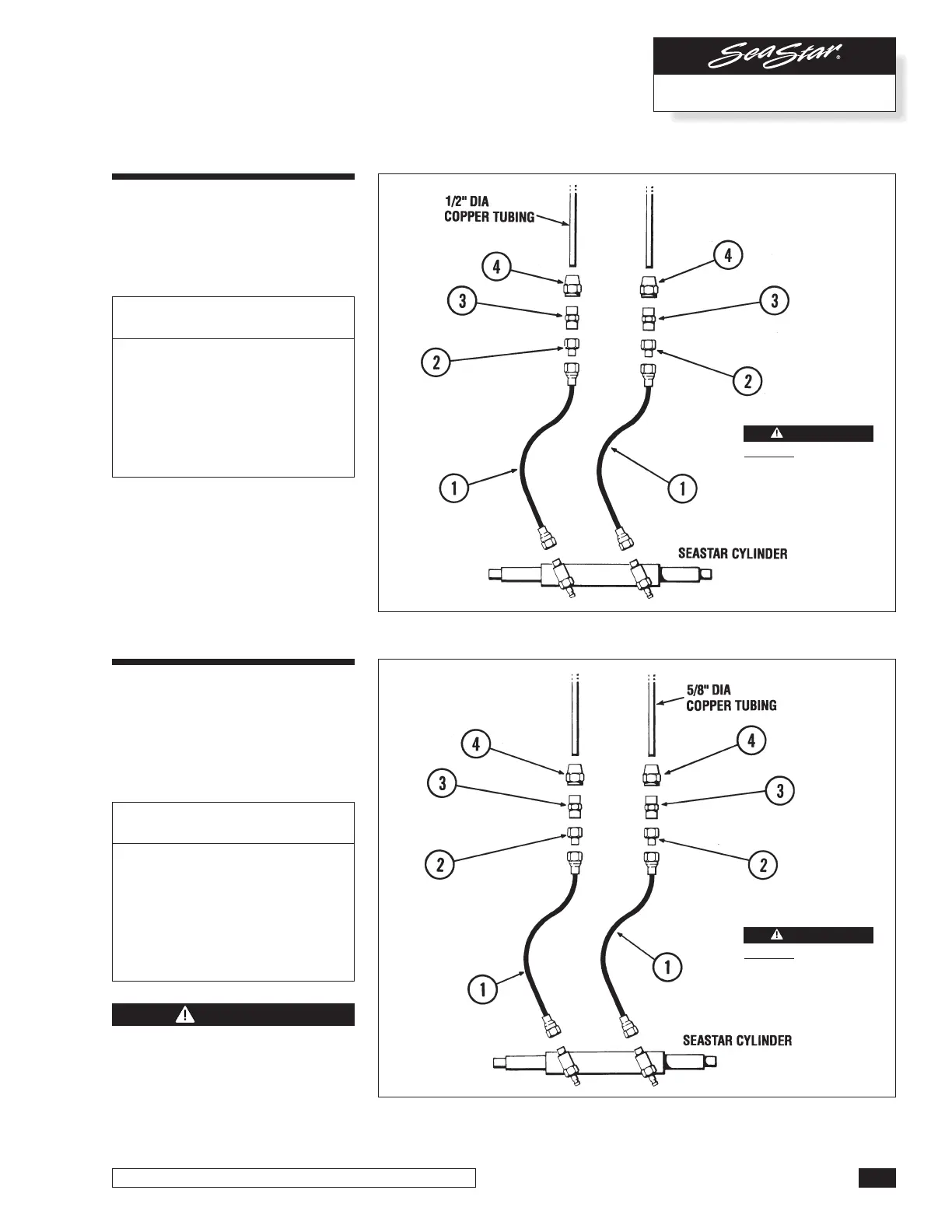

FITTING KITS
HF5568
Application
Kit to connect 1/2" diameter
copper tubing to SeaStar cylinders
ITEM QUANTITY PART
NO. DESCRIPTION PER KIT NO.
1 18" Hose Kit 2 338621
2 Connector Fitting 2 653624
3/8
" NPT(F) –
3/8" Tube (M)
3 Connector Fitting 2 555421
1 End – 3/8" NPT(M)
1 End – 1/2" Dia. 45˚ Flare
4 Tube Nut 2 555027
1/2" Dia. Flare
HF5569
Application
Kit to connect 5/8" diameter
copper tubing to SeaStar
cylinders
ITEM QUANTITY PART
NO. DESCRIPTION PER KIT NO.
1 18" Hose Kit 2 338621
2 Connector Fitting 2 653624
3/8
" NPT(F) –
3/8" Tube (M)
3 Connector Fitting 2 288028
1 End – 3/8" NPT(M)
1 End – 5/8" Dia. 45˚ Flare
4 Tube Nut 2 555121
5/8" Dia. Flare
DO NOT cut SeaStar
Outboard Hoses
WARNING
DO NOT cut SeaStar
Outboard Hoses
WARNING
DO NOT cut SeaStar Outboard
Steering hose. Once cut there is
no means to field swage fittings
to the ends of the hoses.
CAUTION
