FITTING KITS
2 OF EACH ILLUSTRATED INCLUDED IN KIT
2 OF EACH ILLUSTRATED INCLUDED IN KIT

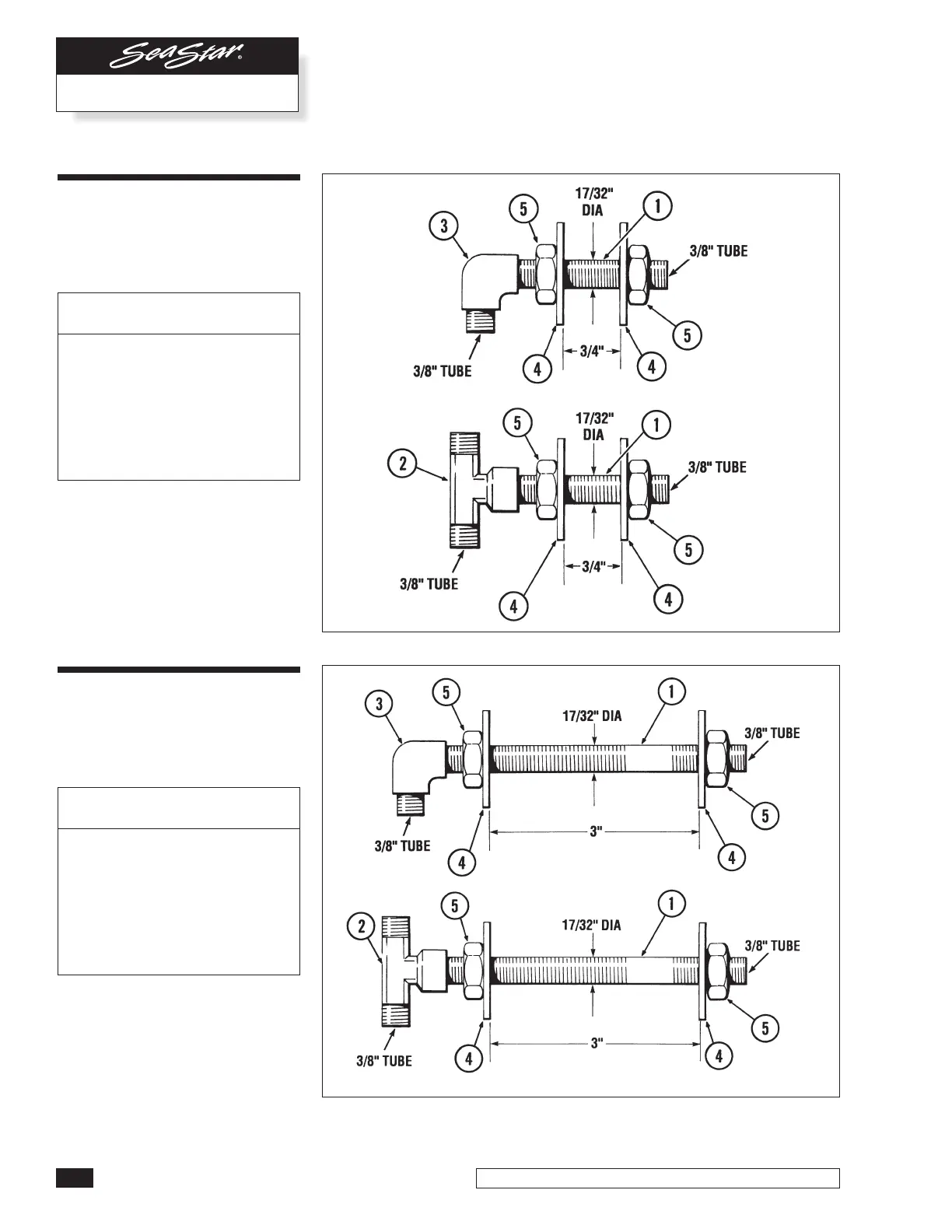

HF5514
3/4" bulkhead fitting kit
Application: Dual cylinder
installations
ITEM QUANTITY PART
NO. DESCRIPTION PER KIT NO.
1 Connector Fitting 4 286323
2 Tee Fitting 2 284826
2 Ends – 3/8" Tube (M)
Center – 1/4
" NPT (F)
3 Street Elbow 2 600606
3/8" Tube (M) –
1/4 " NPT(F)
4 Washer 8 202224
5 Nut 4 191621
HF5515
3" bulkhead fitting kit
Application: Dual cylinder
installations
ITEM QUANTITY PART
NO. DESCRIPTION PER KIT NO.
1 Connector Fitting 4 286323
2 Tee Fitting 2 284826
2 Ends – 3/8" Tube (M)
Center – 1/4
" NPT (F)
3 Street Elbow 2 600606
3/8" Tube (M) –
1/4 " NPT(F)
4 Washer 8 202224
5 Nut 4 191621
