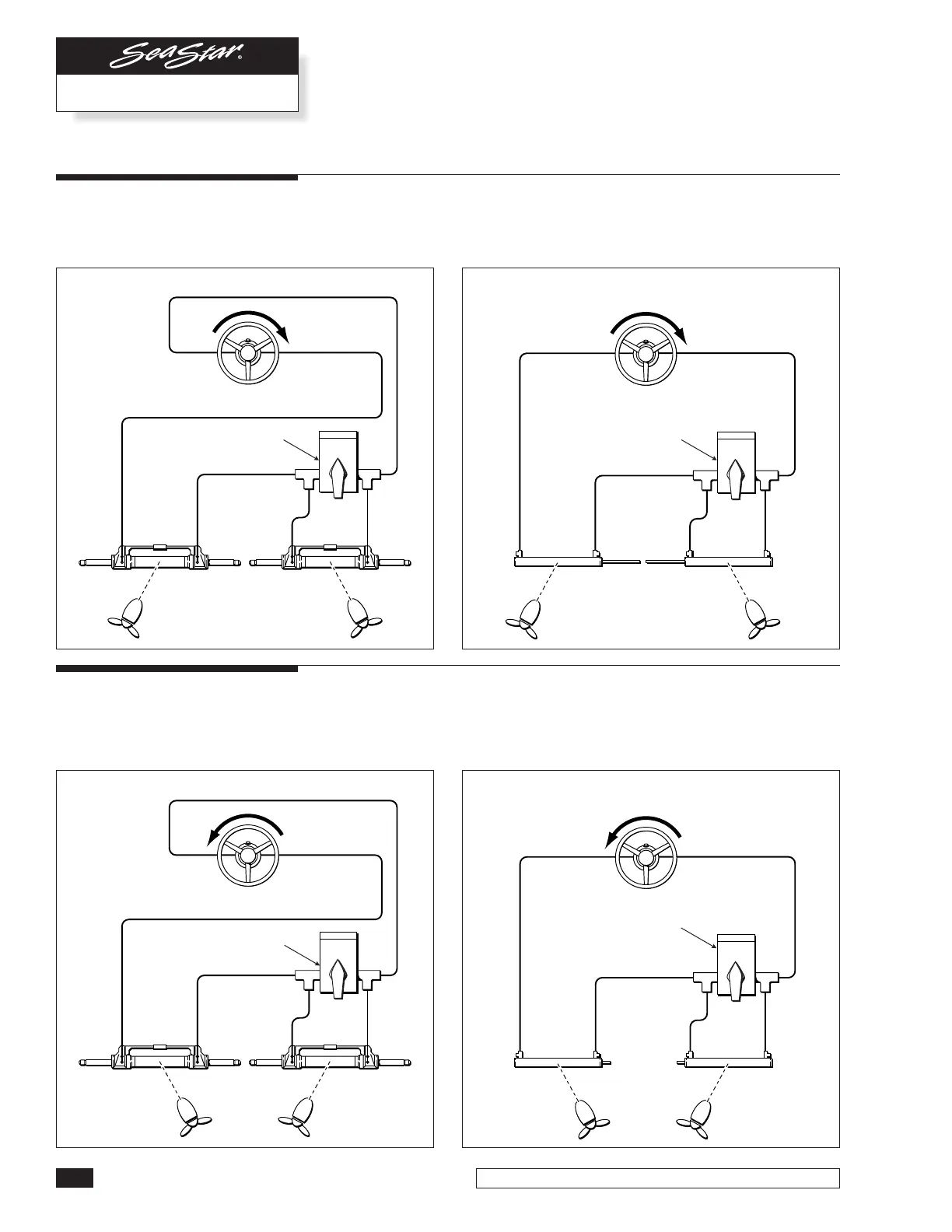

ALIGNMENT VALVE
Realignment Instructions
CYLINDER A CYLINDER B
PROPELLER
PROPELLER
LIQUID TIE BAR VALVE
1342
STARBOARD
PORT
Front Mount Cylinder
UNBALANCED
CYLINDER A
UNBALANCED
CYLINDER B
PROPELLER
PROPELLER
LIQUID TIE BAR VALVE
2431
STARBOARD
PORT
Side Mount (Unbalanced) Cylinder
Engines Toe'd Inwards;
Props too close together
1 Turn the wheel hard over to Port. (Both
cylinders move; cylinder B reaches
hard over first)
2 Open the valve
3 Continue to turn the wheel hard over
to Port. (Only cylinder A moves and
reaches hard over)
4 Close the valve
CYLINDER A CYLINDER B
PROPELLER
PROPELLER
LIQUID TIE BAR VALVE
1342
STARBOARD
PORT
Front Mount Cylinder
UNBALANCED
CYLINDER A
UNBALANCED
CYLINDER B
PROPELLER
PROPELLER
LIQUID TIE BAR VALVE
2431
STARBOARD
PORT
Side Mount (Unbalanced) Cylinder
Engines Toe'd Outwards;
Props too far apart
1 Turn the wheel hard over to
Starboard. (Both cylinders move;
cylinder B reaches hard over first)
2 Open the valve
3 Continue to turn the wheel hard over
to Starboard. (Only cylinder A moves
and reaches hard over)
4 Close the valve
