Edimax CV-7428nS User Manual

11

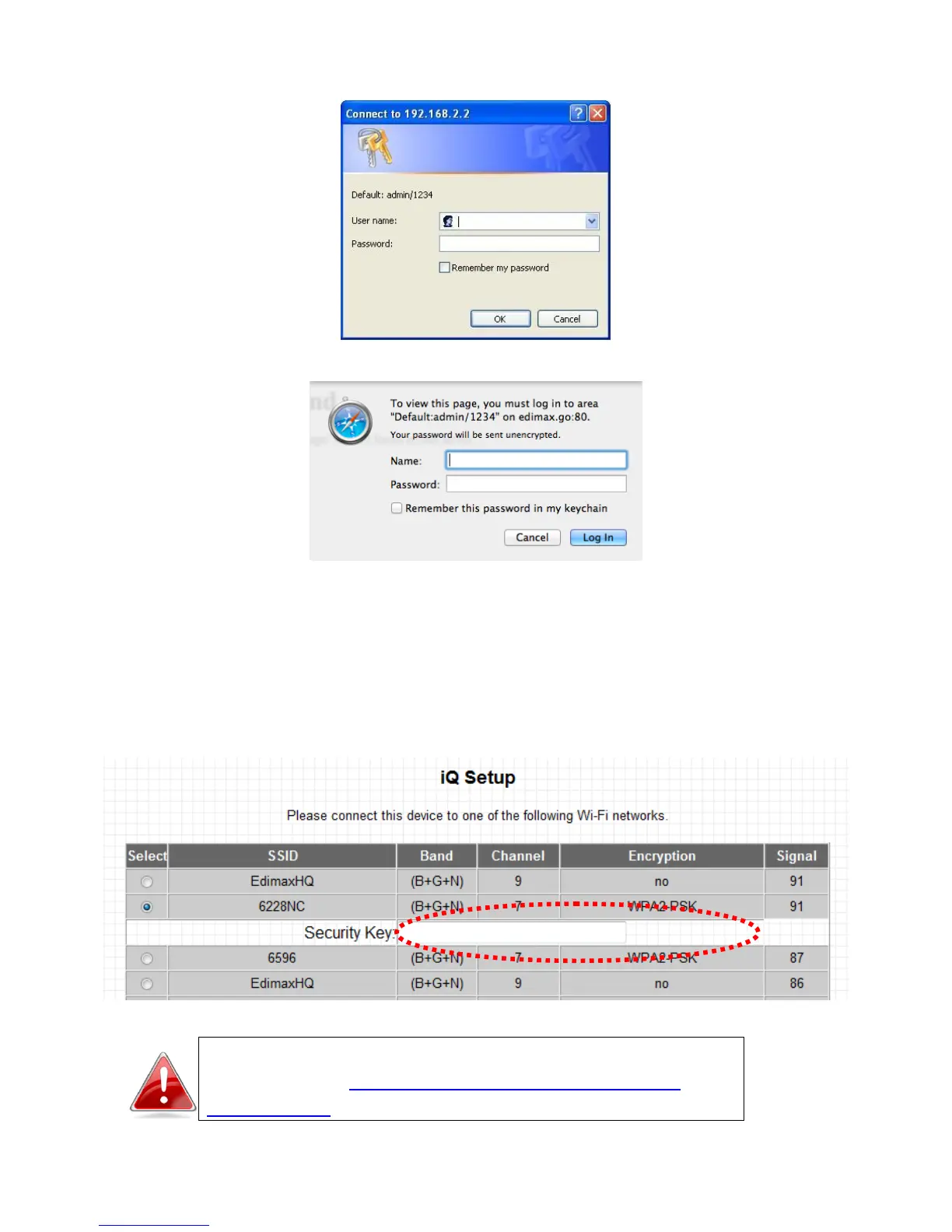

Windows:
Mac:
5. You will see the iQ Setup screen, as shown below. All available Wi-Fi
networks will be listed – please select the Wi-Fi network you would like the
wireless bridge to connect to. If your selected Wi-Fi network requires a
security key, a new field will appear when you select your Wi-Fi network.
Please enter your security key.
Note: If you do not know your network security key,
please refer to IV-1-3. How to Find Your Network
Security Key for guidance on how to find it.

Edimax CV-7428nS Specifications

Power

power adapter voltage	DC 5V
power adapter current	1A

Operating Environment

humidity	10-90% (Non-condensing)
temperature range	0-40°C
temperature range in Fahrenheit	32 - 104°F

Wireless Standards

frequency band	2.4 GHz
IEEE 802.11n data rate	up to 300Mbps
IEEE 802.11g data rate	up to 54Mbps
IEEE 802.11b data rate	up to 11Mbps

Ports & Interfaces

LAN ports	5 x RJ-45
antenna type	2 x 2dBi external antennas
LED indicators	Power, Wireless, LAN ports

Weight and Dimensions

weight	155 grams
height	30 mm
width	127 mm
depth	96 mm
