Edimax EW-7416APn v2 User Manual

11

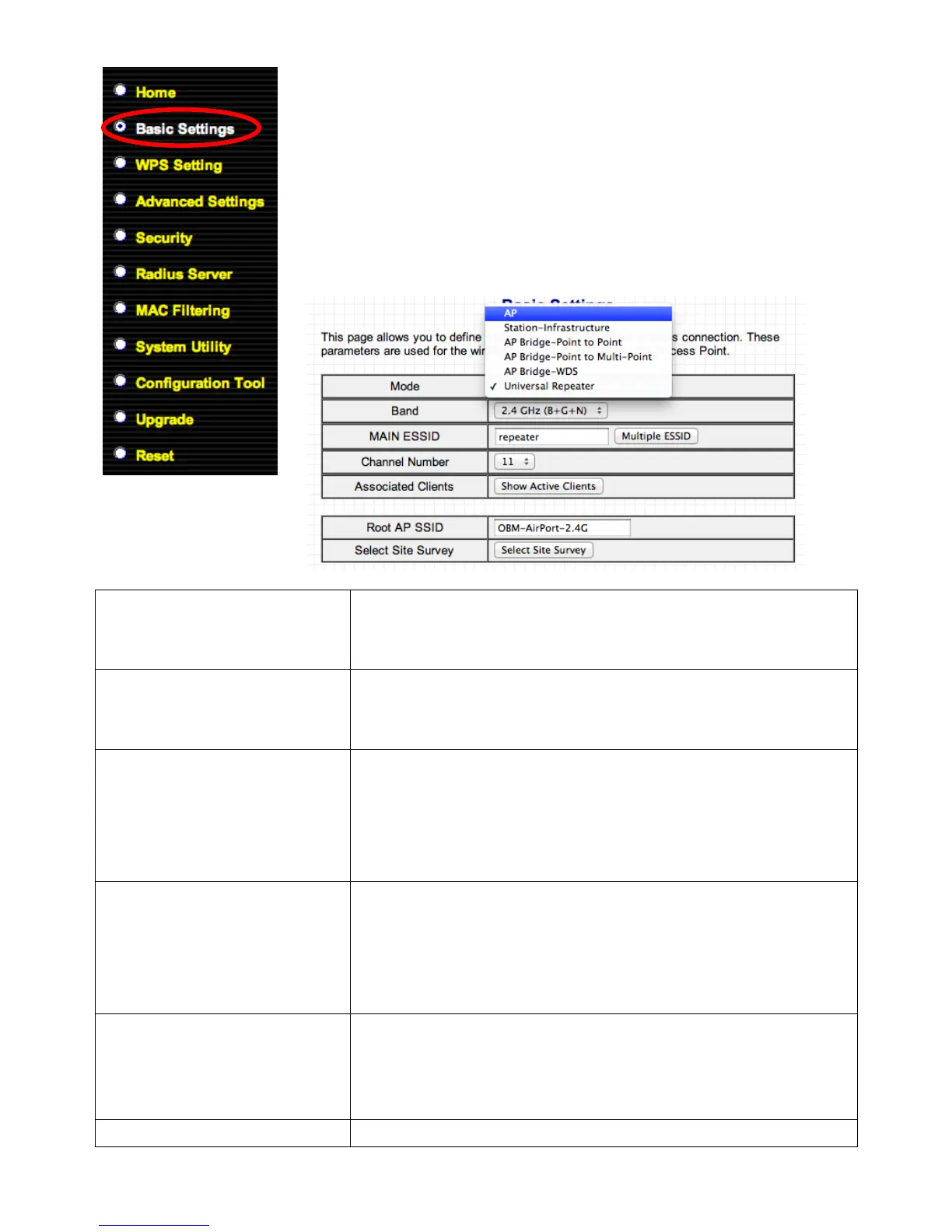

Select “Basic Settings” from the menu on the left side of
the screen. “Basic Settings” allows you to set the mode of
the access point and configure the settings accordingly.
Open the drop down menu labeled “Mode” and select
from the 6 available modes:
The available modes are:
AP
Access point mode allows wireless clients to
connect to this device and exchange data with
devices connected to the wired network.
Station-Infrastructure
Also known as wireless client mode. Enables
Ethernet-only devices such as smart TVs and game
consoles to connect to a wireless network
AP Bridge-Point to Point
Establishes a wireless connection with another
wireless access point using the same mode, and
links any wired networks connected to these two
wireless access points together. Only one access
point can be connected in this mode.
AP Bridge-Point to
Multi-Point
Establishes a wireless connection with other
wireless access points using the same mode, and
links any wired networks connected to these
wireless access points together. Up to 4 access
points can be connected in this mode.
AP Bridge-WDS
This mode is similar to “AP Bridge to Multi-Point”,
but the device is not in bridge-dedicated mode, and
will be able to accept wireless clients while the
device is working as a wireless bridge.
Universal Repeater
The device will act as a wireless range extender

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
