Edimax EW-7416APn v2 User Manual

15

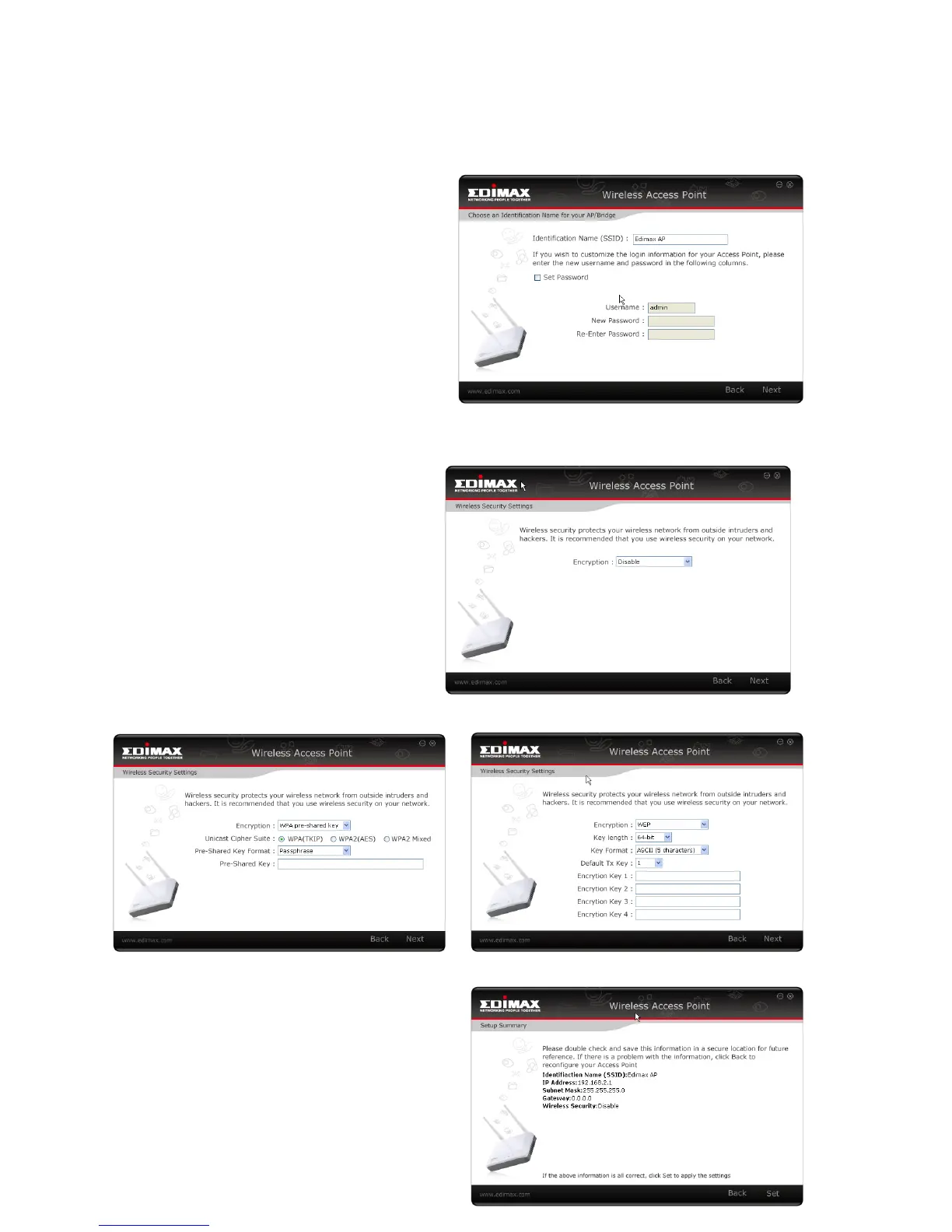

II-2-1. Access Point Mode
1. Select Access Point Mode and click “Next”.
2. You will be prompted to set the
SSID of this access point. The
SSID will be the name of the
access point when you connect
to it wirelessly. The default SSID
is Edimax AP. This page also
offers the option to change the
password used to access the
device’s configuration settings.
For first time setup, please simply click “Next” without changing anything.
3. You will now be prompted to
set up a wireless encryption
password. You have the option
of using no security encryption,
or selecting the WEP or WPA
pre-shared key encryption
schemes. It is recommended
that you set up an encryption
method, though, for security
reasons.
4. You will see a final confirmation
screen, listing the settings you
have selected. If everything is
correct, click “Set” to continue.

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
