Edimax EW-7416APn v2 User Manual

27
LAN Configuration
IP Address
Displays the IP address of the access point.
Subnet Mask
Displays the subnet mask of the IP address.
Default Gateway
Displays the IP address of the default gateway.
MAC Address
Displays the MAC address of the Access Point.
III-2. Basic Settings

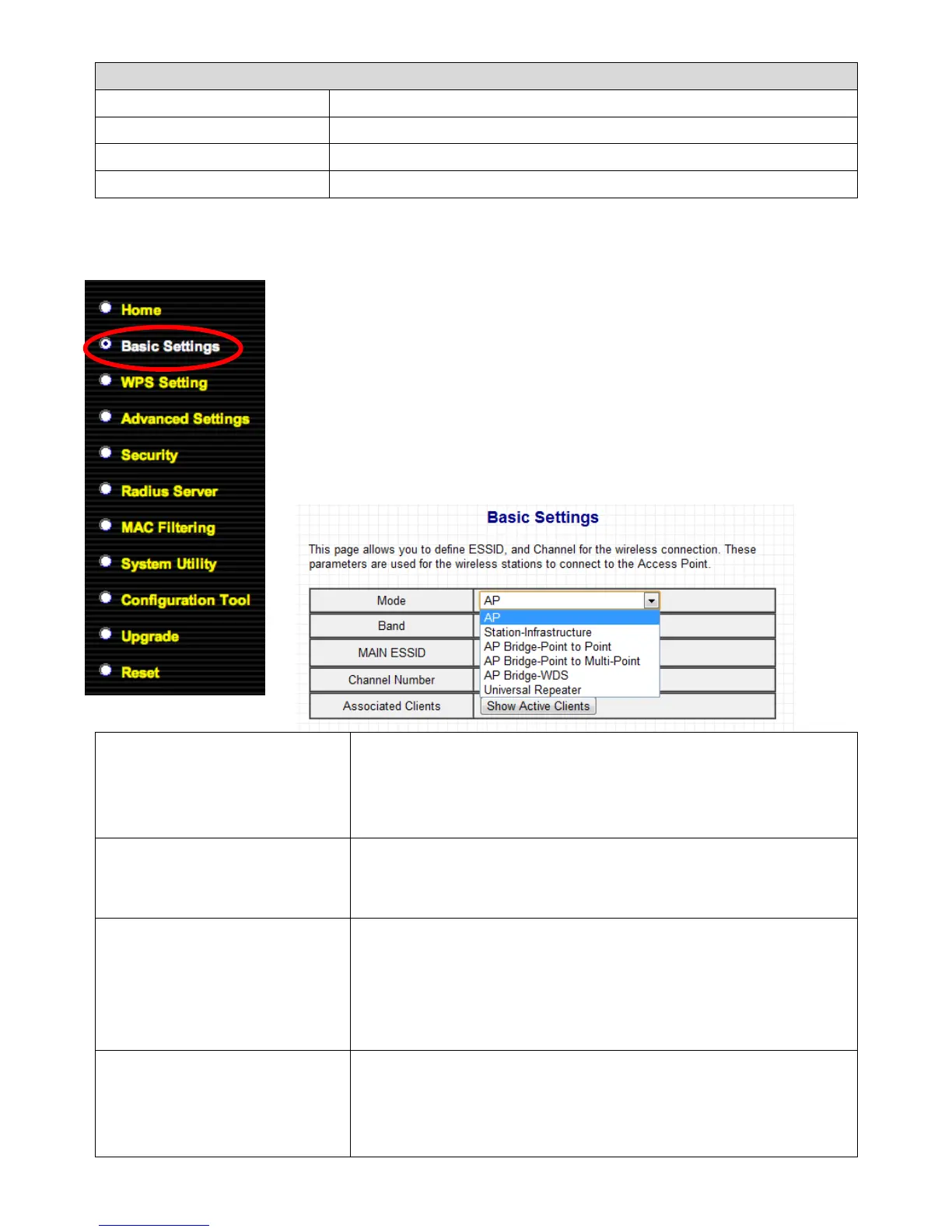

“Basic Settings” allows you to set the access point to any of
several different modes and configure the settings
accordingly.
Open the drop down menu labeled “Mode” and select from
the 6 available modes:
The available modes are:
AP
The device acts as a wireless “access point” to a
wired Ethernet network. Wireless clients can
connect to this device and exchange data with
devices connected to the wired network.
Station-Infrastructure
Also known as wireless client mode. Enables
Ethernet-only devices such as smart TVs and game
consoles to connect to a wireless network.
AP Bridge-Point to Point
Establishes a wireless connection with another
wireless access point using the same mode, and
links any wired networks connected to these two
wireless access points together. Only one access
point can be connected in this mode.
AP Bridge-Point to
Multi-Point
Establishes a wireless connection with other
wireless access points using the same mode, and
links any wired networks connected to these
wireless access points together. Up to 4 access

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
