Edimax EW-7416APn v2 User Manual

36

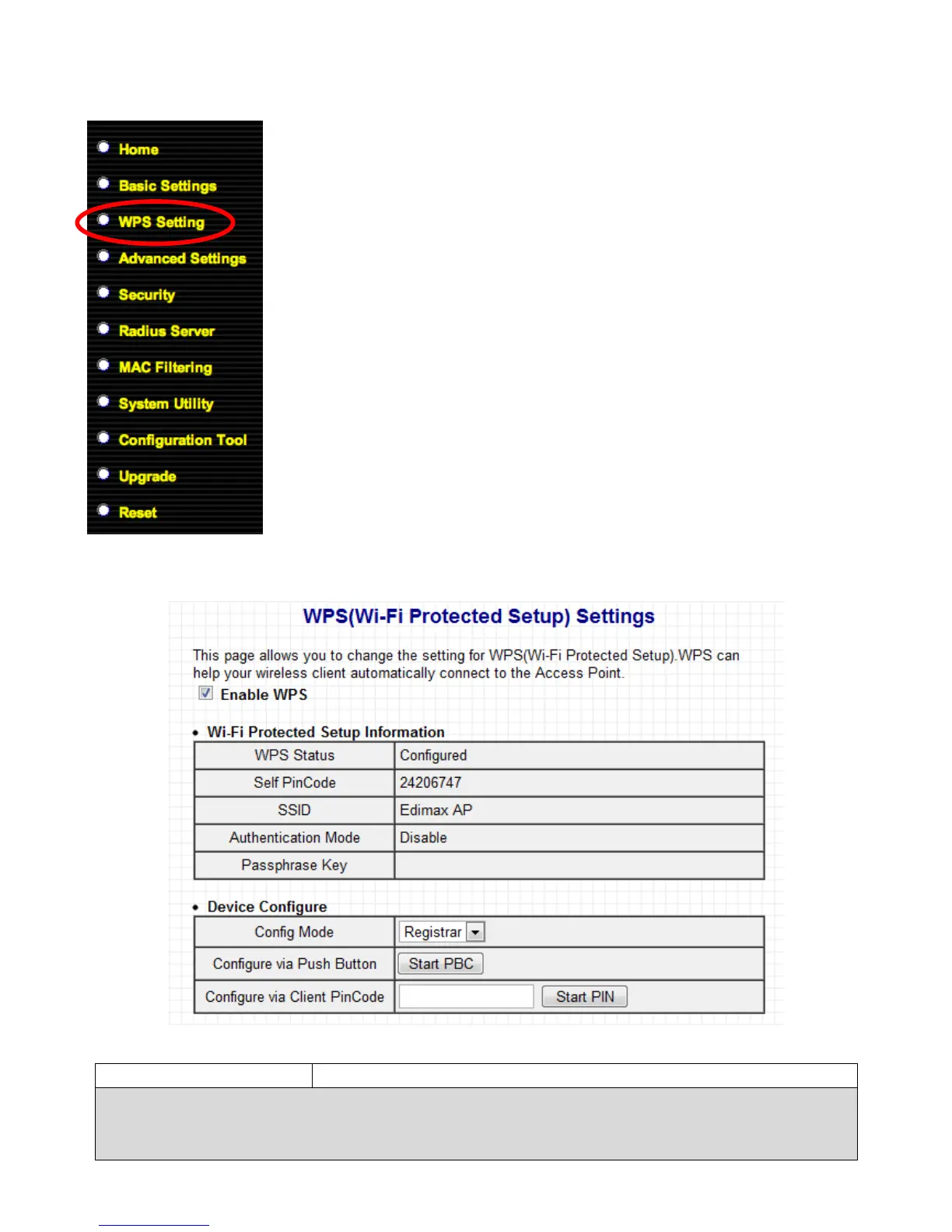

III-3. WPS Setting
WPS (Wi-Fi Protected Setup) is a simple way to establish
connections between WPS compatible devices. WPS devices
feature a WPS function which can be activated by pushing a
WPS button on the device or from within the device’s
firmware/configuration interface. When WPS is activated in
the correct manner and at the correct time for two
compatible devices, they will automatically connect.
The access point supports two types of WPS for wireless
clients: PBC (Push Button Configuration) and PIN code. For
PBC you can activate WPS on the wireless extender by
pushing the WPS/Reset button on the access point or
clicking the “Start PBC” button on the screen.
PIN code setup varies slightly in that it requires you to
manually enter a PIN code into each device via the WPS
Settings before activating WPS.
Enable WPS
Check this box to enable or disable WPS.
Wi-Fi Protected Setup Information

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
