Edimax EW-7416APn v2 User Manual

35
Band
Select the wireless band you wish to use for the access
point: 802.11b, 802.11g, 802.11n or selected
combinations of each. Only wireless devices of the
same band or bands as you select will be able to
connect.
MAIN SSID
Specify an ESSID (the name used to identify the access
point) of up to up to 32 alphanumerical characters.
Please note that the ESSID is case sensitive.
Channel Number
Select a channel number for the access point. The
channel number must be the same as the other access
point you wish to connect to.
Associated Clients
Click the “Show Active Clients” button and a new
window will appear which displays information about
wireless clients connected to this access point. Click the
“Refresh” button in the new window to refresh the list.
Root AP SSID
Enter the SSID of the root access point/router here or
click the “Select Site Survey” button to select from a list
of available SSIDs.
Select Site Survey
Click the “Select Site Survey” button to display the
“Wireless Site Survey Table” which shows all available
Wi-Fi networks. Select which network the access point
will connect to (see below).

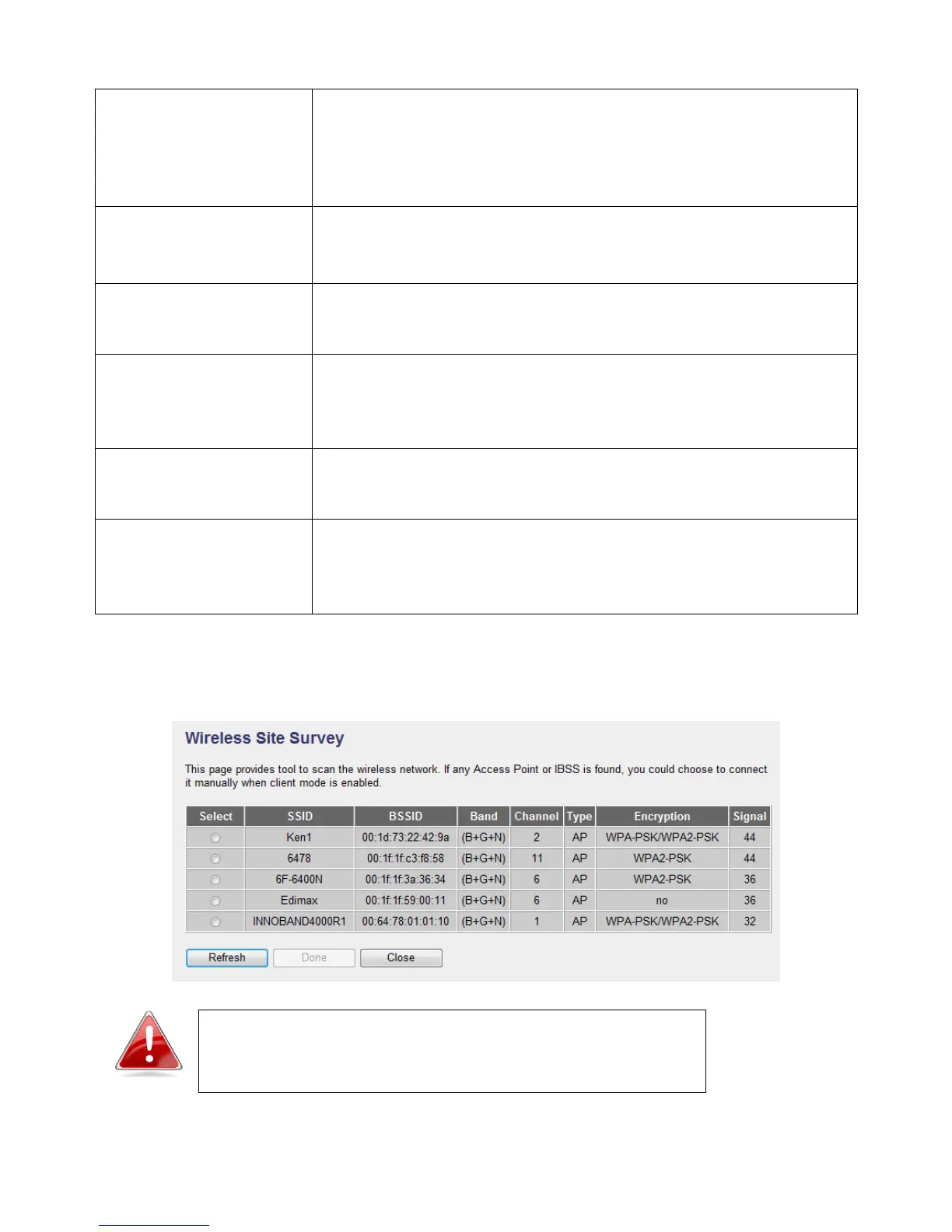

Wireless Site Survey
The “Wireless Site Survey Table” displays available Wi-Fi networks. Select one
and click “Done”.
Note: If the SSID of the access point you wish to
connect to is not listed, try clicking the “Refresh”
button.

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
