Edimax EW-7416APn v2 User Manual

5
I. Product Information
Thank you for purchasing an Edimax EW-7416APn V2/EW-7415PDn wireless
access point. This product provides wireless access to an existing wired
Ethernet network, at speeds of up to 300Mbps for 802.11n compatible
wireless devices.
I-1. Package Contents
Before you start using the access point, please check if there is anything
missing from the package, and contact your dealer to claim the missing
item(s):
- Wireless access point x 1
- CD (EZmax Setup Wizard, Multi-language Quick Installation Guide and User
Manual) x 1
- Power adapter x 1
- 3dBi antenna x 2
- Accessory kit x 1
- Quick installation guide x 1
I-2. Description

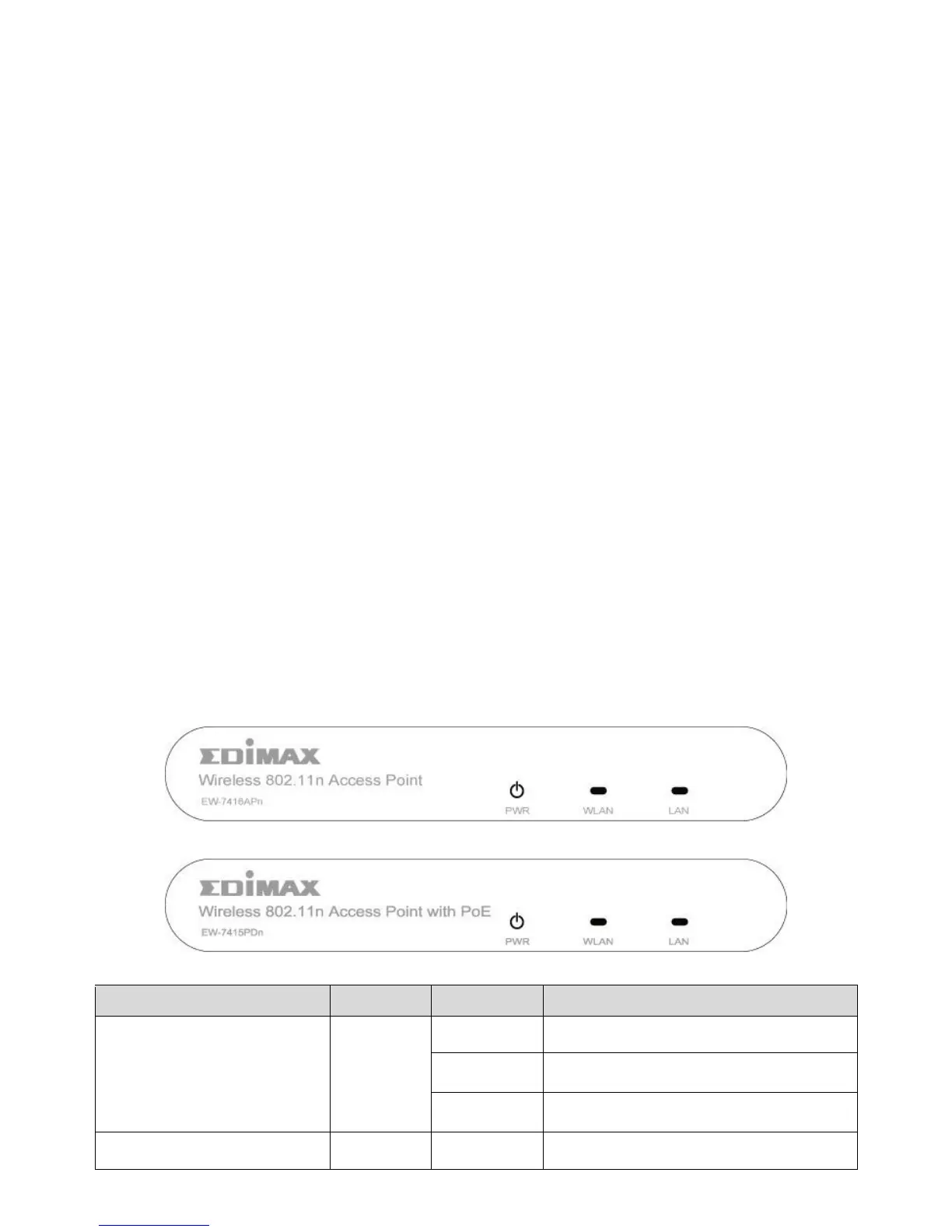

Front panel
Item
Color
Status
Description
PWR
(Power)
Green
On
Device is powered.
Flashing
Device is booting up/resetting.
Off
Device is not powered.
WLAN
Orange
On
WPS mode is enabled.

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
