Edimax EW-7416APn v2 User Manual

9

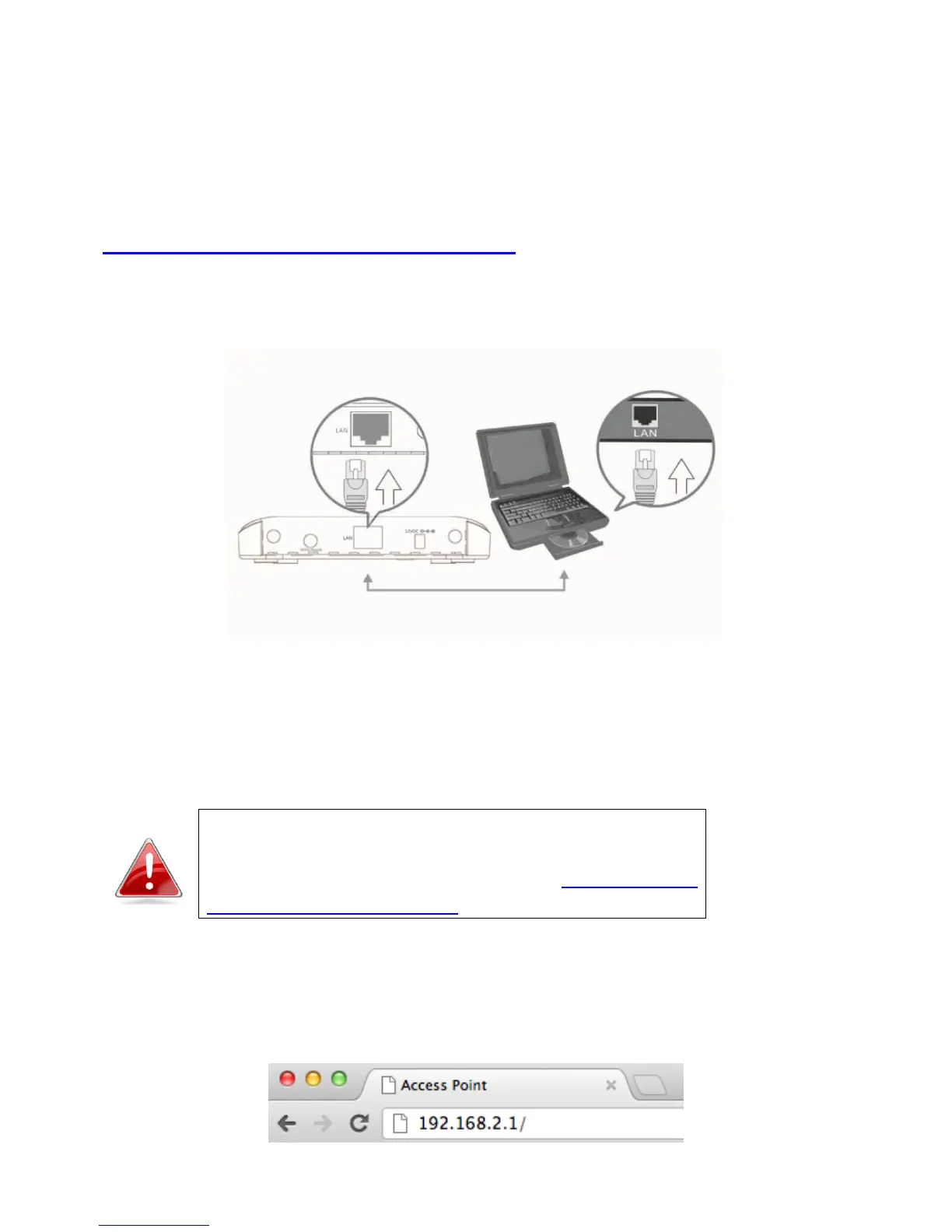

II. Quick Installation
Your wireless access point can be up and running in a matter of minutes.
If you need to make more detailed configurations after setup, you can refer to
III. Browser Based Configuration Interface.
1. Connect one end of an Ethernet cable to the Ethernet port on your
computer. Connect the other end to an Ethernet port on the access point.
2. Plug the power adapter into the device’s 5V power port, and plug the
adapter into a wall socket. The PWR LED should light up.
Refer to the following instructions appropriate for your operating system.
II-1. Mac
Note: You need to modify the IP address of your
computer before you can setup the access point. For
guidance on how to do this, please see Appendix IV-1.
Configuring your IP Address.
For Mac users it is necessary to configure the access point manually, using the
browser based configuration interface. Please open a web browser and enter
the access point’s default IP address “http://192.168.2.1” into the URL bar.

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
