Edimax EW-7416APn v2 User Manual

21
II-6. Hardware Installation
After configuring your device, you can install it in its final location.

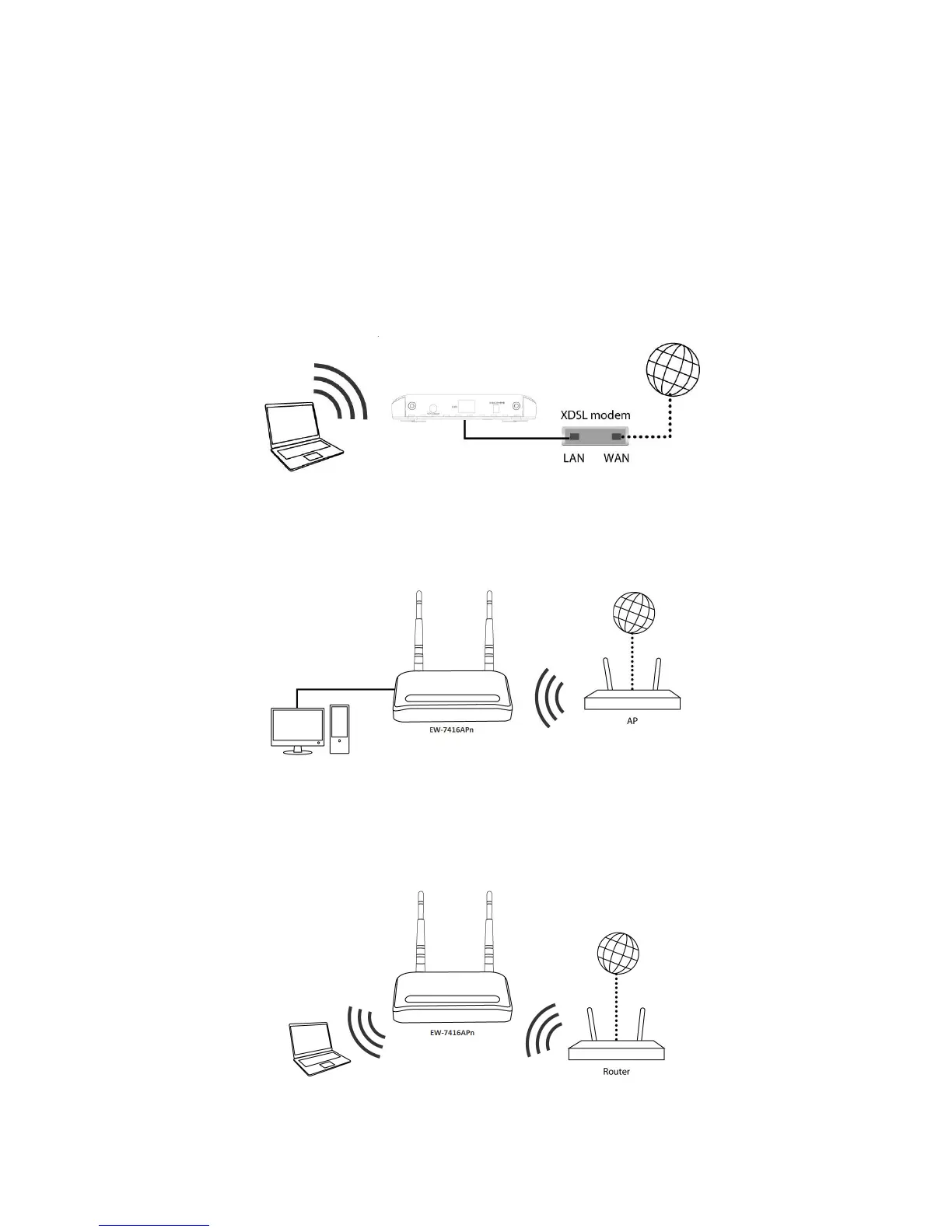

Access Point Mode
Connect one port of the device to your router or xDSL modem. You can now
connect to the device through a wired connection by connecting your
computer to it with an Ethernet cable, or connect to the device wirelessly by
searching and connecting to the device name you set up.
AP Client Mode
Connect one port of the device to the appliance you wish to connect to the
Internet wirelessly, such as a computer, game console, or smart TV.
Repeater Mode
Position the device in a location for optimal wireless extension, such as the
middle of your house. You can connect to the device wirelessly by searching
and connecting to the device name you set up.

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
