Edimax EW-7416APn v2 User Manual

75

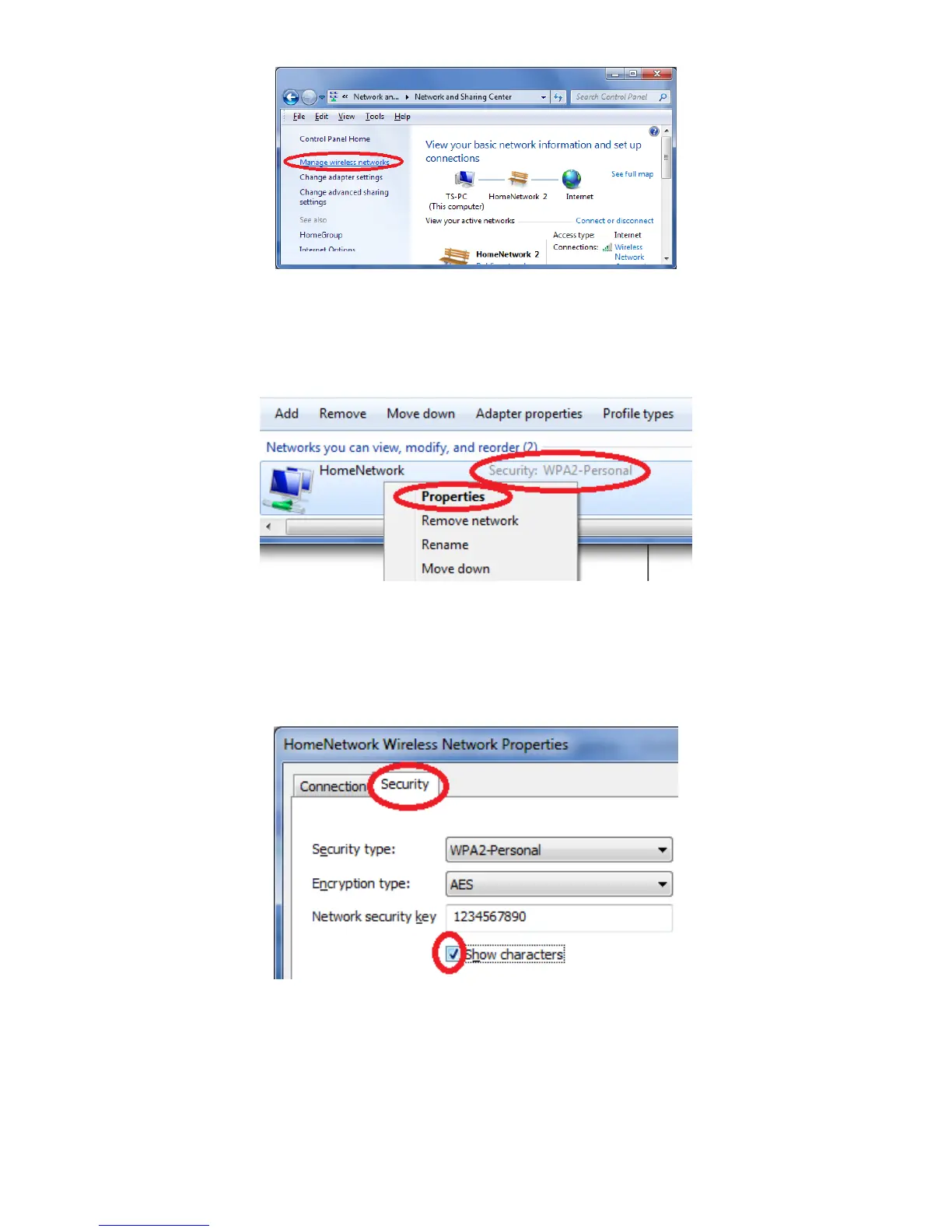

4. You should see the profile of your Wi-Fi network in the list. Right click on
your Wi-Fi network and then click on “Properties”.
5. Click on the “Security” tab, and then check the box labeled “Show
characters”. This will show your network security key. Click the “Cancel”
button to close the window.

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
