EDT EX-RAY - Universal Bracket Mount

Display Installation
14

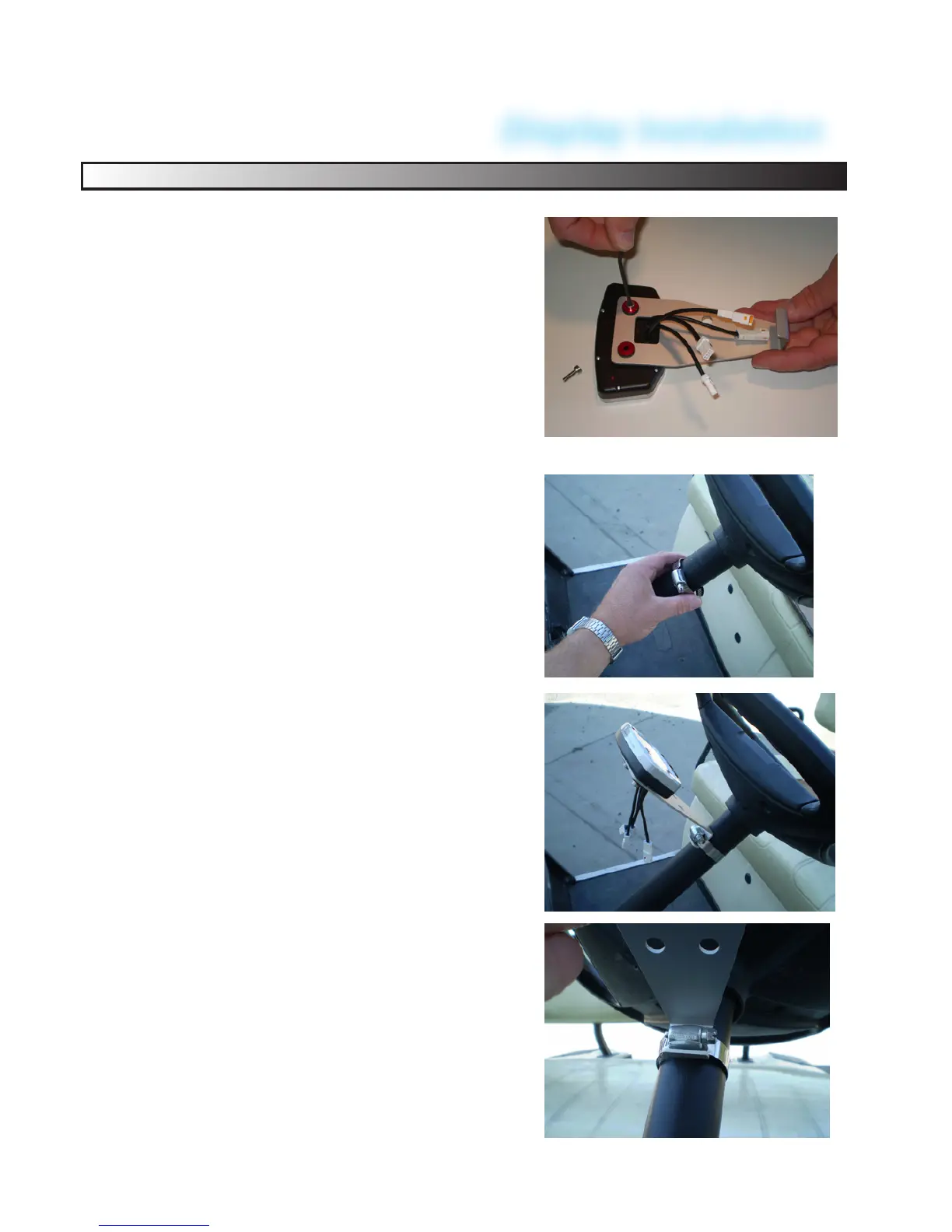

Universal Bracket Mount:
Lay a soft cloth on the work surface
and lay the display face down. In-
stall the Display using the two 4mm x
12mm Allen head screws.
Notice the red at back is the bump
stop, the screws will stop when fully
compressed. The RED FLAT BACK
is farthest away from the display.
> DO NOT OVER TIGHTEN!
Install the pipe clamp onto the steer-
ing column.
Position the display 6 inches
(150mm) behind the steering wheel,
about 1 inch (25mm) away from the
steering wheel mounting hub.
Hand tighten the clamp bolt until the
display no longer moves and aligned
straight.
