Wire Harness Protection:
The wires are routed along the
TOP of the steering column. A
optional protection tube cov-
ers the wires and offers a clean
installation look. EDT llc
MODEL: HDW800-006-CPT
Carefully attached all the con-
nectors. Make sure the fragile
wires are NOT STRESSED.
Leave a little slack. ** Use cable
ties to secure the wires to the
steering column.

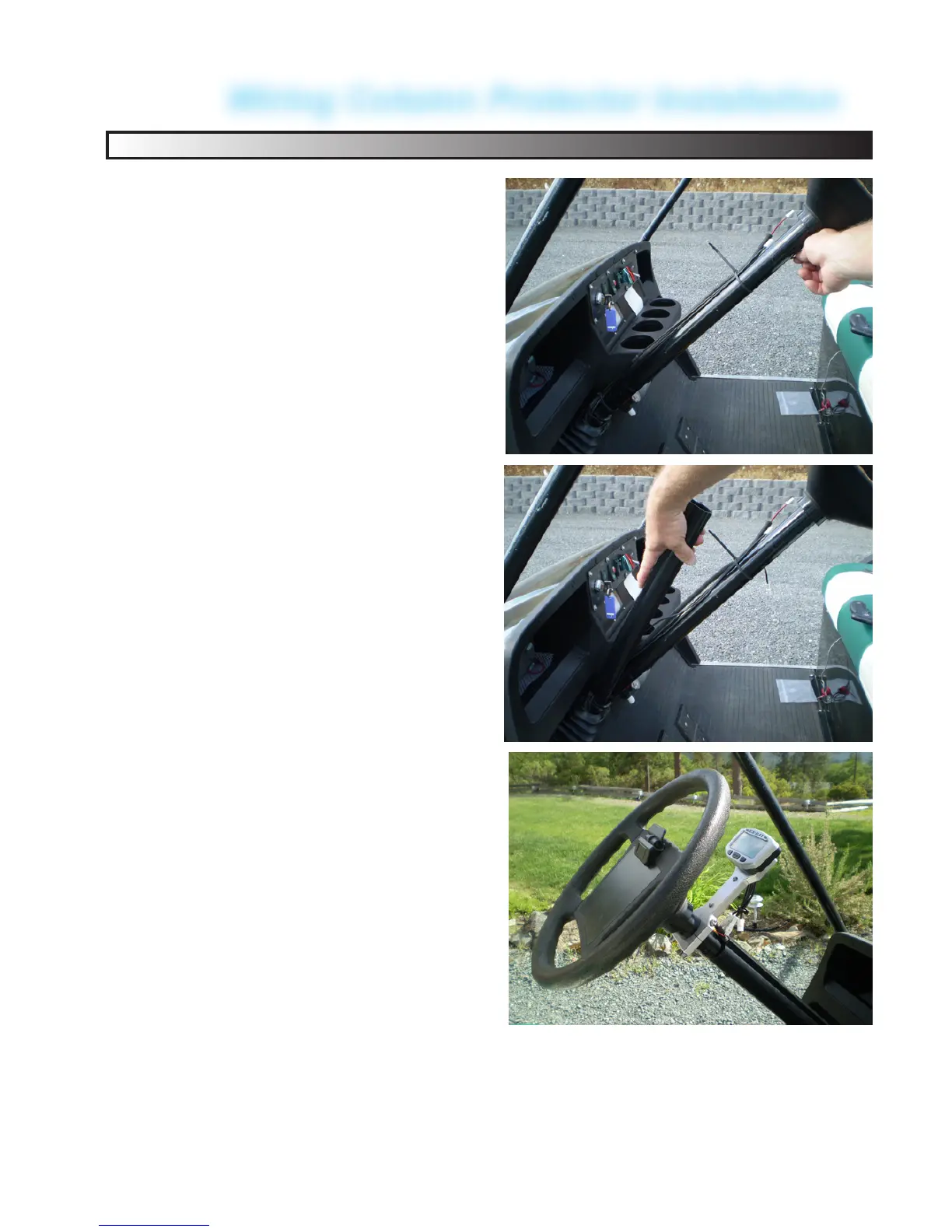

Snap the optional column protec-
tor in place, careful not to pinch
any wires. (Display removed for
clarity in this picture.
Installation Complete. (Optional
CNC machined bracket Model
EXRAY-MEZ shown)
Proceed to the SETUP PROCE-
DURE.
