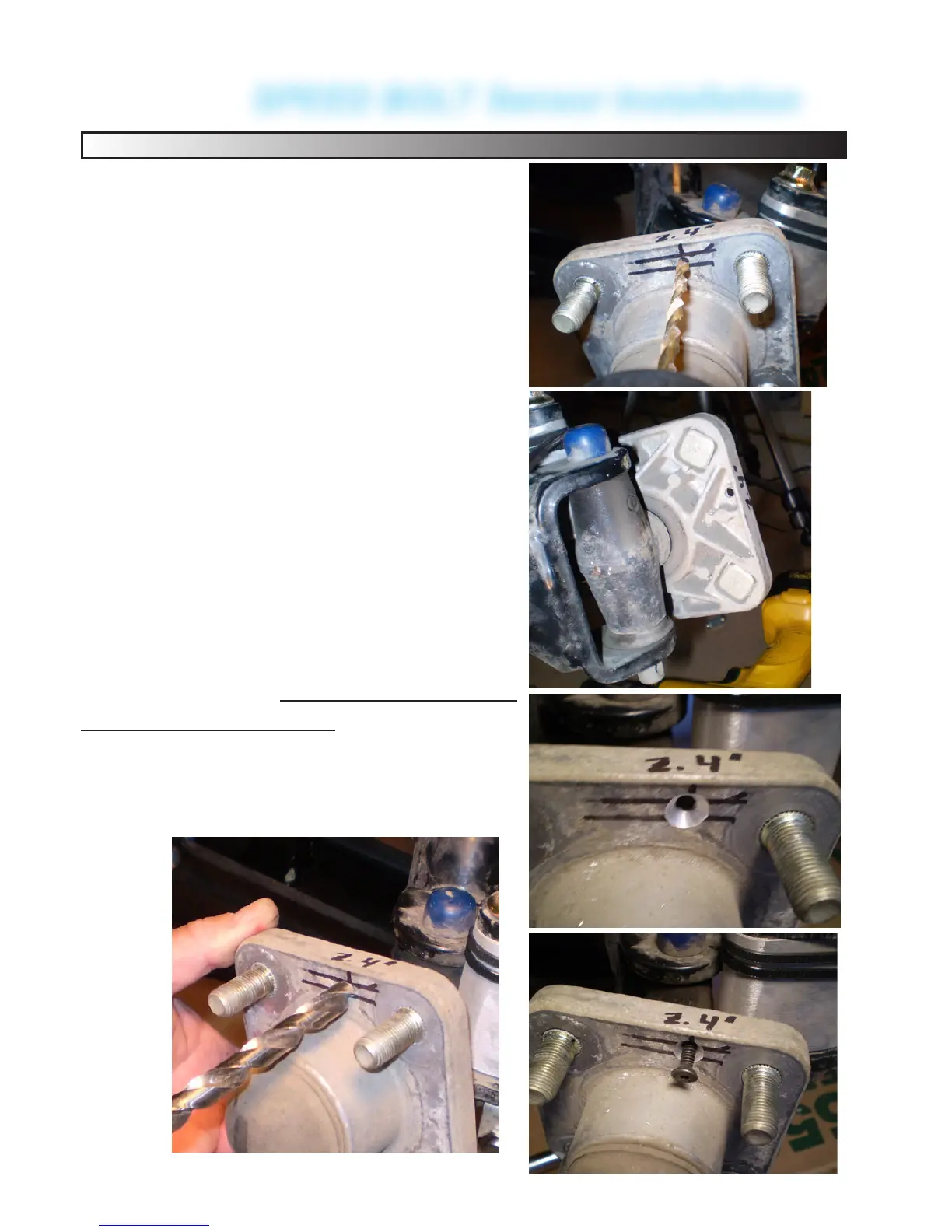

SPEED BOLT Sensor Installation
BOLT SENSOR -
YAMAHA G2-G22-DRIVE, EZGO
SHORT HUB AXLE Mount:
Use a 13/64” (5mm) Drill Bit (no larg-
er than 7/32” or 5.5mm) to drill a pilot
hole at 2.4” (61mm)from left edge -
drill BETWEEN THE LINES marked
earlier.
The objective is drill a hole be-
tween the ridges behind the hub as
shown.
See Below: The 10-24x1” (5mm)
mounting screw is a COUNTER-
SUNK, use a larger bit 13/32” (10mm)
or 7/16” (11mm) just deep enough to
countersink the screw.
DO NOT DRILL ALL THE WAY
THROUGH !
26
