EDT EX-RAY - Short Hub Axle Specific Installation

SPEED Sensor BOLT Installation
BOLT SENSOR -
YAMAHA G2-G22-DRIVE, EZGO
SHORT HUB AXLE Mount:
The short hub axles (with BLACK
bearing cap) have no room to mount
the 6mm magnet sensor with a clamp.
YAMAHA G2-G19 Shown
(YAMAHA G22-DRIVE Similar)
Either replace with aftermarket bear-
ing hubs - or use the “magnet exten-
sion bracket” and drill the bearing hub
as shown.

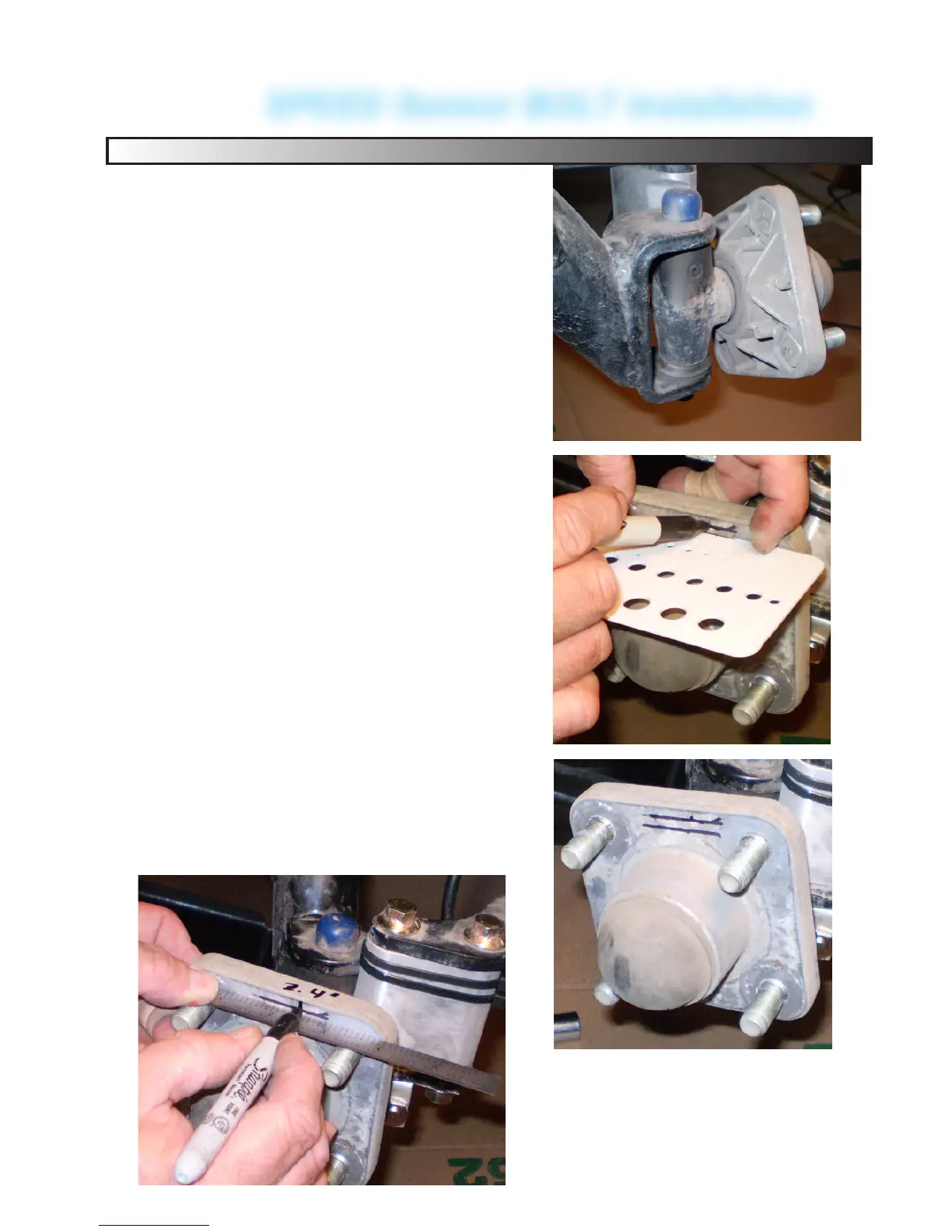

Use a drill guide (1/8” or 3.15mm thick
plastic), lay across the top wheel lugs,
draw a line using permanent market.
Mark top and bottom as shown.
Measure from the LEFT EDGE 2.4
inches (2-3/8” or 61mm) and mark the
hub. This will be the pilot hole.
25
Mark above and below
as shown.
