GAS ENGINE Temp Sensor Installation
GAS MOTOR:
Any bolt near the cylinder
head will provide good
indication. (Preferably a
mounting bolt that does
not require re-torquing the
head bolts).
CAUTION: THE CABLE
MUST NOT CONTACT
MUFFLER EXHAUST
COMPONENTS!
Secure the cable with
cable clamps. Watch for
CHAFFING points that
may damage the cable.
Follow the EXTENSION
CABLE guidelines to prop-
erly route the cable to the
display.

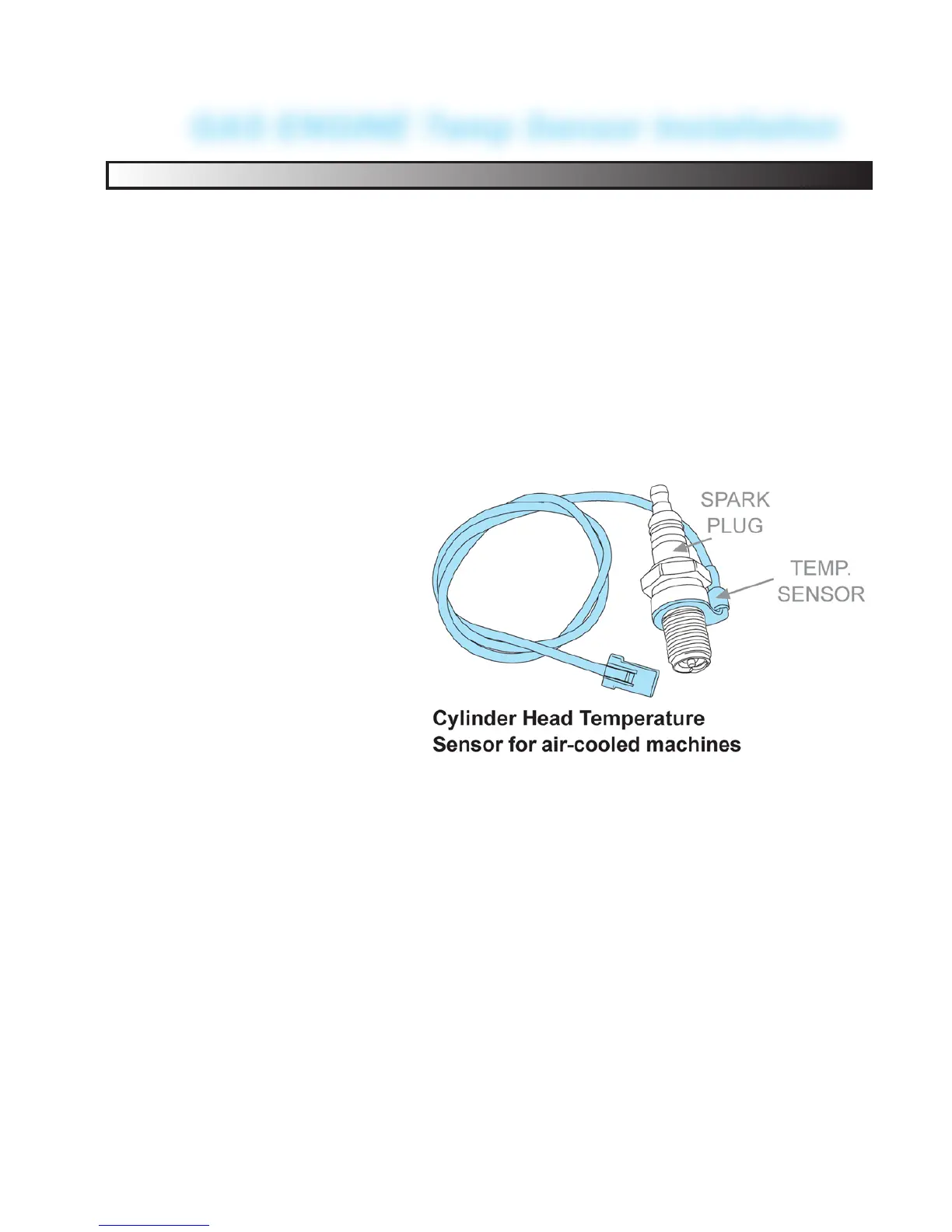

The Golf Cart gas engine Temp Sensor:
The typical installation is for Air Cooled engines. Cylinder
Head temperature is most critical. Oil temperature is also
a good indicator. Find a location that a bolt can safely be
removed and temp sensor can be installed.
19
