Overview
EX-RAY ™ Digital Speedometer:

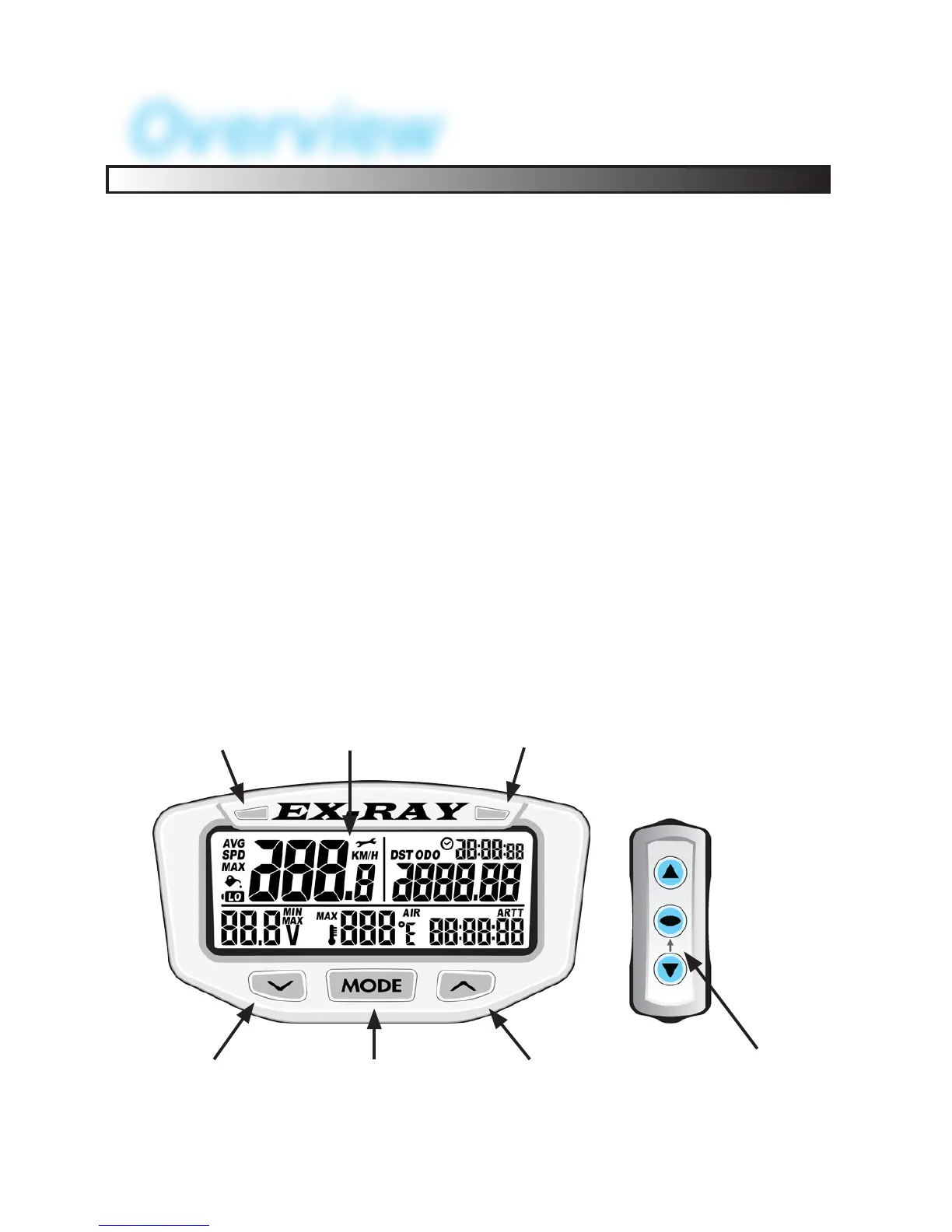

Main Display:
• The display panel includes 3-user buttons, 2-warning
LED’s, and the LCD screen.
LED’s:
• Amber LED: Lights for temperature warning alert
(SOLID), Battery LOW Warning (FLASH).
• Red LED: Lights for over-temperature alert (SOLID)
and Battery LOW DANGER (FLASH).
Remote Switch (optional):
• The optional remote switch (sold separately) may be
required when access to the display buttons is not pos-
sible. Contact EDT llc for more information. (This is not a
standard option and special order only)
8
UP
MODE
DOWN
Small arrow
faces UP
Remote
Switch
Amber
LED
Red
LED
LCD
Screen
DOWN Left
Button
UP Right
Button
MODE Center
Button
