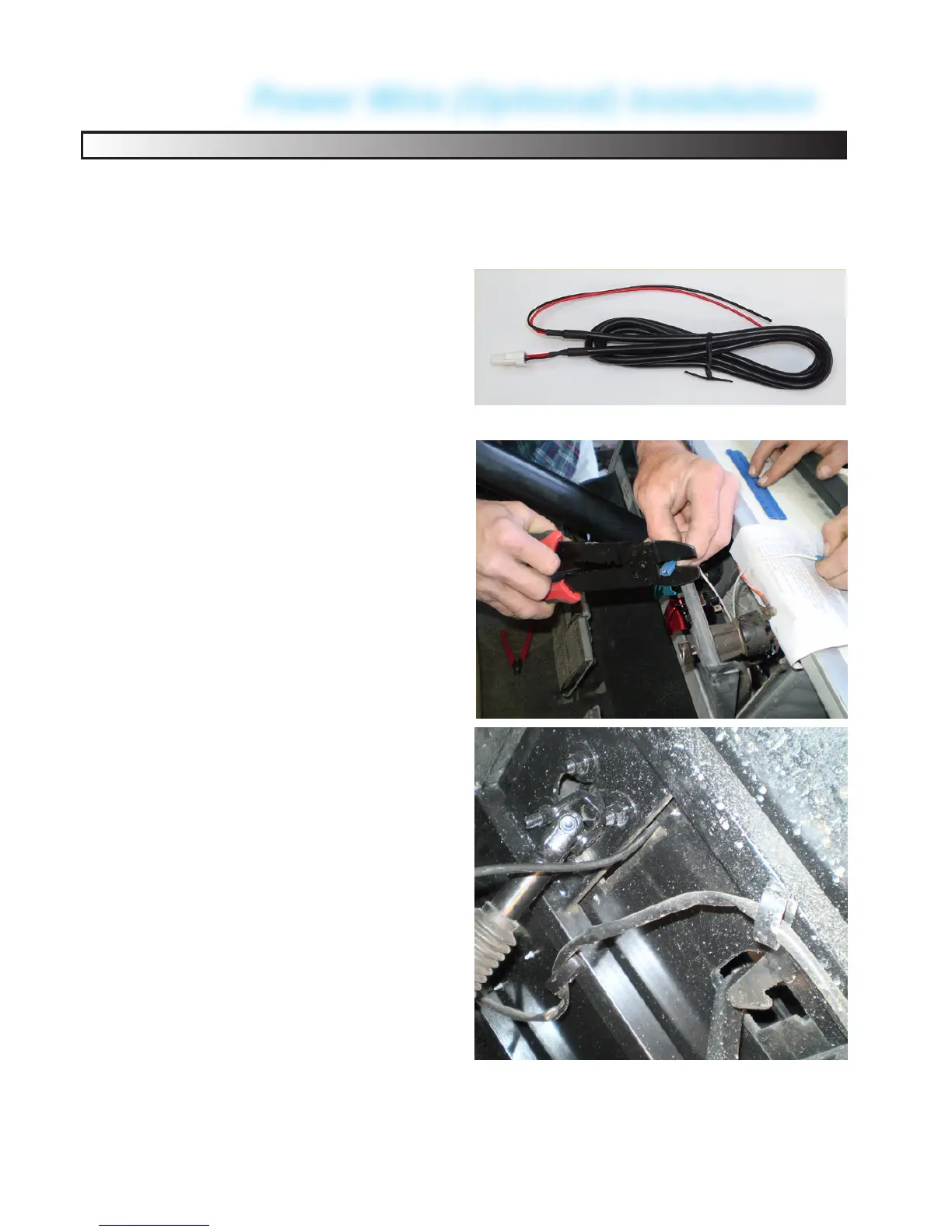

Power Wire (Optional) Installation
EXTERNAL POWER WIRES:
The external power cable KIT-
EXRAY-PWR provides power to
the backlight and two warning
LED. The supplied wire must be
connected to a FUSED 12-48
VOLT CIRCUIT. (Cable assem-
bly may vary from photo).
This circuit is best connected
to the KEY SWITCHED power,
when turned off disables the
display. However, display will
automatically turn off after 20
minutes of no activity if con-
nected to a live circuit. Ring
and Faston jumper terminals are
included in your kit.
Route the cable through to the
dashboard described earlier and
connect to a FUSED 12-48 Volt
DC circuit.
CAUTION: THE CABLE MUST
NOT CONTACT THE MOVING
STEERING KNUCKLE!
38
