Parts and Features
9

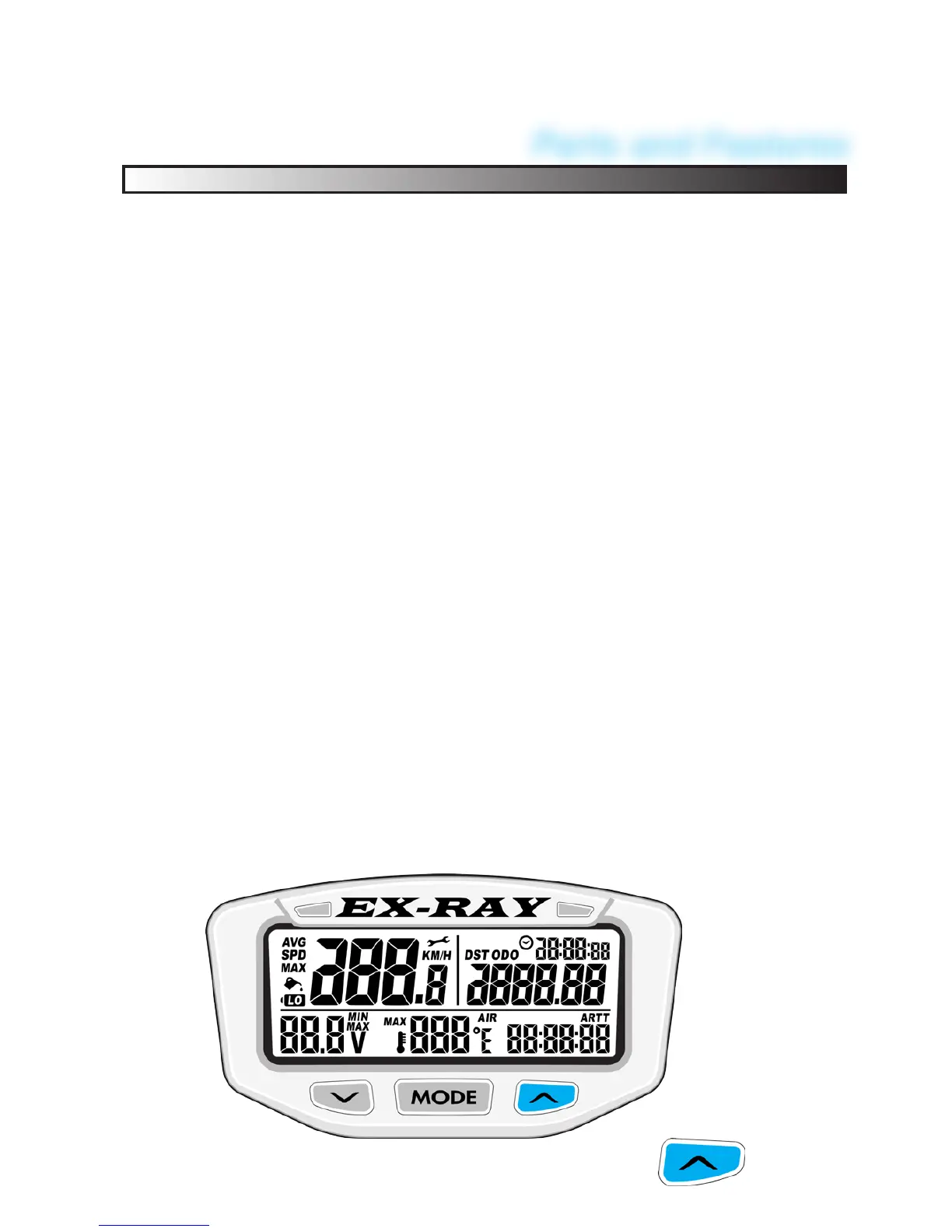

TO ACTIVATE BACKLIGHT MANUALLY PRESS
Display Backlight:
EX-RAY is equipped with a backlight for easy viewing during
night time operation.
Using External 12V Power:
• Display Backlight will light up with all ve backlight LED’s
• EX-RAY will remain lit as long as it senses wheel move-
ment. After 20 minute of inactivity, EX-RAY shuts off
the backlight. Press any button, roll the wheels, turn on
key switch (electric golf cars) or start the engine (gas golf
cars) and EX-RAY will light up again
• Amber and Red LED’s enabled (Shift or temperature)
Using Internal Batteries Only:
• EX-RAY will only stay lit for 3 seconds
• EX-RAY backlight will light up with 10% power to conserve
the internal battery power.
• If the LO symbol is present, the backlight will not turn
on. The LO symbol appears when battery voltage drops
below 2.45V
• If ambient temperature is cold (below -5°C, 23°F) the
backlight will not turn on.
To Next Page
