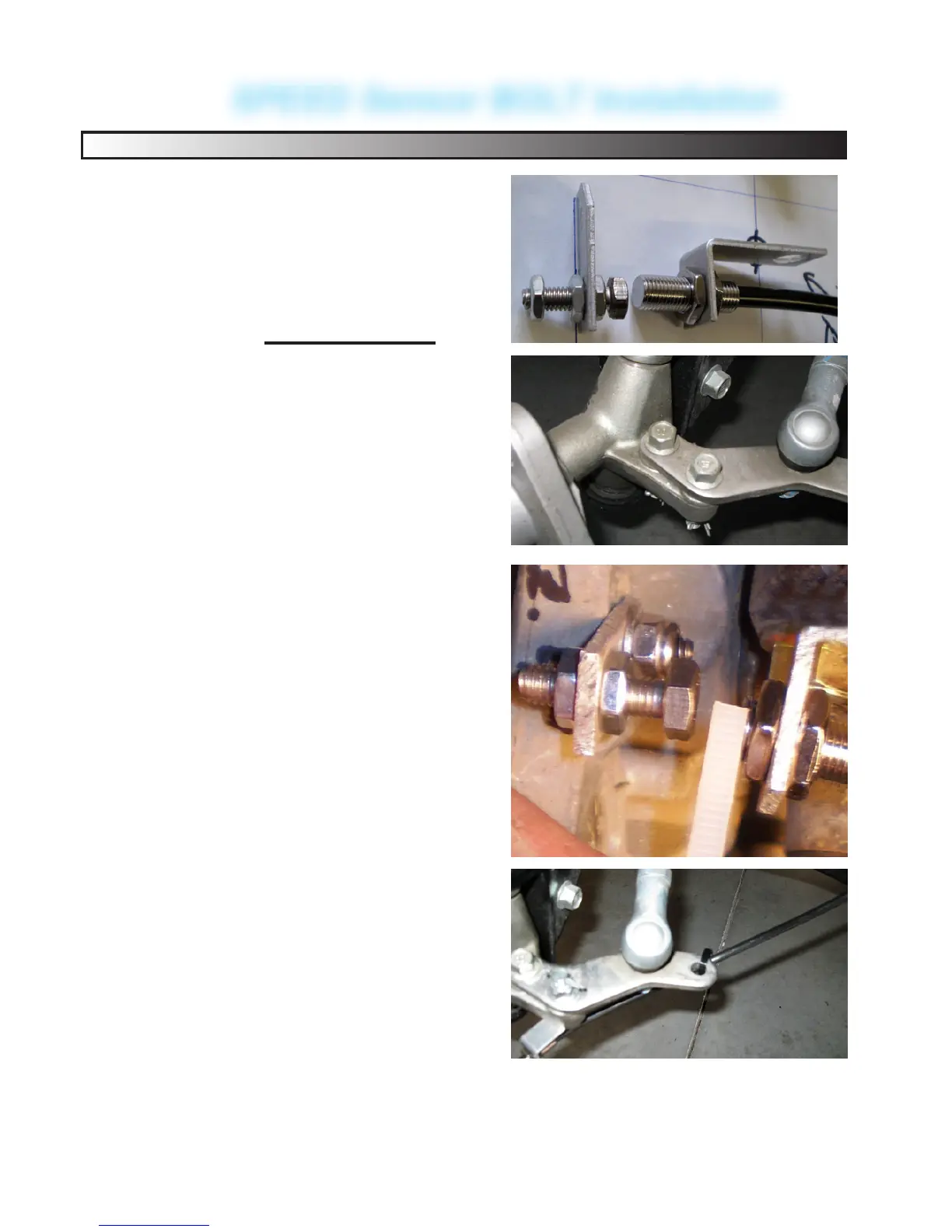

SPEED Sensor BOLT Installation
30
BOLT SENSOR - LONG
YAMAHA G22-DRIVE LONG AXLE
SENSOR Mount:
Locate the LONG 90° TAB bracket
YAM G22-YDR as shown
YAM G2-G19 See Page 29
Mount the Speed Sensor 10mm
BOLT with two jam nuts onto the
bracket, move the speed sensor so
3/4” protrudes as shown.
Mount the bracket to the REAR
WARD bolt on the steering knuckle.
as shown (LIFTED cart with spacer
block similar). Re-tighten the bolt to
OEM Specications.
Adjust BOTH 6mm Magnet and
10mm Speed Sensor for 1/4”
(6 to 7mm) gap (the width of cable
tie sideways).
SLOWLY rotate the hub and
check for any interference that
could damage the 6mm mag-
net or Sensor with at least 1/4”
(6 to 7mm) space between ANY
object. Gap assumes the carts
bearings are in good working or-
der.
(Photos Courtesy of Customer
Install, 2010 YDRA, JS of Florida)
Use 2 Zip ties
to steering arm,
go to next page...
