Appendix A: System addressing
52 P/N 3102309-EN • REV 001 • ISS 18JUL19

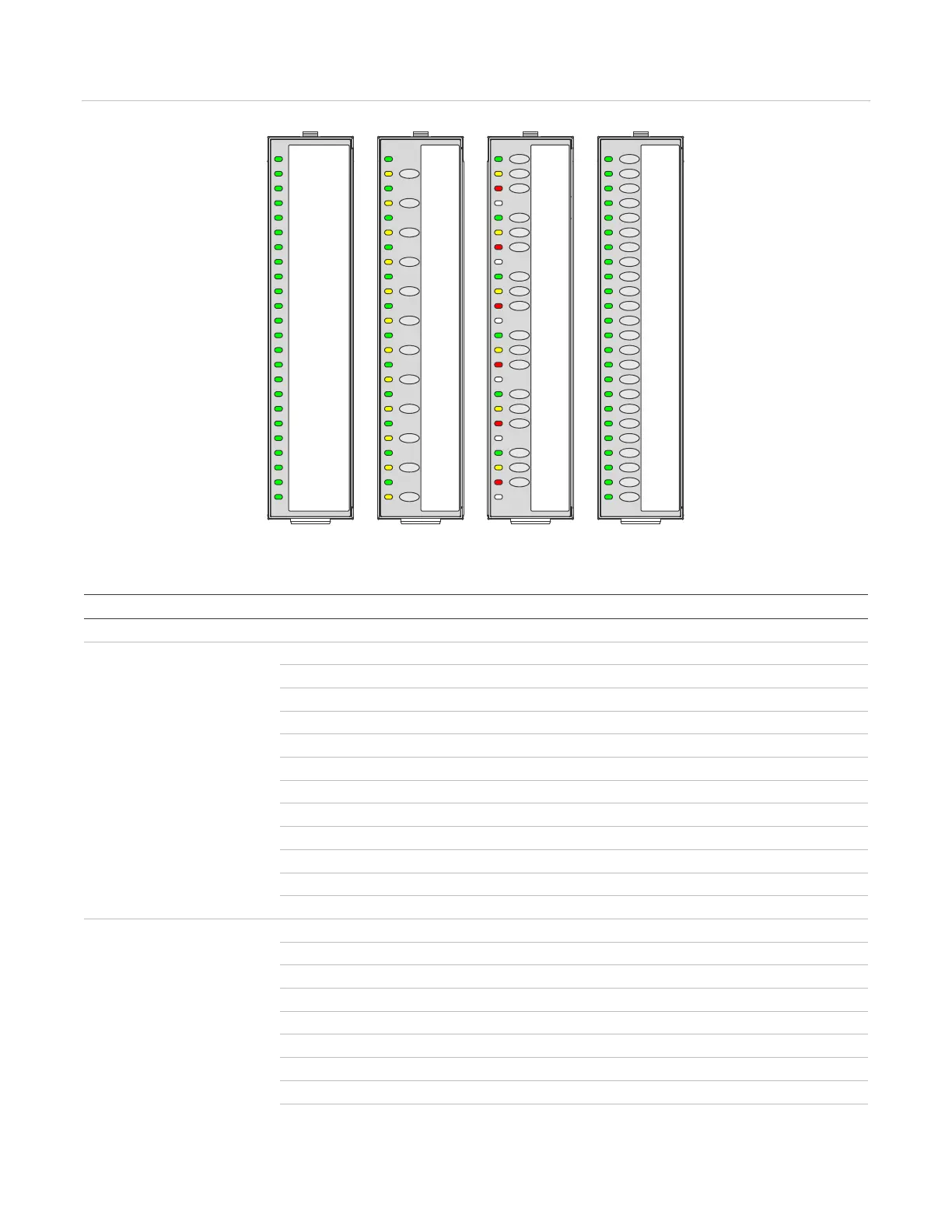

Figure 15: EST4 operator layer control-display modules
Table 14: EST4 operator layer control-display addresses
Module type
Switch group Switch address Indicator address
4
-24L N/A N/A 0129 to 0152
4
-24L12S 1 0002 0129 to 0130
2 0004 0131 to 0132
3 0006 0133 to 0134
4 0008 0135 to 0136
5 0010 0137 to 0138
6 0012 0139 to 0140
7 0014 0141 to 0142
8 0016 0143 to 0144
9 0018 0145 to 0146
10 0020 0147 to 0148
11 0022 0149 to 0150
12 0024 0151 to 0152
4
-24L18S 1 0001 0129
2 0002 0130
3 0003 0131
– – 0132
4 0005 0133
5 0006 0134
6 0007 0135
– – 0136
4-24L 4-24L12S 4-24L18S 4-24L24S
