Edwards T-STATION 85

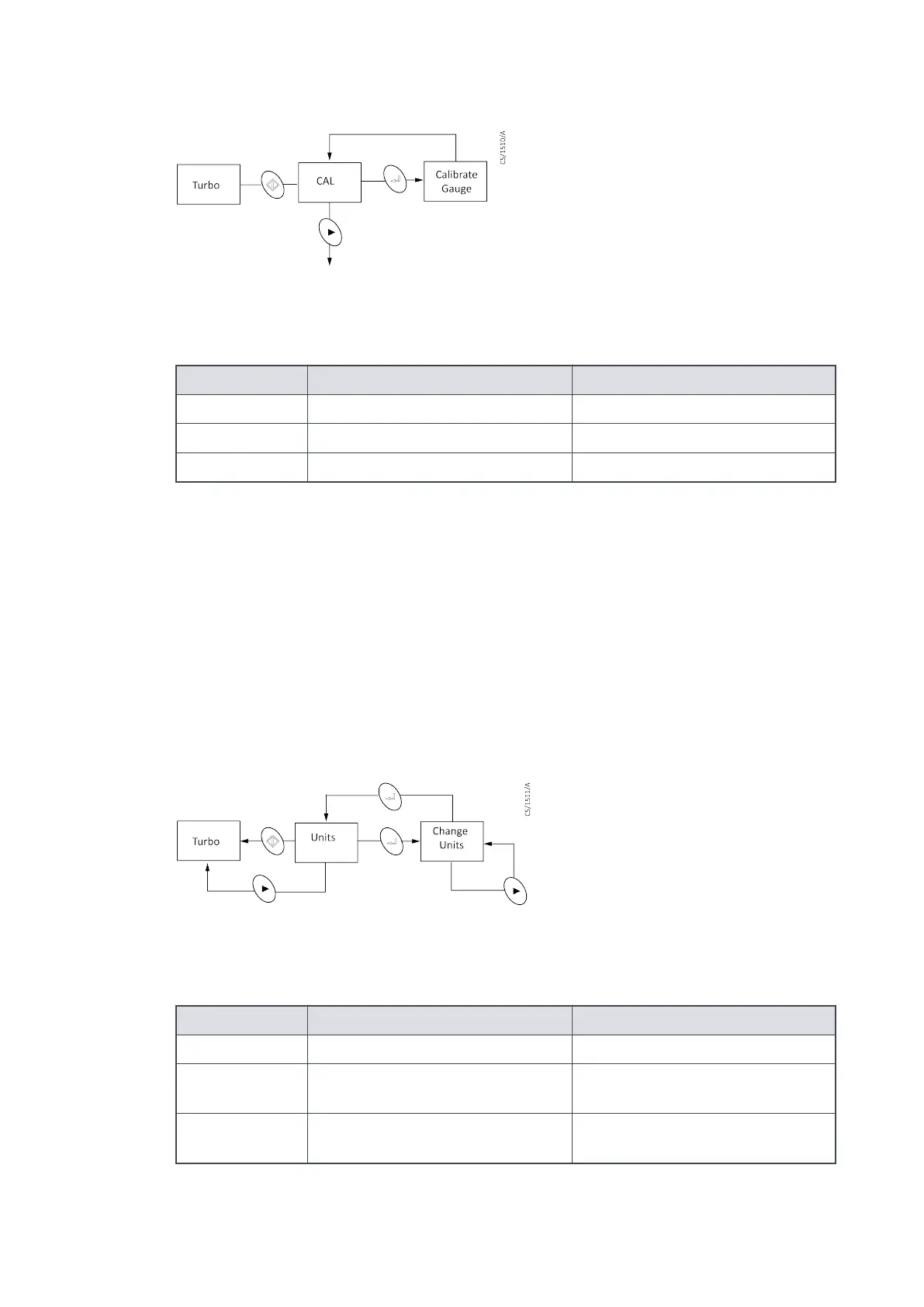

Figure 10
Calibrate gauge screen
Calibrate gauge screen key acons
Table 9
Calibrate gauge screen key acons
Keys Short press Long press
START Go to turbo screen -
ENTER Calibrate gauge -
NEXT Go to units screen Scroll through menu screens
Units screen
When the units scr
een is selected, the menu LEDs are unlit and the currently selected units LED
is lit. The numeric display is blank.
To change the units press the ENTER key and use the NEXT key to choose between mbar, Torr,
Pa and voltage. Press the ENTER key again to conrm the selecon. Note that when voltage is
select
ed the display shows " 0.000".
When the units are changed, the setpoint values will be converted to the new units. For
example, if a setpoint threshold is entered as 1.0 x 10
-3
mbar and the units are changed to
Torr, then the value will be displayed as 7.5 x 10
-4
Torr.
Figure 11
Units screen
Units screen key acons
Table 10
Units screen key acons
Keys Short press Long press
START Go to turbo screen -
ENTER Enter edit mode, or conrm
selecon
-
NEXT Next units opon, or go to turbo
scr
een
Scroll through units in edit mode, or
scroll through menu screens
D395-94-880A - Operaon
Page 24
