Commissioning
7.4 System settings
SCD 19102 / SMD 19102
76 Instruction Manual, 10/2011, A5E01588521A-004
Note
Setting limit reached (applies to all settings in Force Mode!)
• Since the resolution and scanning frequency can only be set within limits, the "Force"
function must be carried out when the setting limit is reached in order to continue with
the setting process. In this manner, the slider for the setting range is again set in the
center.
It may be necessary to repeat this process several times!
Note

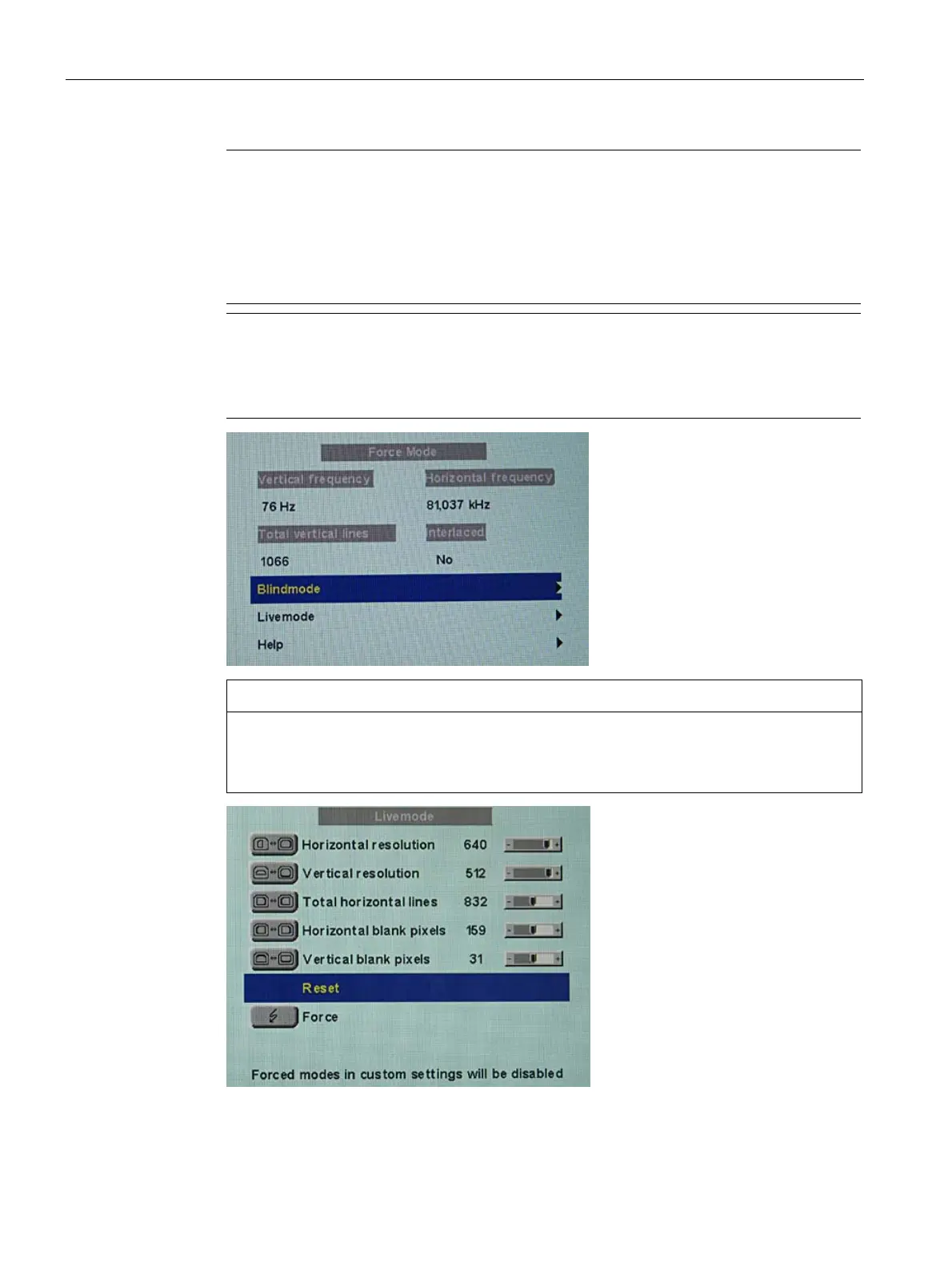

For progressive timings with an image refresh rate greater than 60 Hz, only the item "For
static pictures" or "Reset" can be selected in line 6 in the "Live mode" menu.
NOTICE
If the "Reset" setting is selected, all learned values are deactivated in the current
Force Mode window.
