ELAN HC4/HC8 INSTALLATION MANUAL
© ELAN 2010 | All rights reserved.
Page 25
IR Output Connections
The HC4 has two routable 3.5mm mono IR output ports, and the HC8 has three routable
3.5mm mono IR outputs.
These allow IR control of sources, shades, fans or any other IR controlled device. Use an
IR distribution block if additional IR ports are needed.
When used with 3
rd
party equipment, IR connections are made from the 3.5mm ports to
the devices to be controlled as shown in Figure 3-8.

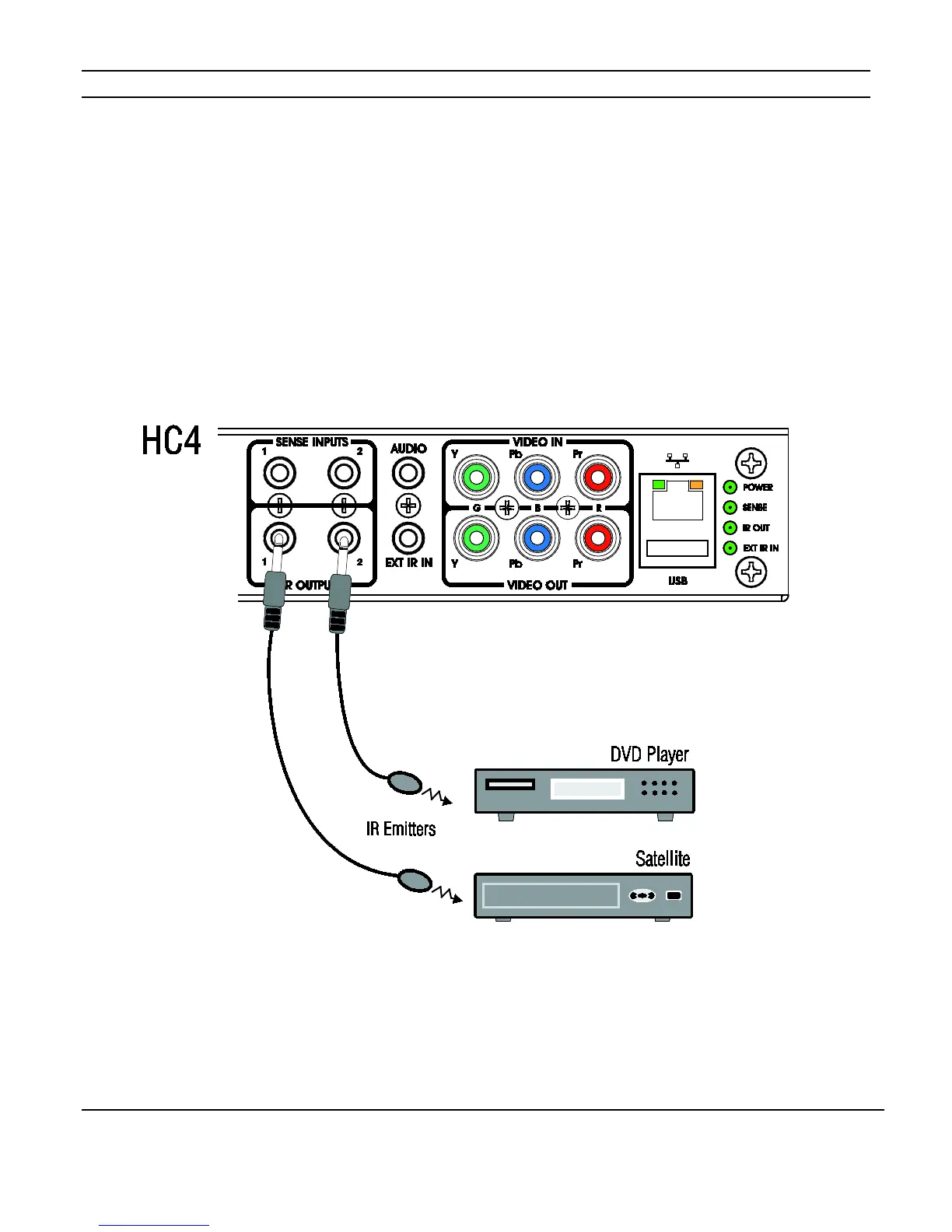

Figure 3-8: IR Outputs
