PPVN Precision Panel
The PPVN is used to connect TS2 touch pads and/or PPIR Precision Panels to the System
Controller. The PPVN provides power, VIANet connections and IR input for the TS2s and
power and IR connections for the PPIR panels. Each PPVN has 110 punch-downs for up
to 4 TS2s and/or PPIRs and comes with a 16VDC, 1.5 amp power supply. If multiple
PPVNs are being installed, use Cat5 to link the VIANet punch-downs together. Figure 5-11
shows the connections required. Note that the IR received by the IR receiver connected to
the # 3 connection is being converted to RS-232 data by the GC-IRE and the IR received by
the TS2 connected to the # 4 connection is going to the EXT IR IN port of the HC8.
Each PPVN requires a separate power supply.

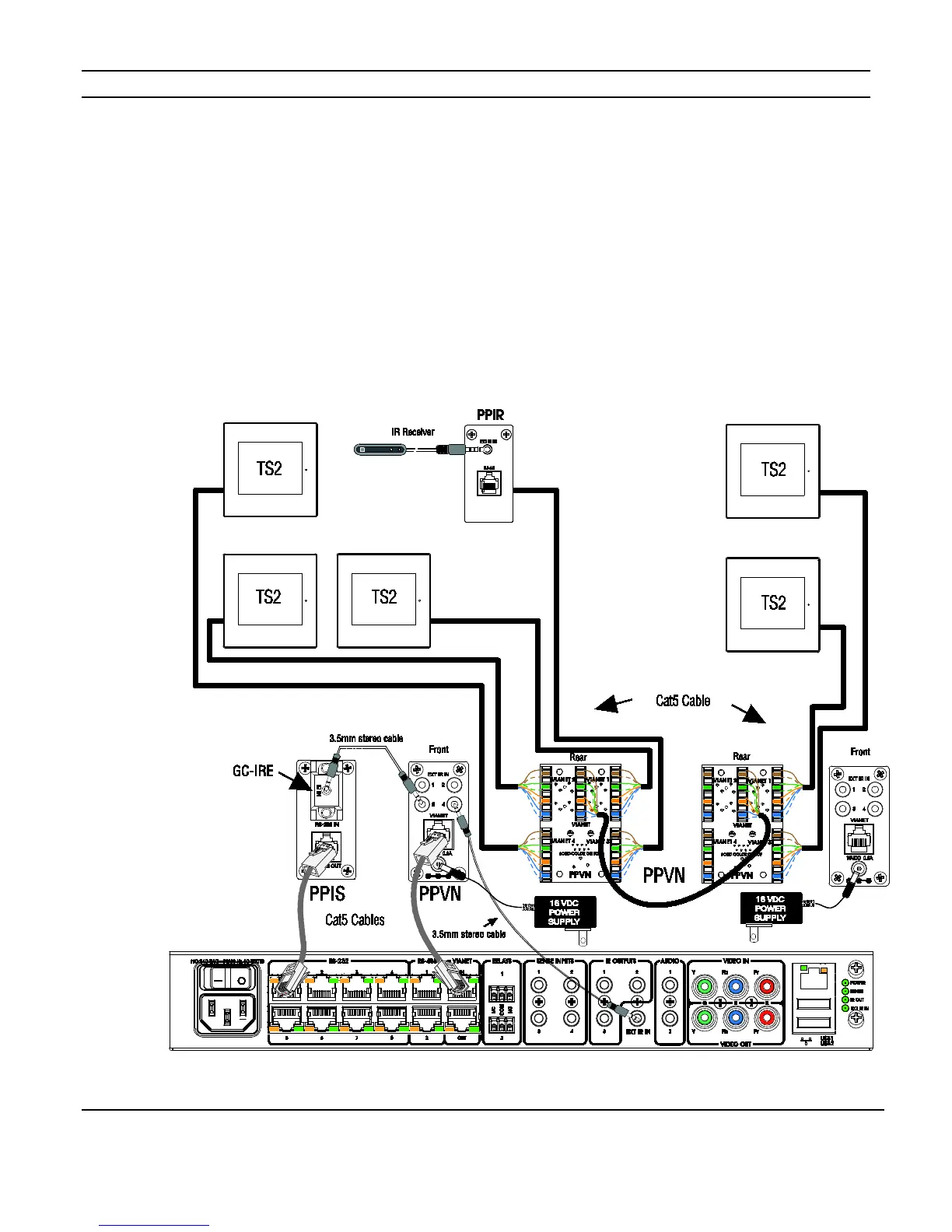

Figure 5-11: PPVN Connections
