PPCM Precision Panel (Continued)
VIANet Connections
VIANet provides communication between the HC4/HC8 and TS2 user interfaces and other
VIANet devices like the M86A. The PPCM has two VIANet connection points; the 110
punch down block and the RJ-45 port. Use the 110 punch down block to connect to PPVN
precision panels and the RJ-45 port to connect to the VIANet port of the system controller.
(Figure 5-6)

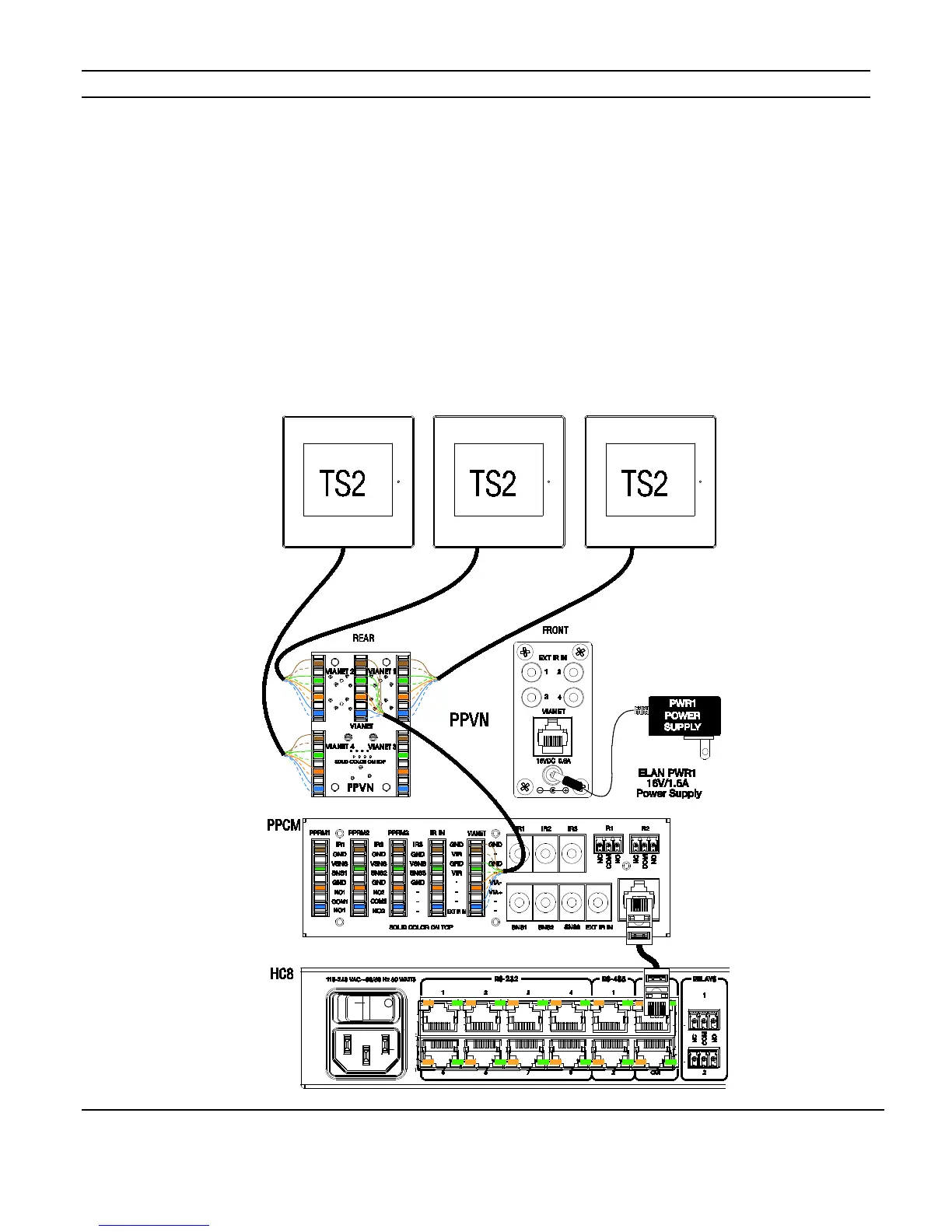

Figure 5-6: VIANet Connections
